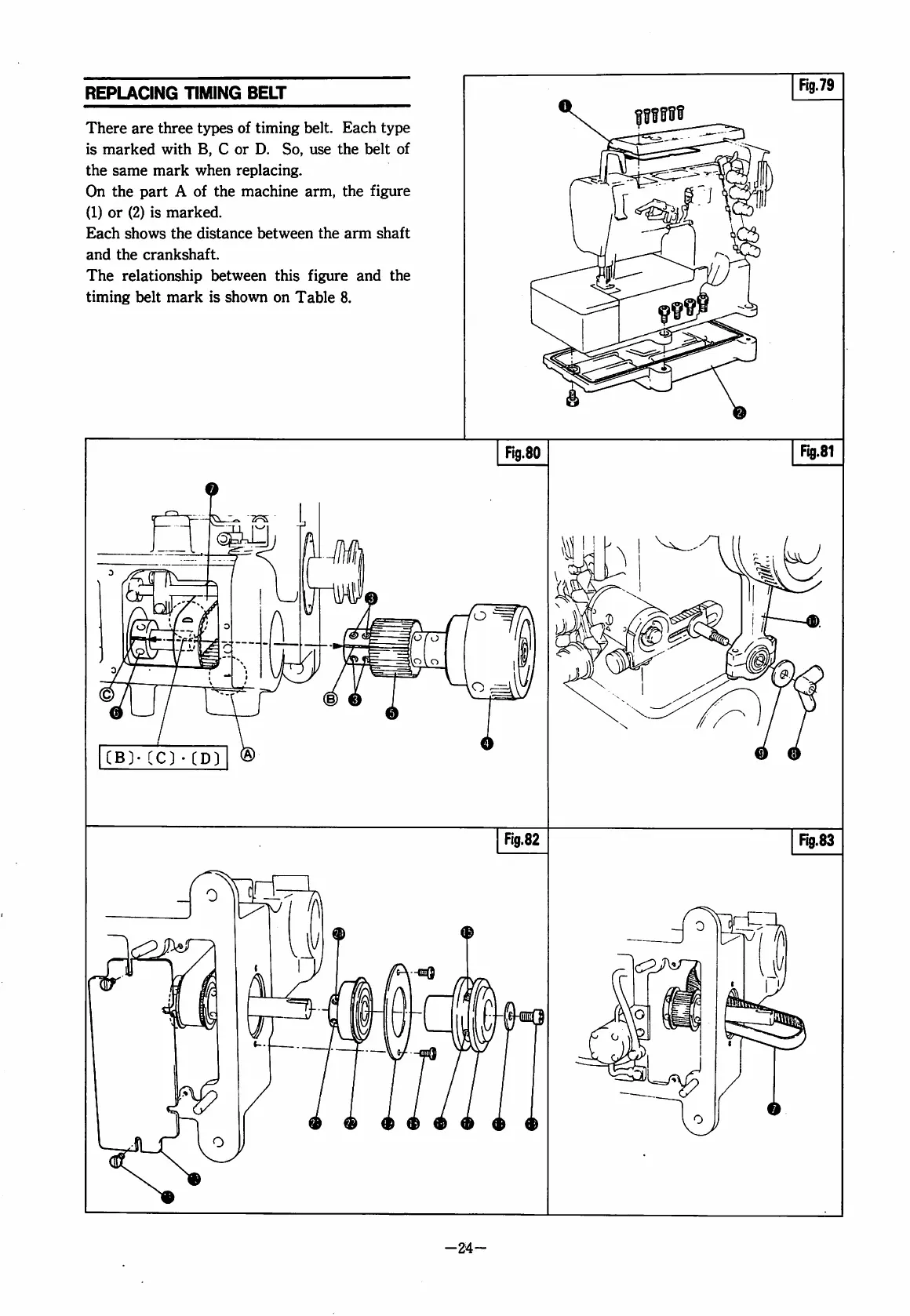

REPLACING TIMING BELT
There are three types of timing belt. Each type
is marked with B, C or D. So, use the belt of
the same mark when replacing.
On the part A of the machine arm, the figure
(1) or (2) is marked.
Each shows the distance between the arm shaft
and the crankshaft.
The relationship between this figure and the
timing belt mark is shown on Table 8.
Fig.79
Flg.80
br-
CB> CO . CD]
Rg.81
Rg.82
F^.83
