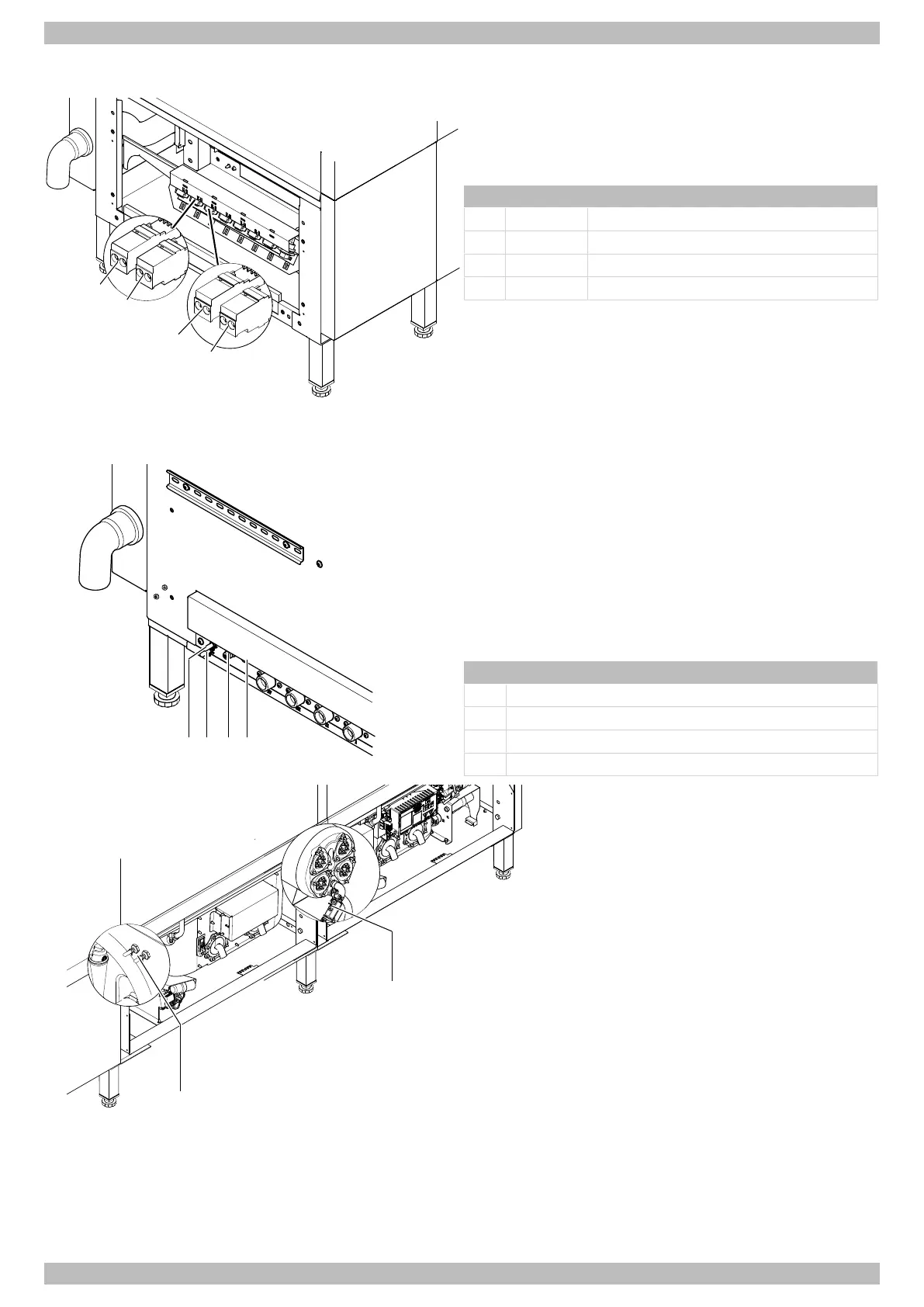

5.4 Establish the electrical connection of the suction tubes
Ø Connect the detergent suction tube to the corresponding
terminals.
Ø Connect the rinse aid and defoamer suction tubes to the
corresponding terminals.
Item Terminal Note
1 I6 Detergent 1 suction tube
2 I5 Rinse aid 1 suction tube
3 I8 Detergent 2 suction tube
4 I7 Rinse aid 2 / defoamer suction tube
Note:For dosing devices that are not made by
Winterhalter, the suction tubes have to be connected to
input I6 (item 1) and I5 (item 2) so that the display
shows when these agents are empty.
5.5 Connecting the suction tube hydraulics
Ø Connect the suction tube hose to dosing device PPX.
Ø Attach the hose of dosing device PPX to the corres-
ponding connection using a wire hose clip.
Ø Feed the dosing line from the detergent connection (1 or
2) through the warewasher to the dosing nipple (5) on
the tank of the last main wash zone and secure in place.
Ø Feed the dosing line from the rinse aid connection (3
and 4) through the warewasher to the dosing nipple (6)
on the boiler in the rinse zone and secure in place.
Item Description
1 Connection for detergent 1
2 Connection for detergent 2
3 Connection for rinse aid 1
4 Connection for rinse aid 2
