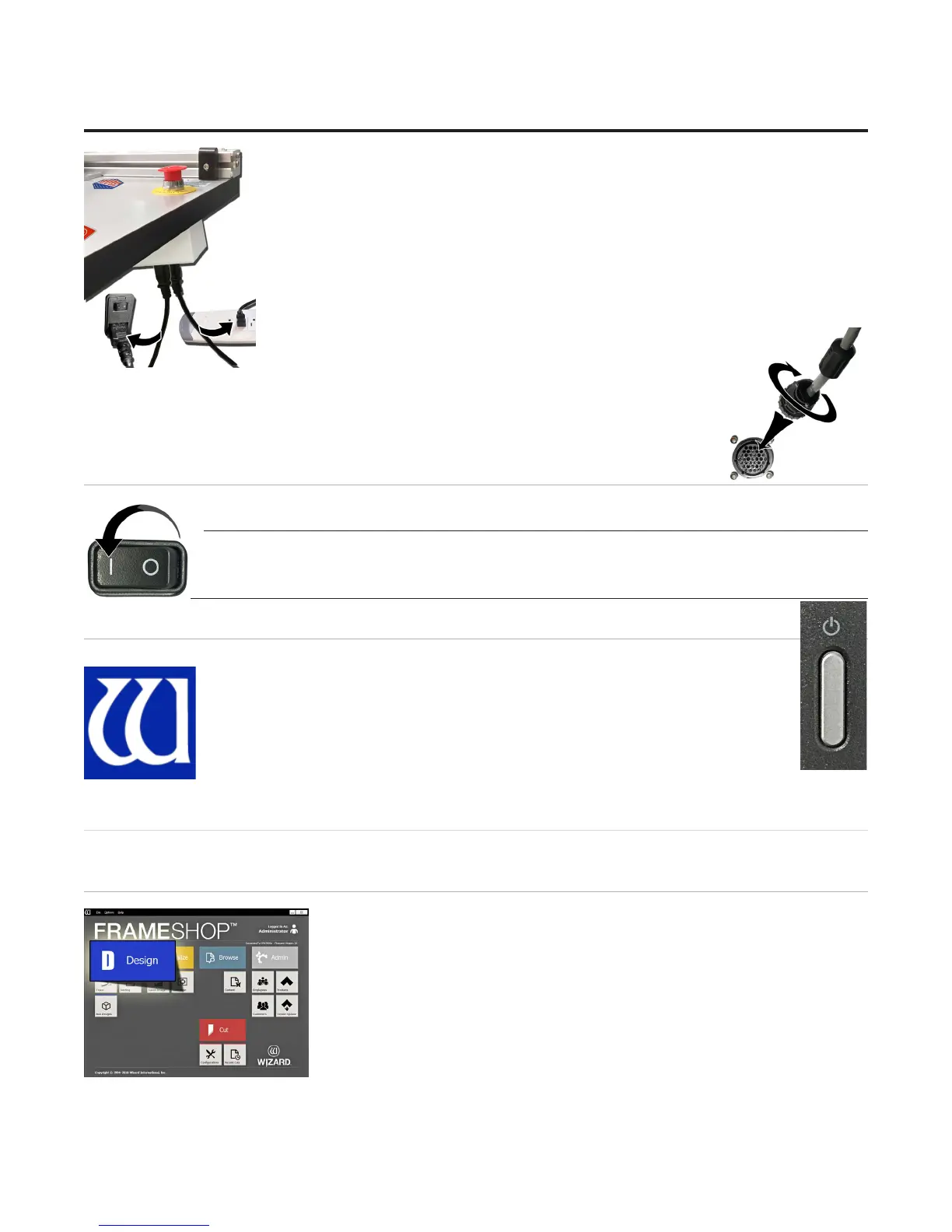

5. Connect the other end of the ECU power supply plug to the top port behind the
emergency stop on the back of the board. Make sure the plug is rmly inserted to
ensure the grounding wire makes contact.
6. Connect the power cord for the emergency stop into the bottom port on the back of
the board.
7. Connect the other end of the emergency stop power cord into a surge protector.
The other end should be plugged into a surge protector.
8. The board Cable was plugged into the back of the driver pack when we hooked up
the gantry. See "Connecting the Board Cable" on page 11 for more information.
Turn the System On
Power up the Driver Pack/ECU
Press the | on the rocker switch on the back of the driver pack/ECU to turn on the ECU.
*The ECU must be on for the CMC to cut. Press | on the
rocker switch to turn it on.*
Boot the Computer
Turn on the computer. Allow a minute or so for it to power up.
Double-click on the FrameShop icon to start the software.
Design the First Mat
Edit New Mat
1. Click Design on the main screen to create a new design.
