22
Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardcutters.com
CMC 8000RC/FrameShop 20-71034-1 GettingStartedManual8000RCFrameShop
http://info.wizardint.com/KB/default.aspx#pageid=getting_started_manual_8000_rc 04/05/19

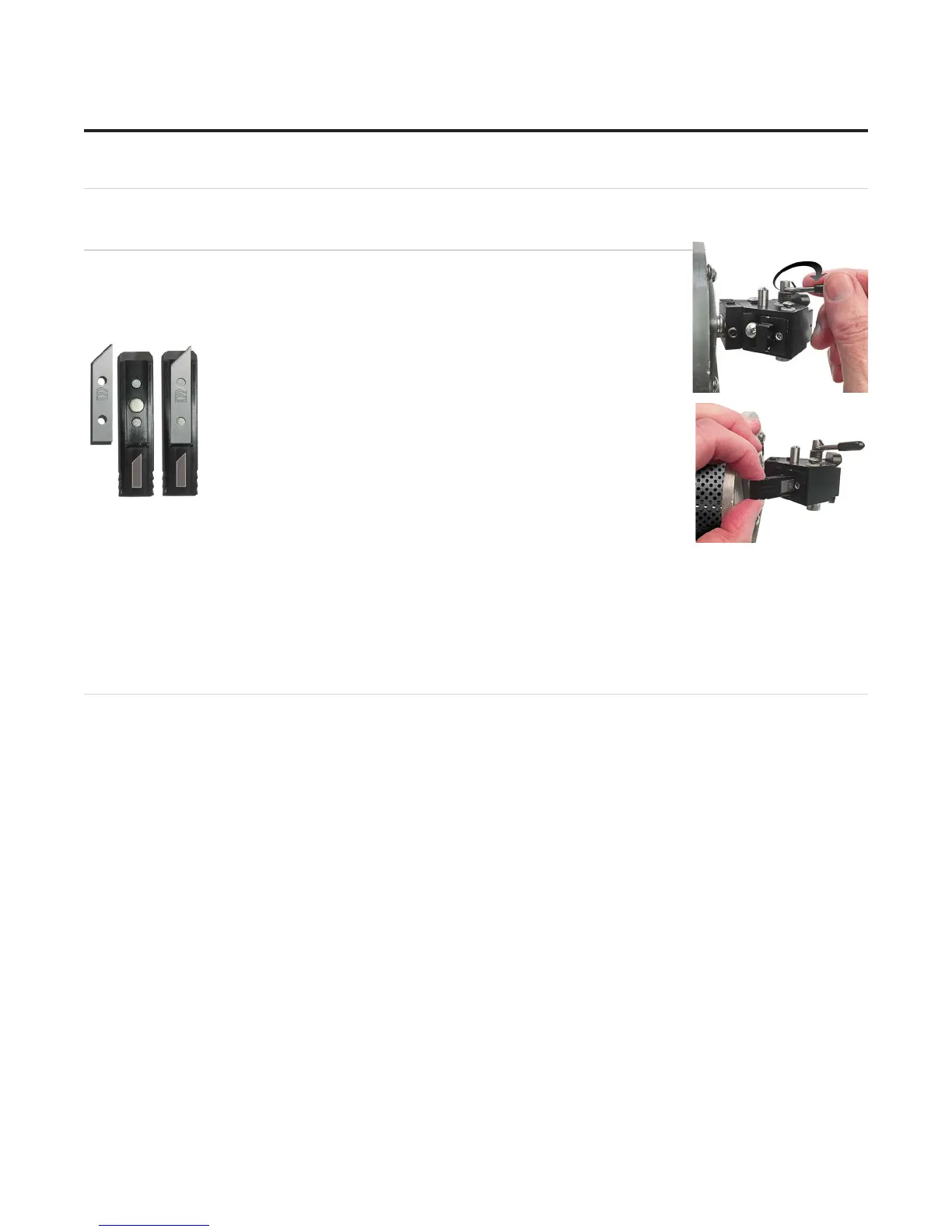

Changing the Blade
Using the 45° Cartridge
Changing the Blade
1. Push the blade cartridge release down to eject the blade cartridge.
2. Remove the blade from blade cartridge.
3. The blade cartridge displays a diagram of the blade orientation
(shown in contrast). Place new blade into cartridge with the
longest straight side to the right and the bevel face down lining up
the holes of the blade over the pins in the cartridge. The blade
should t snugly into the recess space provided for it.
4. Turn the cartridge over and reinsert into the head with the blade
facing the CMC board and the notch on the back of the cartridge
facing the head, until it clicks into place.
If the Blade Cartridge does not slide into place, remove it and retry. DO NOT
FORCE IN THE BLADE CARTRIDGE.
NOTE: If the Blade Cartridge is accidently inserted backward, DO NOT pull upward on the Blade Cartridge
Release as this could result in damage to the Footblock assembly. If you are not able to remove the Blade
Cartridge, call Help Desk at 888/855-3335.
Troubleshooting
Cuts Look Wavy
Check for squareness. See "Check Squareness" on page 10.
Make sure the board cable is unobstructed. See "Connecting the Board Cable" on page 11.
Check the head wheels. See Head Wheel Adjustment at http://info.wizardint.com/KB.
Check the blade depth - See "Insert Blade Cartridge and Adjust Blade Depth" on page 20 and Blade
Depth Adjustment on the Knowledge Base at http://info.wizardint.com/KB.
Blade Keeps Breaking
Check how the blade is installed. See "Install a Blade" on page 17.
Check to make sure the head is properly aligned. See "Align the Head" on page 19.
Check the Blade Depth. See "Blade Depth Setting" on page 17 and Measuring Blade Depth on the
Knowledge Base at http://info.wizardint.com/KB.
