Wizard CMC Model 8000 RC Hardware and Software Getting Started Manual
CMC 8000RC/Frameshop 20-71034-1 GettingStartedManual8000RCFrameShop
http://info.wizardint.com/KB/default.aspx#pageid=getting_started_manual_8000_rc 04/05/19

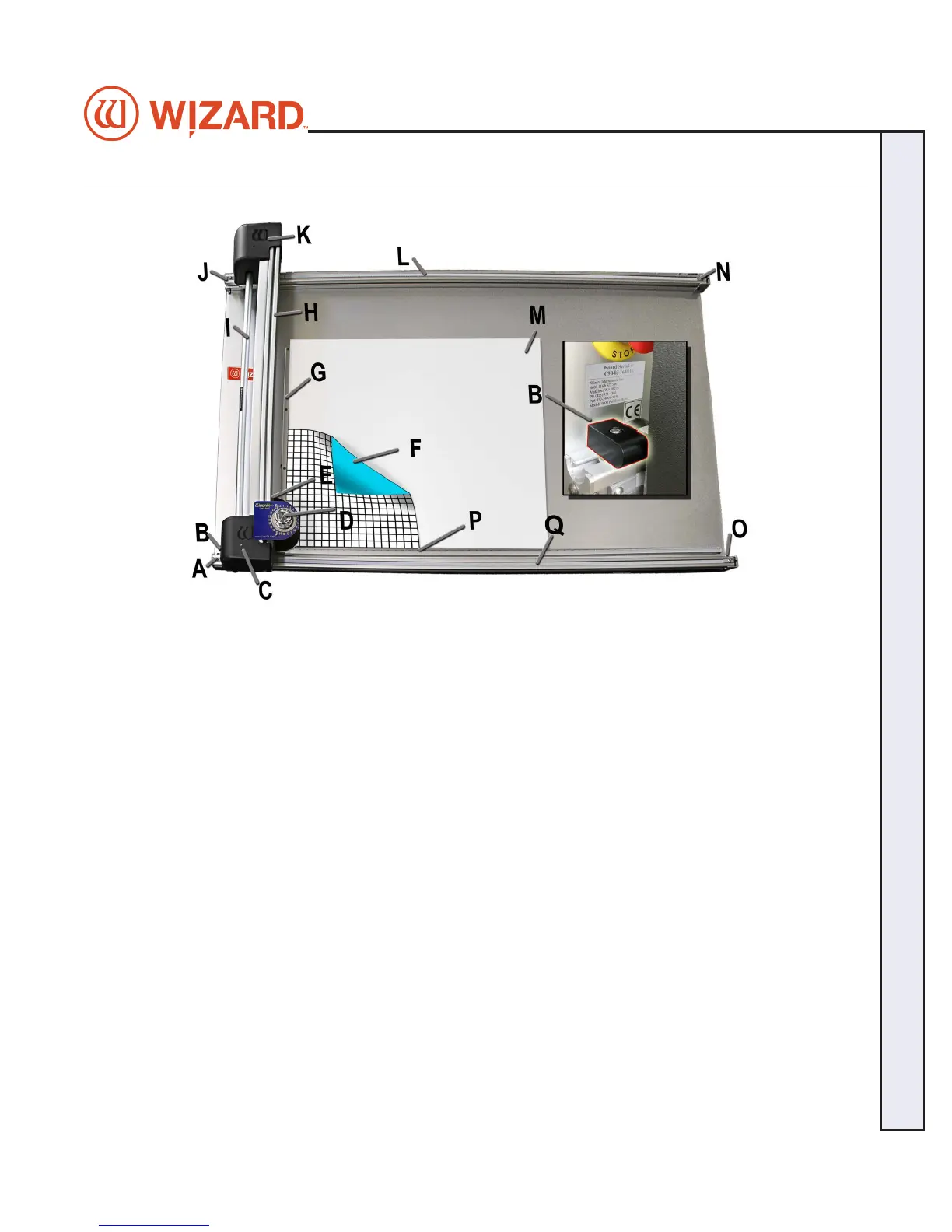

The 8000 CMC Parts Labeled
A: Belt Anchor
B: Magnetic Stop
C: Bottom cover containing vertical belt tension
adjustment.
D: Head and the blade depth knob
E: Head grabber arm
F: Mat to be cut
G: Vertical clamp
H: Gantry arm
I: Drive shaft
J: Belt anchor
K: Upper cover
L: Upper rail, containing drive belt
M: Backing mat (2 layers)
N: Horizontal tension adjustment (upper rail)
O: Horizontal tension adjustment (lower rail)
P: Horizontal clamp
Q: Lower rail, containing drive belt
