Xerox Phaser 6120 Reference Guide

Setting Up the Printer Web Page116
" Our examples represent the IP address of the printer with:
xxx.xxx.xxx.xxx. Always enter your printer’s IP address without
leading zeros. For example, 192.168.001.002 should be entered as
192.168.1.2.
Internet Explorer (version 6.0 for Windows)
1 Start Internet Explorer.
2 From the Tools menu
choose Internet Options.
3 Select the Connections tab
on the dialog box.
4 Choose the LAN Settings
button to display the Local
Area Network (LAN) Settings
dialog box.

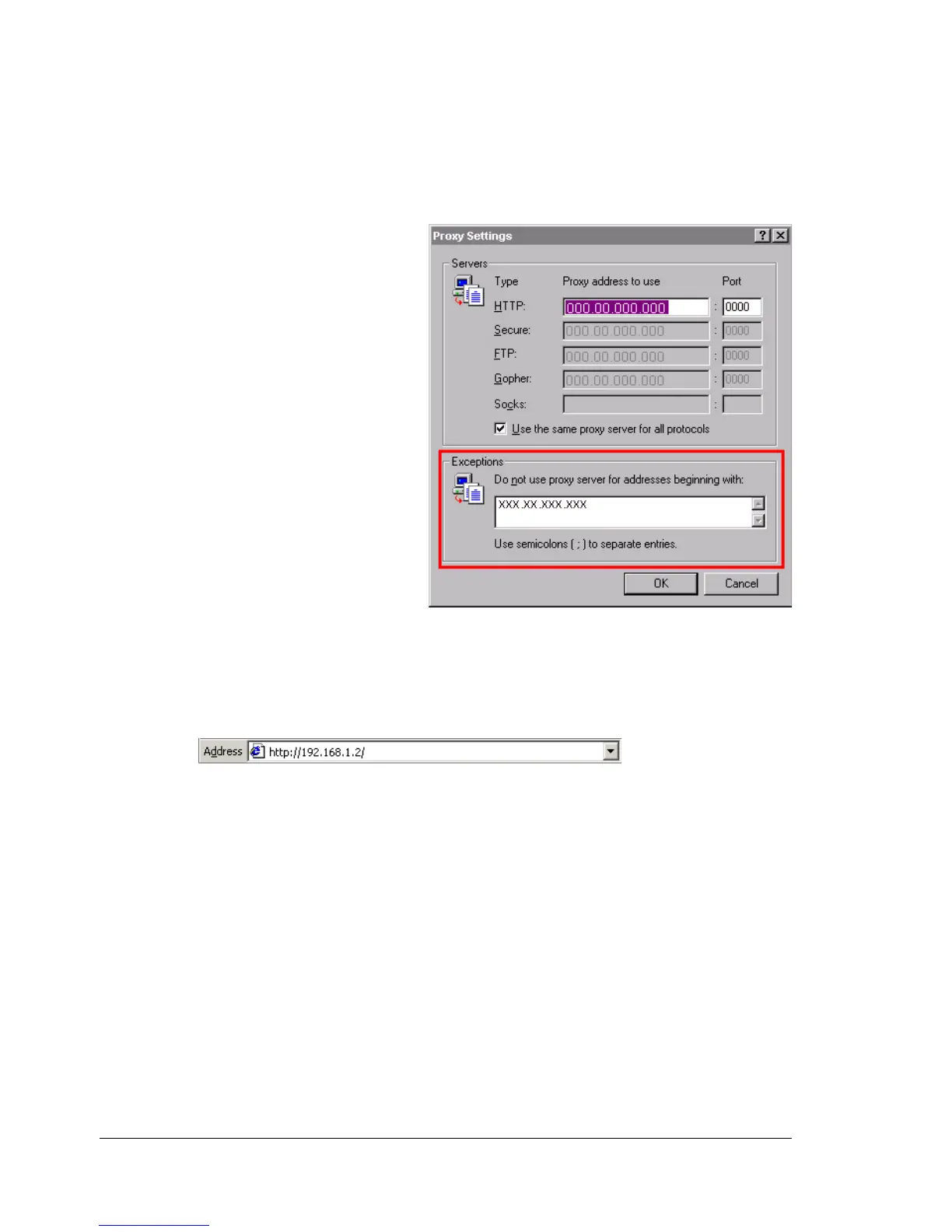

5 Select Advanced in Proxy
server to open the Proxy
Settings dialog box.
6 In the Exceptions text box,
type a comma after the last
entry and then type the
printer name or the IP
address of your printer.
7 Choose OK three times to return to the main browser window.
8 Enter the printer’s IP address in the URL Address box to access the
printer home page.

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
