Chapter 1: ML605 Evaluation Board
User SMA GPIO
The ML605 includes an pair of SMA connectors for GPIO as described in Figure 1-21 and
Table 1-24.

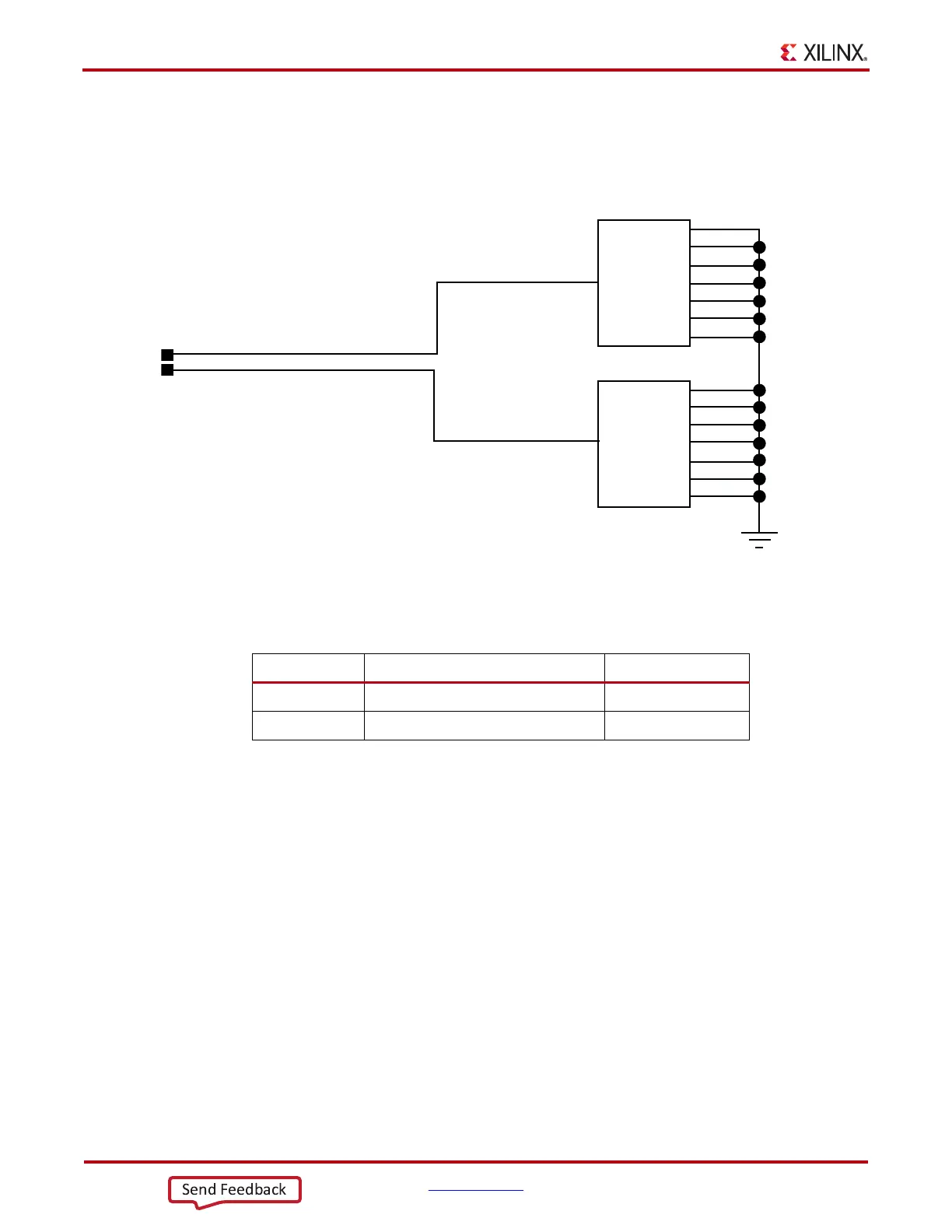

X-Ref Target - Figure 1-21
Figure 1-21: User SMA GPIO
UG534_21_072109
USER SMA GPIO N
J56 32K10K-400E3
J76 32K10K-400E3
GND1
SIG
1
1
SIG
GND2
GND3
GND4
GND5
GND6
GND7
GND1
GND2
GND3
GND4
GND5
GND6
GND7
USER SMA GPIO P
2
3
4
5
6
7
8
2
3
4
5
6
7
8
Table 1-24: User SMA Connections
U1 FPGA Pin Schematic Net Name SMA Pin
W34 USER_SMA_GPIO_N J56.1
V34 USER_SMA_GPIO_P J57.1
