Changing Network Output Source
If your amplifier has a network audio card fitted (Dante) then, as well as being able to route
four channels of audio from the network, it is possible to route four channels of audio back
onto the network. The possible sources for the network outputs are always selected as a
group of four, and there are eight points within your amplifier’s DSP than can be chosen.
To choose sources, from the home screen, press MENU, choose the CONFIGURATION Sub-
Menu and press ENTER.
Use the encoder or BACK and NEXT keys to find the Digital Output Source option and press
ENTER.
Use the encoder or BACK and NEXT keys to choose between one of the following sources:
Off (Muted)
The network outputs source is disconnected and no audio is transmitted. The Dante
connection is maintained and visible on the network
Inputs
Source : audio is sourced from the input to the DSP, just after the source switching
matrix, before any processing.
Amp Outputs
Source : audio is sourced just after all amplifier output’s processing but
pre-mute
so the network copies will
not
be affected by local (or remote) mutes.
Aux Outputs
Source : audio is sourced just after all auxiliary output’s processing but
pre-mute
so the network copies will
not
be affected by local (or remote) mutes.
Matrix Inputs
Source : audio is sourced just after all input channel’s processing but before the
mix matrix — network outputs will be affected by input mutes.

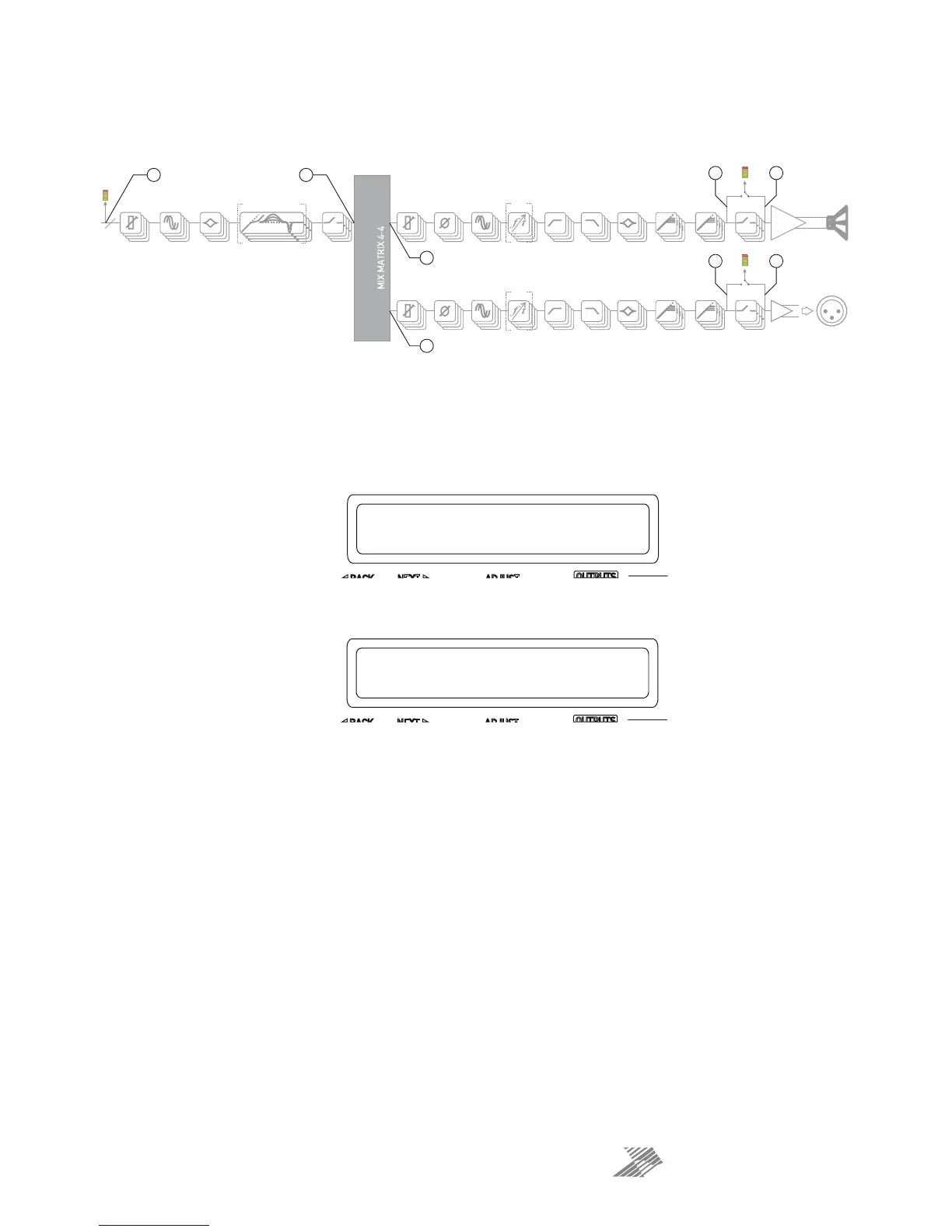

PROG. - LIMITERS - PEAK MUTEPEQ x 8DELA Y DYNAM I C EQ x 3GAIN
