Operating Your Amplifier: Storing and Recalling Settings
Memory Overview
The memory in your amplifier is organised into three different types — input memories, output
memories and source memories. Input and output memories are formatted in banks of four
channels at a time — be that four input channels or four output channels (amplifier or auxes).
Source memories are a different type and are global to the entire amplifier. It is also possible
to store and recall a complete copy of all current settings (so, input, source, amplifier and aux
outputs) in a memory location — “Everything”.

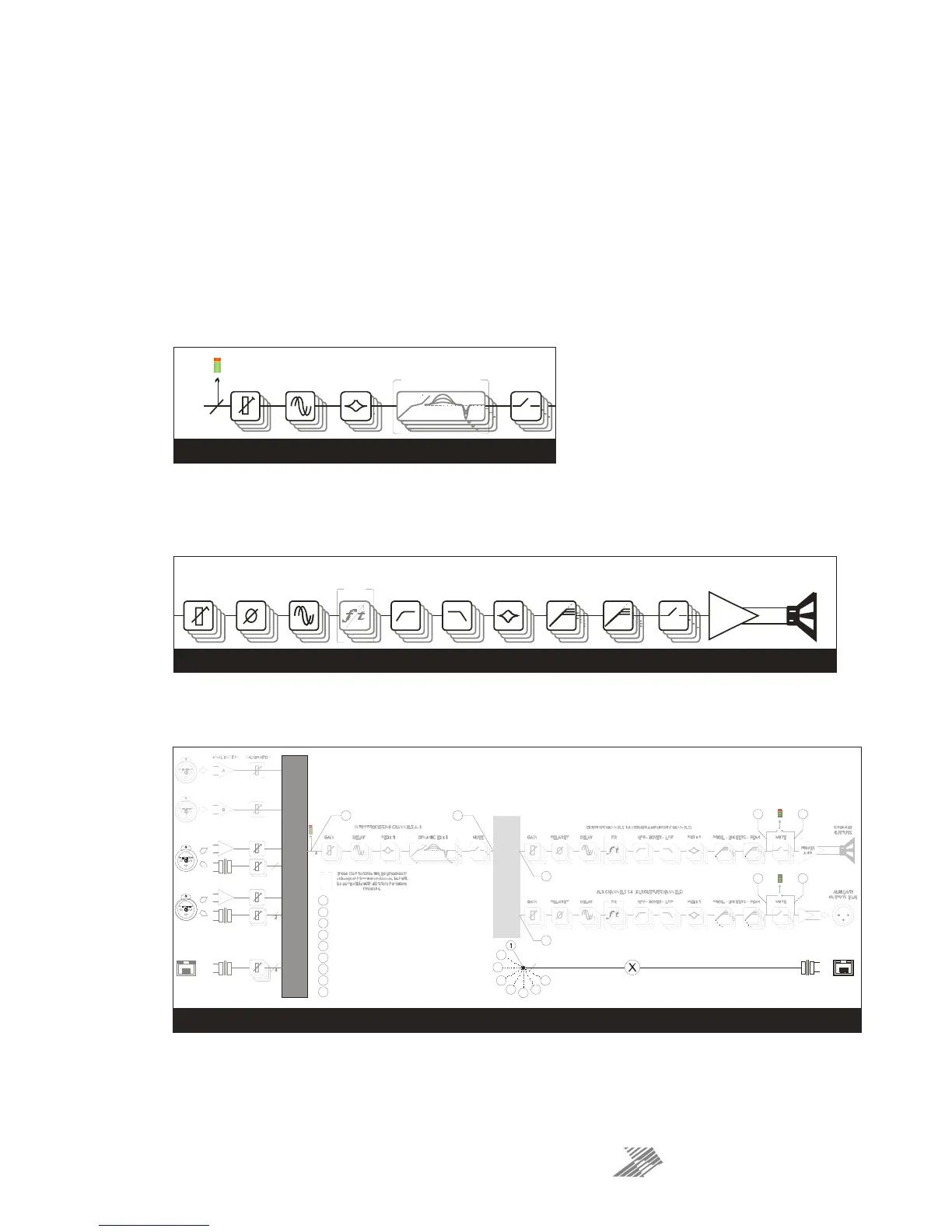

Input memories contain all the EQ, gains, delays, mutes and names for the four input
channels.
PEQ x 9DELAY DYNAM I C EQ x 3GAIN
4
SOU RCE S WITC H 12-4
I NP U T PR O CES S I NG CHANNELS A - D
MUTE
INPUT MEMORY
Output memories contain all the EQ, crossover filters, FIR data (if applicable), polarities,
gains, delays, mutes, limiters (including auto time constants setting), names, bridge modes,
and routing from the mix matrix (including free assign and full matrix gains if applicable).
This is for the bank of four amplifier channels, or the bank of four auxiliary output channels.
OUTP UT CHANNELS 1- 4 ( P O WER AM P LI FI ER CHA NNELS )
PROG. - LIMITERS - PEAK
MUTE
POWER
AMP
SPEAKER
OUTPUTS
PEQ x 9FIRDELA Y HP F - XO VER - LP FGAIN POLARITY
OUTPUT MEMORY
Source memories contain the all data concerned with additional choices of source selection
encompassing AES/Analogue switching, Network Audio Output Source and the source
switching (choosing which inputs feed the input DSP channels).
NETWORK
INPUTS ABCD*
C
D
ANALOGUE C OR AES A+ B
ANALOGUE D OR AES C+D
OR
OR
2
SOURCE SWITCH 12-4
*Network audio input and outp ut option (D ante)
INDEPENDENT NETWORK OUTPUTS AB CD
NETWORK
OUTPUTS*
MIX MATRIX 4-4
2
3
4
5
4
NETWORK OUTPUTS OFF
1
CO P Y O F S ELECTED I NP U T S O U R CES
2
COPY OF POWER AMP OUTPUTS, PRE MUTE
3
COPY OF AUXILIARY OUTPUTS, PRE MUTE
4
COPY OF INPUTS A-D, POST PROCES SING
5
COPY OF POWER AMP OUTPUTS POST MATRIX, PRE PROCESSING
6
COPY OF AUXILIARY OUTPUTS POST MATRIX, PRE PROCESSING
7
COPY OF POWER AMP OUTPUTS, POST MUTE
8
COPY OF AUXILIARY OUTPUTS, POST MUTE
0
6
7
8
72
83
6
5
41
SOURCE MEMORY
Memories all exist in a numbered list and depending on the type of memory to be recalled,
the list will be filtered to only show the applicable memory type.
