INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU01215
Shift pedal (XVS650A)
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
NOTE:
_
Use your toes or heel to shift up and
your toes to shift down.
_
EAU00158
Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
EAU00162
Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.

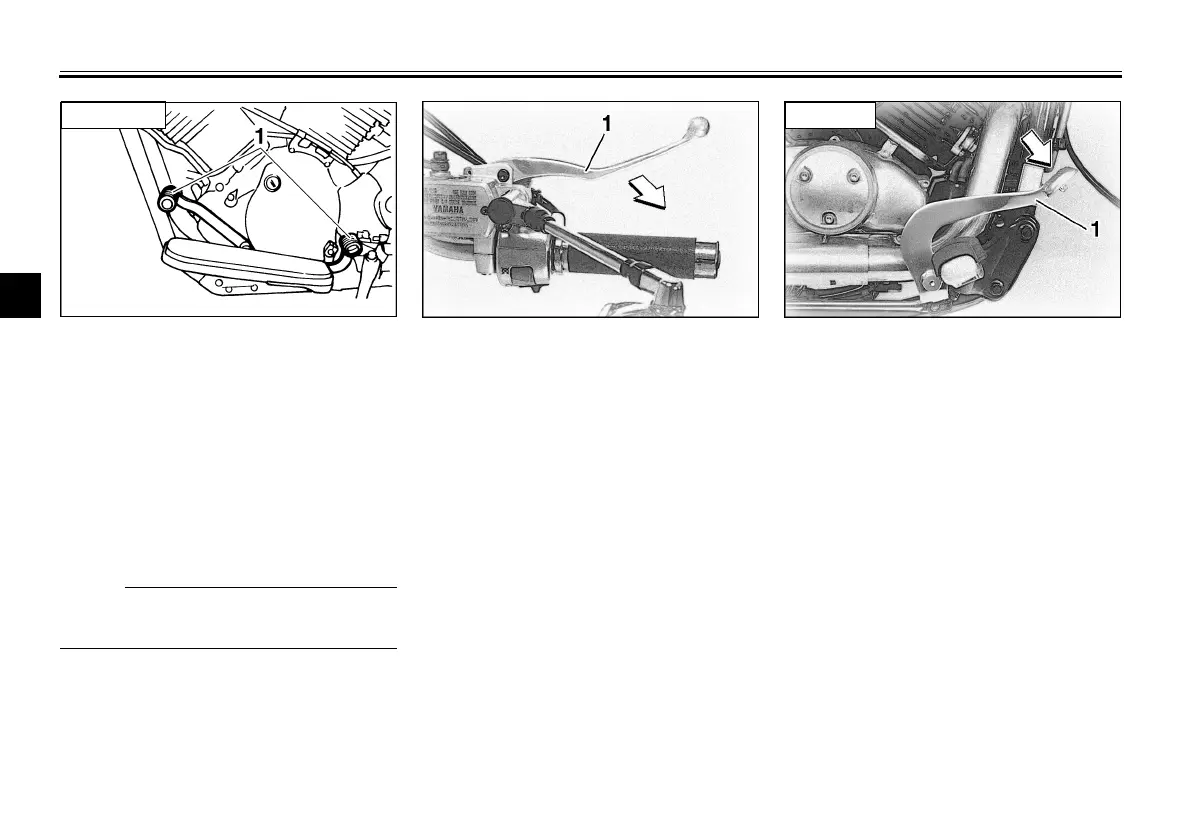

1. Shift pedal
XVS650A
1. Brake lever 1. Brake pedal
