PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
EAU00825
Replacing the fuses
The fuses are located behind panel B.
(See page 6-6 for panel removal and
installation procedures.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
EC000103
@
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
@
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.

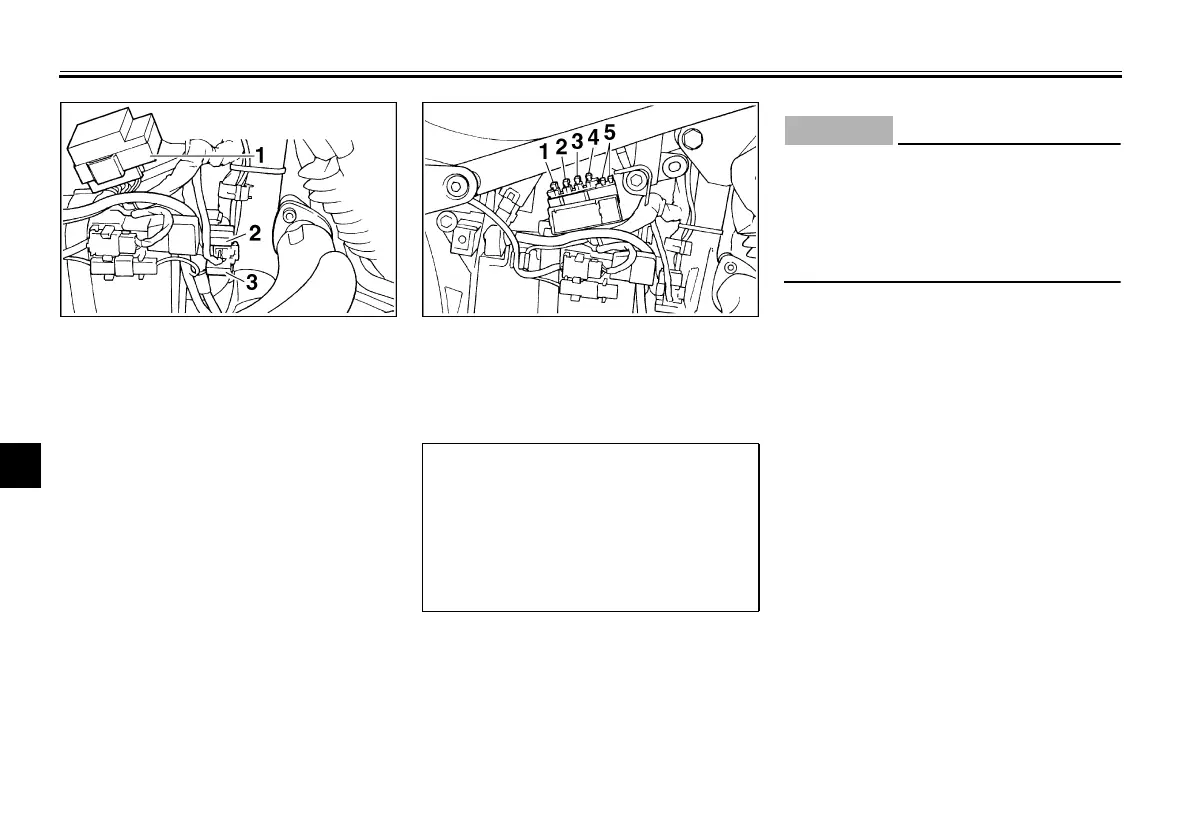

1. Fuse block
2. Main fuse
3. Spare main fuse
1. Ignition fuse
2. Signaling system fuse
3. Headlight fuse
4. Carburetor heater fuse
5. Spare fuse
Specified fuses:
Main fuse: 30 A
Ignition fuse: 10 A
Signaling system fuse: 10 A
Headlight fuse: 15 A
Carburetor heater fuse: 15 A
