PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
4. Lower the front wheel so that it is
on the ground.
5. Push down hard on the handlebar
several times to check for proper
fork operation.
6. Tighten the wheel axle to the
specified torque.
7. Install the front wheel axle pinch
bolt, and then tighten it to the
specified torque.
8. Connect the speedometer cable.
EAU01350
Rear wheel
To remove the rear wheel
EW000122
WARNING
@
●
It is advisable to have a Yamaha
dealer service the wheel.
●
Securely support the motorcycle
so that there is no danger of it
falling over.
@
1. Loosen the axle nut.
2. Disconnect the brake torque rod
from the brake shoe plate by re-
moving the bolt.
3. Loosen the brake torque rod bolt
at the swingarm.
4. Remove the brake pedal free play
adjusting nut, and then disconnect
the brake rod from the brake cam-
shaft lever.
5. Remove panel A. (See page 6-6
for panel removal and installation
procedures.)
Tightening torque:
Wheel axle:
59 Nm (5.9 m·kg)
Tightening torque:
Front wheel axle pinch bolt:
20 Nm (2.0 m·kg)

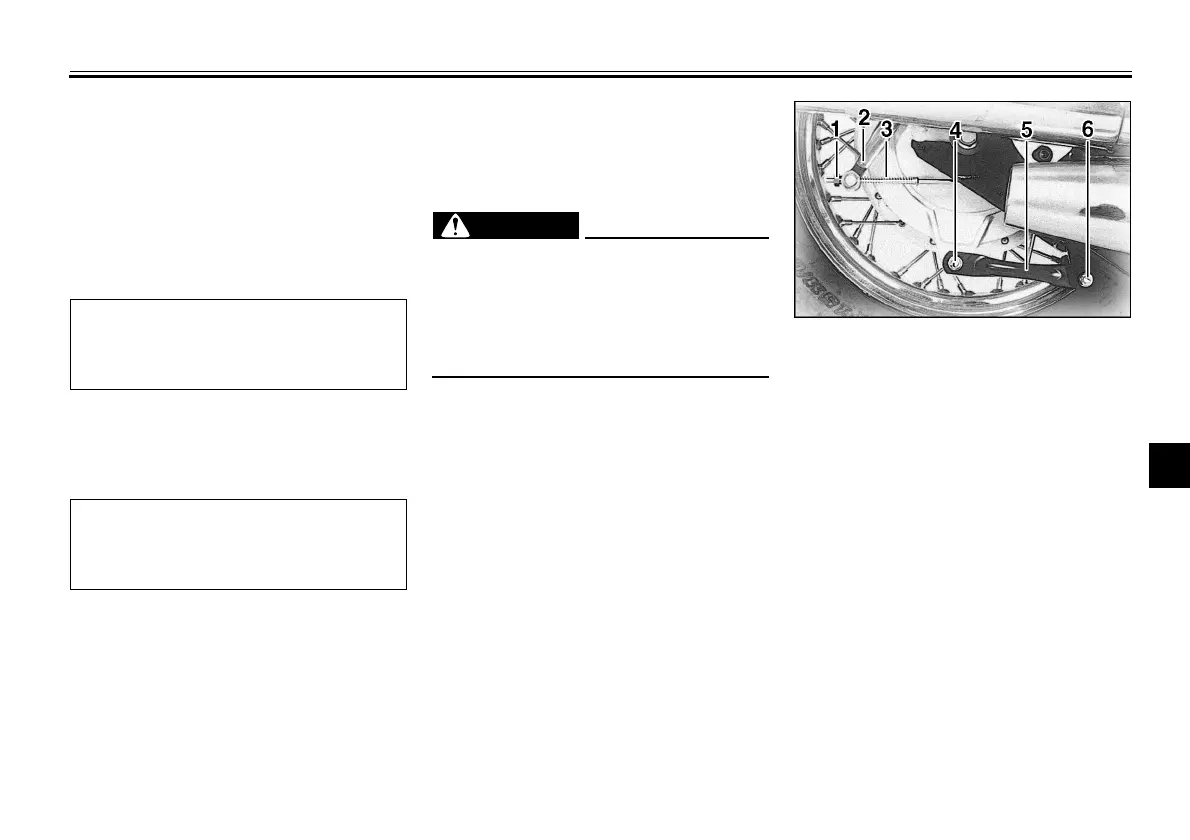

1. Brake pedal free play adjusting nut
2. Brake camshaft lever
3. Brake rod
4. Bolt (shoe plate)
5. Brake torque rod
6. Bolt (swingarm)
E_5bn.book Page 36 Monday, November 13, 2000 9:11 AM
