PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
EAU00586*
Cleaning the air filter element
The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the air filter case cover by
removing the screws.
2. Pull the air filter element out.
3. Lightly tap the air filter element to
remove most of the dust and dirt,
and then blow the remaining dirt
out with compressed air as shown.
If the air filter element is damaged,
replace it.
4. Insert the air filter element into the
air filter case as shown.

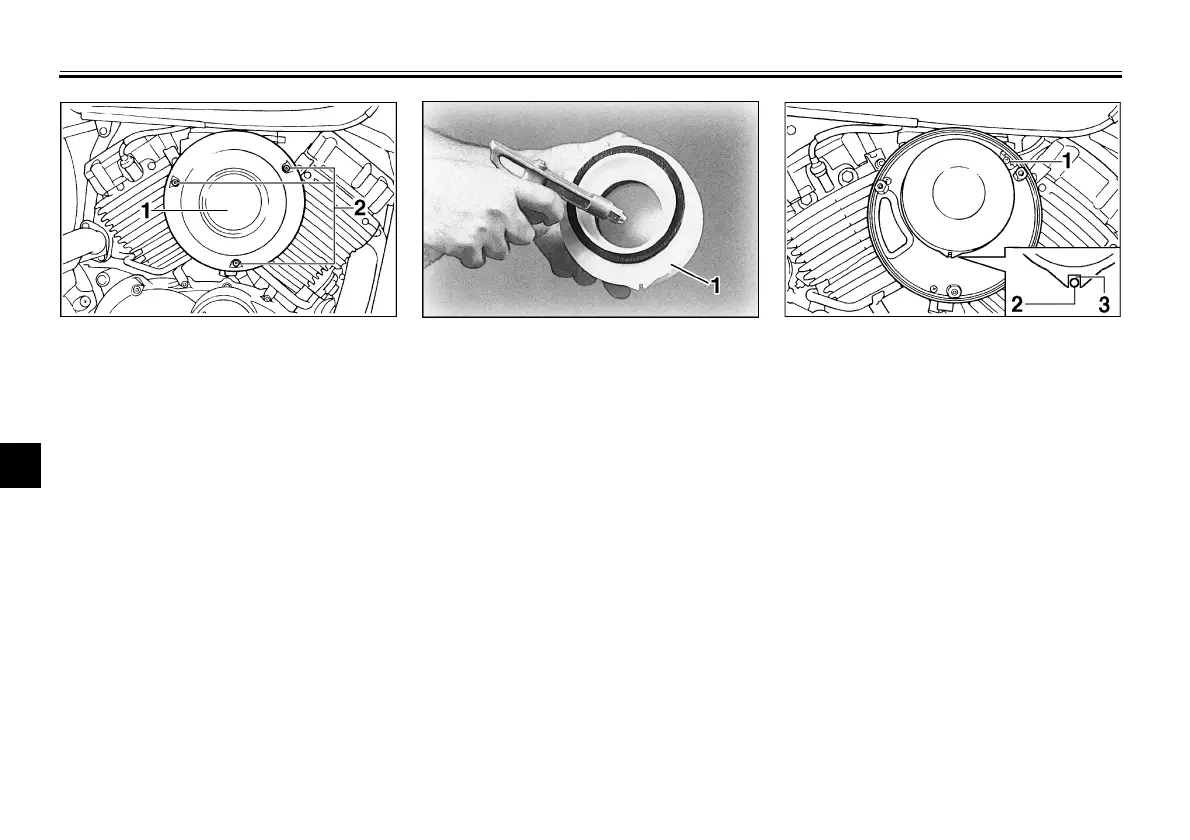

1. Air filter case cover
2. Screw (× 3)
1. Air filter element 1. Air filter element holder
2. Projection
3. Slot
