PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
EAU00694
Adjusting the clutch lever free
play
The clutch lever free play should mea-
sure 10–15 mm as shown. Periodically
check the clutch lever free play and, if
necessary, adjust it as follows.
1. Loosen the locknut at the clutch
lever.
2. To increase the clutch lever free
play, turn the adjusting bolt in di-
rection
a
. To decrease the clutch
lever free play, turn the adjusting
bolt in direction
b
.
3. If the specified clutch lever free
play could be obtained as de-
scribed above, tighten the locknut
and skip the rest of the procedure,
otherwise proceed as follows.
4. Fully turn the adjusting bolt at the
clutch lever in direction
a
to loos-
en the clutch cable.
5. Loosen the locknut at the crank-
case.
6. To increase the clutch lever free
play, turn the adjusting nut in di-
rection
a
. To decrease the clutch
lever free play, turn the adjusting
nut in direction
b
.
7. Tighten the locknut at the clutch
lever and the crankcase.

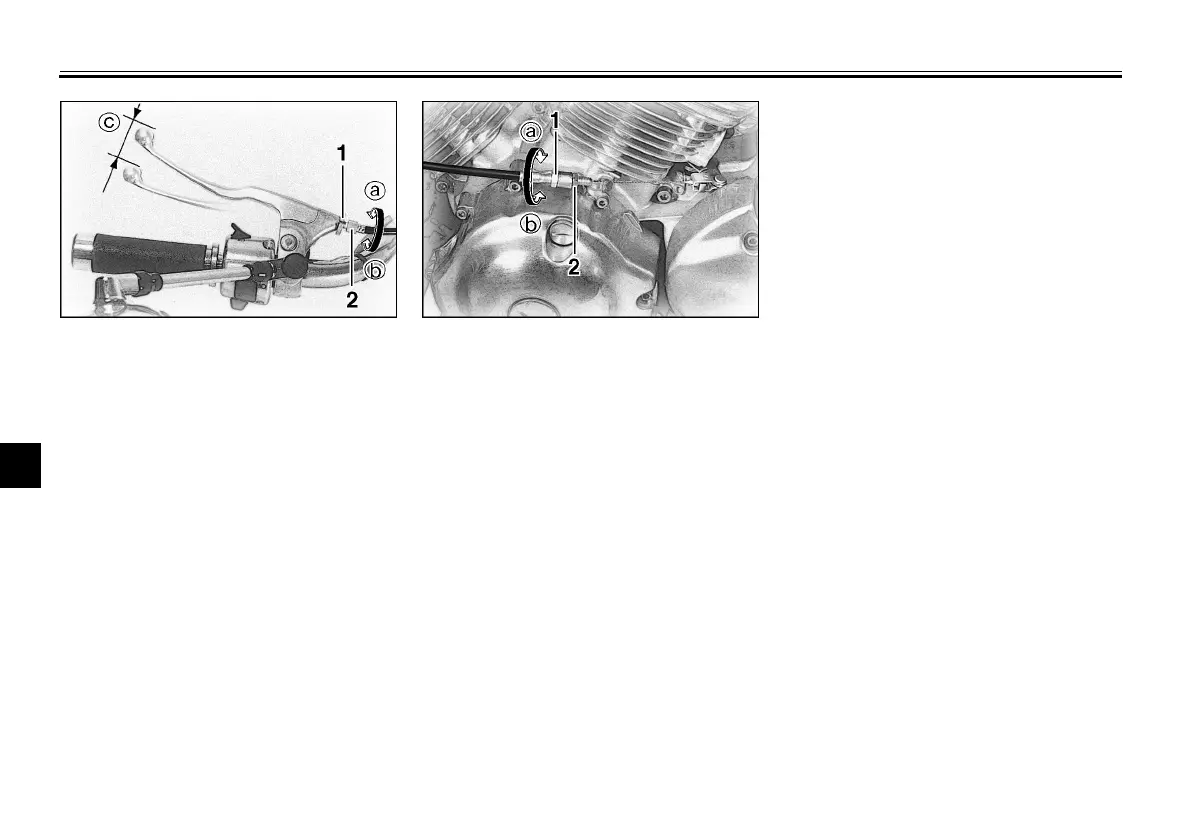

1. Locknut
2. Clutch lever free play adjusting bolt
c. Clutch lever free play
1. Clutch lever free play adjusting nut
2. Locknut
