PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU00720
Checking the front brake pads
and rear brake shoes
The front brake pads and the rear
brake shoes must be checked for wear
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU01119
Front brake pads
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wear
indicators have almost disappeared,
have a Yamaha dealer replace the
brake pads as a set.
EAU00727
Rear brake shoes
The rear brake is provided with a wear
indicator, which allows you to check the
brake shoe wear without having to dis-
assemble the brake. To check the
brake shoe wear, check the position of
the wear indicator while applying the
brake. If a brake shoe has worn to the
point that the wear indicator reaches
the wear limit line, have a Yamaha
dealer replace the brake shoes as a
set.

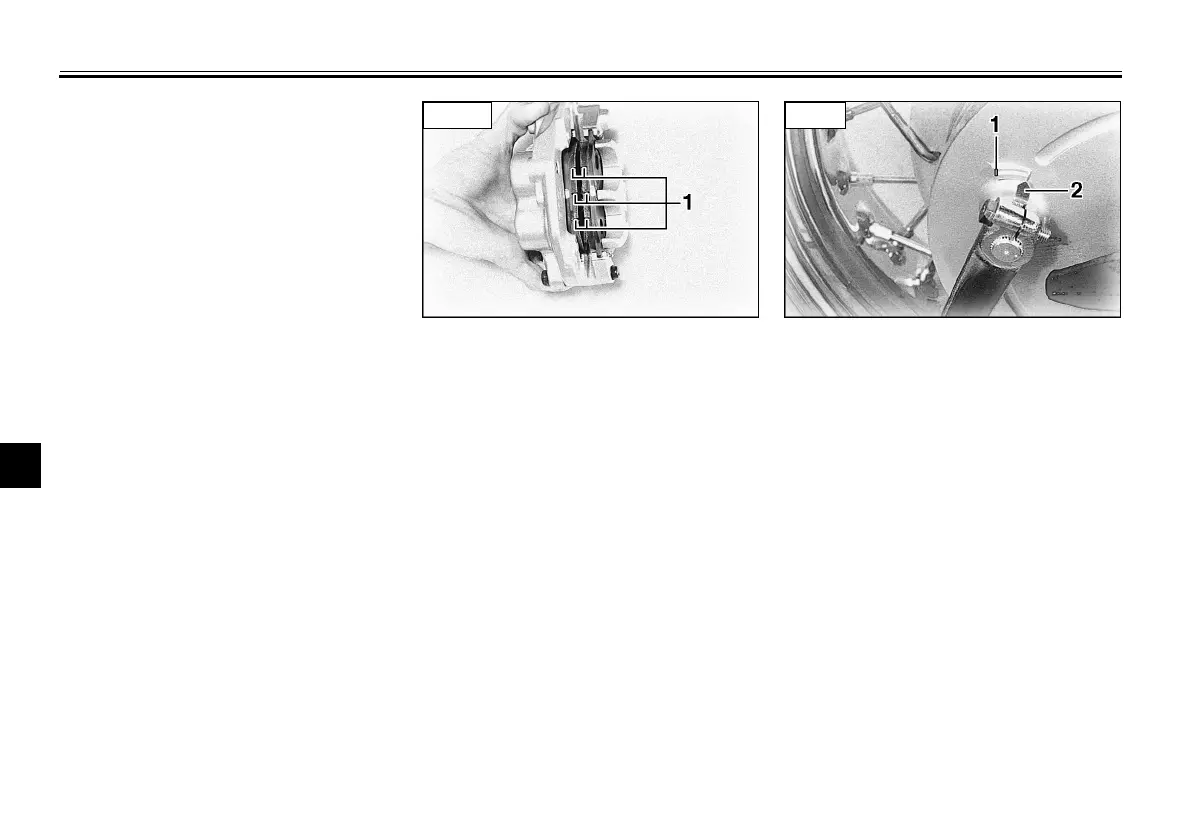

1. Brake pad wear indicator groove
Front
1. Brake shoe wear limit line
2. Brake shoe wear indicator
E_5bn.book Page 23 Monday, November 13, 2000 9:11 AM
