PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EAU00711*
Adjusting the brake pedal
position and free play
EW000104
WARNING
@
It is advisable to have a Yamaha
dealer make these adjustments.
@
NOTE:
@
The brake pedal position should be ad-
justed before adjusting the brake pedal
free play.
@
Brake pedal position
The brake pedal should be positioned
approximately 85 mm [XVS650] or
108 mm [XVS650A] above the top of
the footrest as shown. Periodically
check the brake pedal position and, if
necessary, adjust it as follows.
1. Loosen the locknut at the brake
pedal.
2. To raise the brake pedal, turn the
adjusting bolt in direction
a
. To
lower the brake pedal, turn the ad-
justing bolt in direction
b
.
3. Tighten the locknut.
EW000105
@
After adjusting the brake pedal
height, the brake pedal free play
must be adjusted.
@

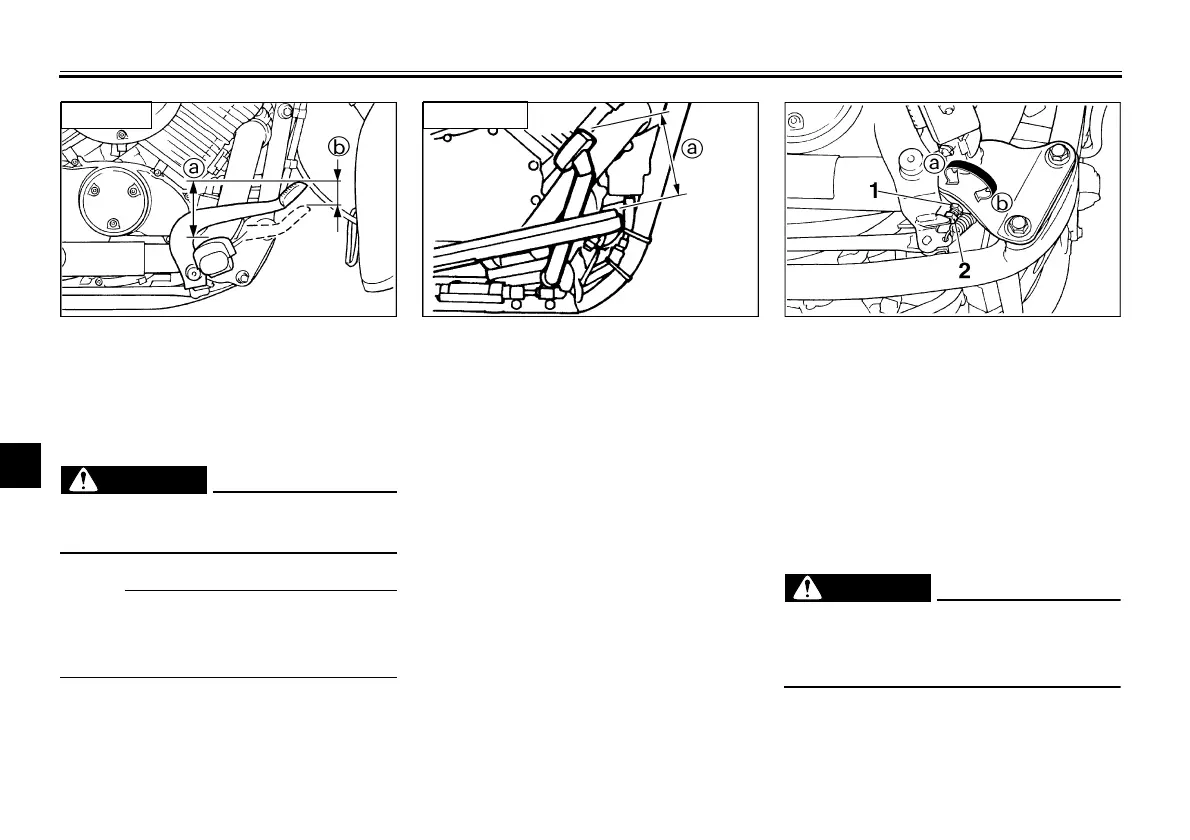

a. Distance between brake pedal and footrest
b. Brake pedal free play
XVS650
a. Distance between brake pedal and footrest
XVS650A
1. Locknut
2. Brake pedal position adjusting bolt
E_5bn.book Page 21 Monday, November 13, 2000 9:11 AM
