Seats (XVS650A)
Passenger seat

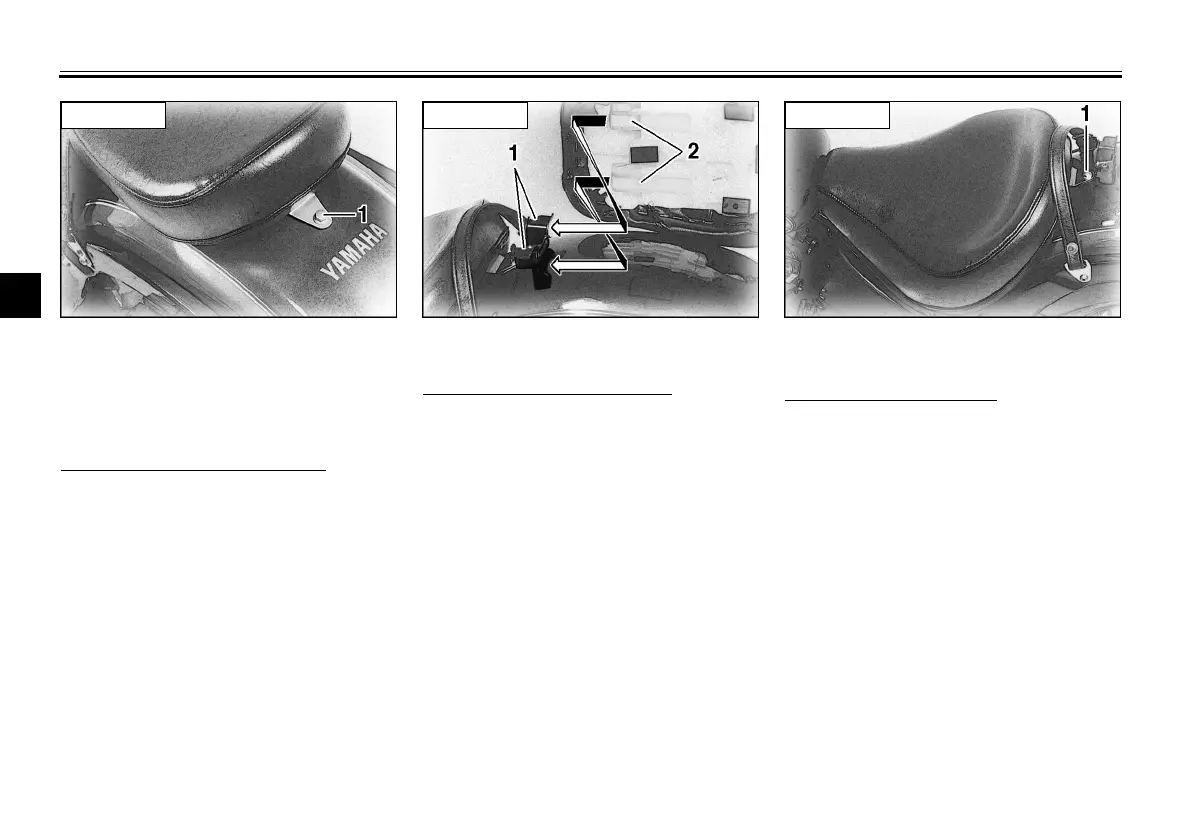

To remove the passenger seat
Remove the bolt, and then pull the pas-
senger seat up.
To install the passenger seat
Insert the projections on the front of the
passenger seat into the holder as
shown, place the seat in the original
position, and then install the bolt.
Rider seat
To remove the rider seat
1. Remove the passenger seat.
2. Remove the bolt, and then pull the
rider seat up.
1. Bolt
XVS650A
1. Seat holder (× 2)
2. Projection (× 2)
XVS650A
1. Bolt
