Yamaha 40 User Manual

2-8
GB
EMC80012

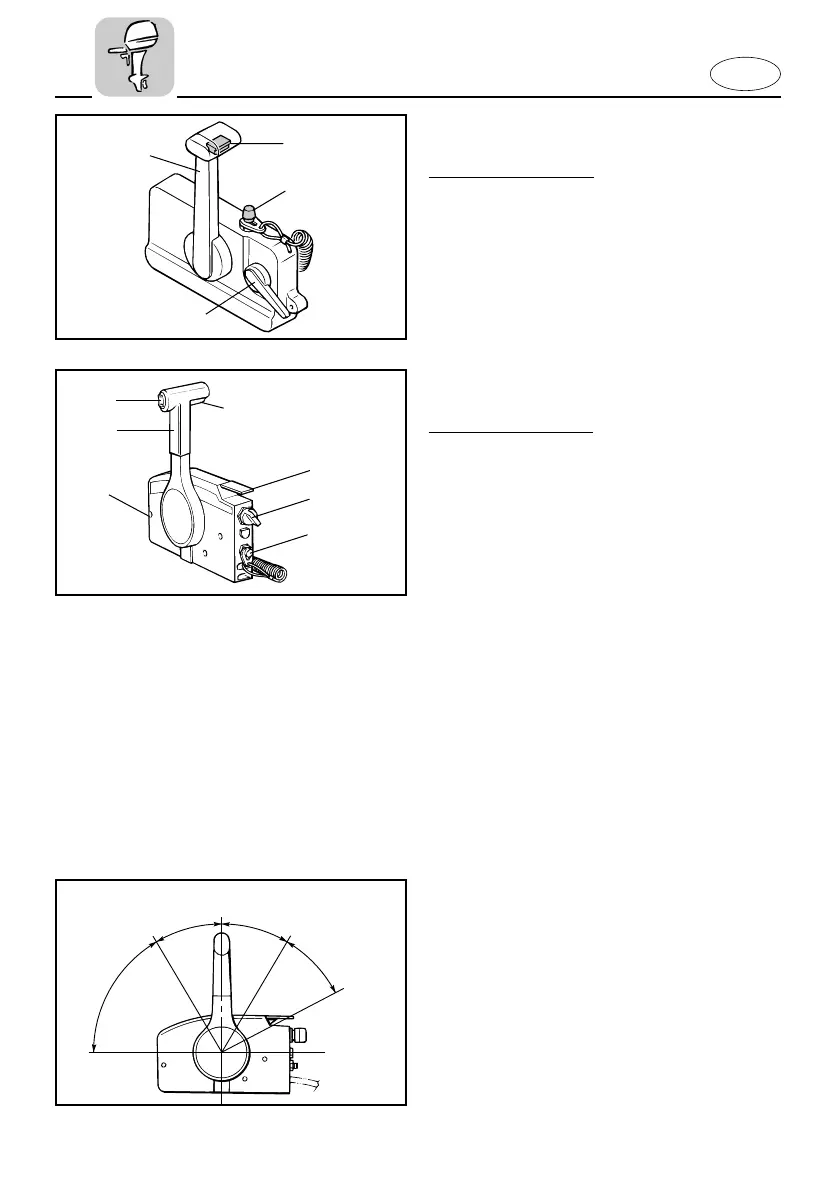

REMOTE CONTROL
Manual start model
Both the shifter and the throttle are actu-
ated by the remote control lever.
1 Remote control lever
2 Neutral interlock trigger (If equipped)
3 Neutral throttle lever
4 Engine stop button/
Engine stop lanyard switch (If equipped)
q
r
e
w
704033*
701011*
w
q
e
r
t
y
u
R
N
F
q
w
e
r
t
y
u
u
t
r
y
701031
EMC80612
REMOTE CONTROL
Electric start model
Both the shifter and the throttle are actu-
ated by the remote control lever. In addi-
tion, this control also has the electrical
switches.
1 Remote control lever
2 Neutral interlock trigger
3 Neutral throttle lever
4 Main switch
5 Engine stop lanyard switch
6 Power trim and tilt switch
7 Throttle friction adjusting screw
EMC50010
Remote control lever
Moving the lever forward from the Neu-
tral position engages Forward gear.
Pulling the lever back from Neutral
engages Reverse. The engine will contin-
ue to run at idle until the lever is moved
about 35° (a detent can be felt). Moving
the lever farther opens the throttle, and
the engine will begin to accelerate.
1 Neutral
2 Forward
3 Reverse
4 Shift
5 Fully closed
6 Throttle
7 Fully open
63B-9-78-A0-2 2/17/03 4:26 PM Page 18

Yamaha 40 Specifications

General

Full Throttle RPM Range	5000 - 6000 rpm
Fuel Induction System	EFI (Electronic Fuel Injection)
Starting System	Electric
Displacement	747cc
Prop Shaft Horsepower	40hp
Ignition System	TCI
