EMD04011*

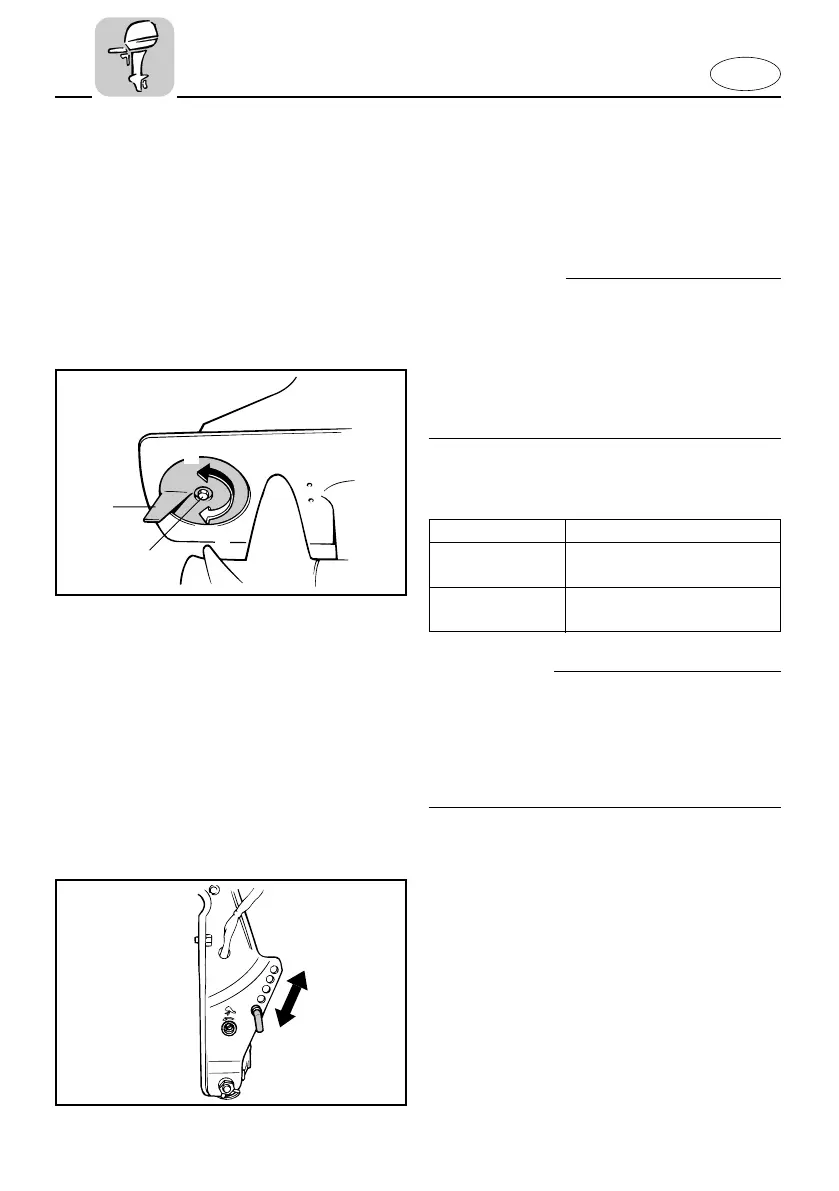

TRIM TAB
The trim tab should be adjusted so that
the steering control can be turned to
either the right or left by
applying the same amount of force.
w
An improperly adjusted trim tab may
cause difficult steering. Always test run
after the trim tab has been installed or
replaced to be sure steering is correct. Be
sure you have tightened the bolt after
adjusting the trim tab.
1 Trim tab
2 Bolt
3 Cap (If equipped)
cC
The trim tab also serves as an anode to
protect the engine from electroche mical
corrosion.
Never paint the trim tab as it will become
ineffective as an anode.
2-13
GB
Boat tends to veer The rear end of trim tab
To the left Turn the left(port side),
(port side) “A” in the figure
To the right Turn the right(starboard side),
(starboard side)
”B” in the figure
404011*
EMU01297
TRIM ANGLE ADJUSTING ROD
The position of the trim angle adjusting
rod determines the minimum trim angle
of the outboard motor in relation to the
transom.
