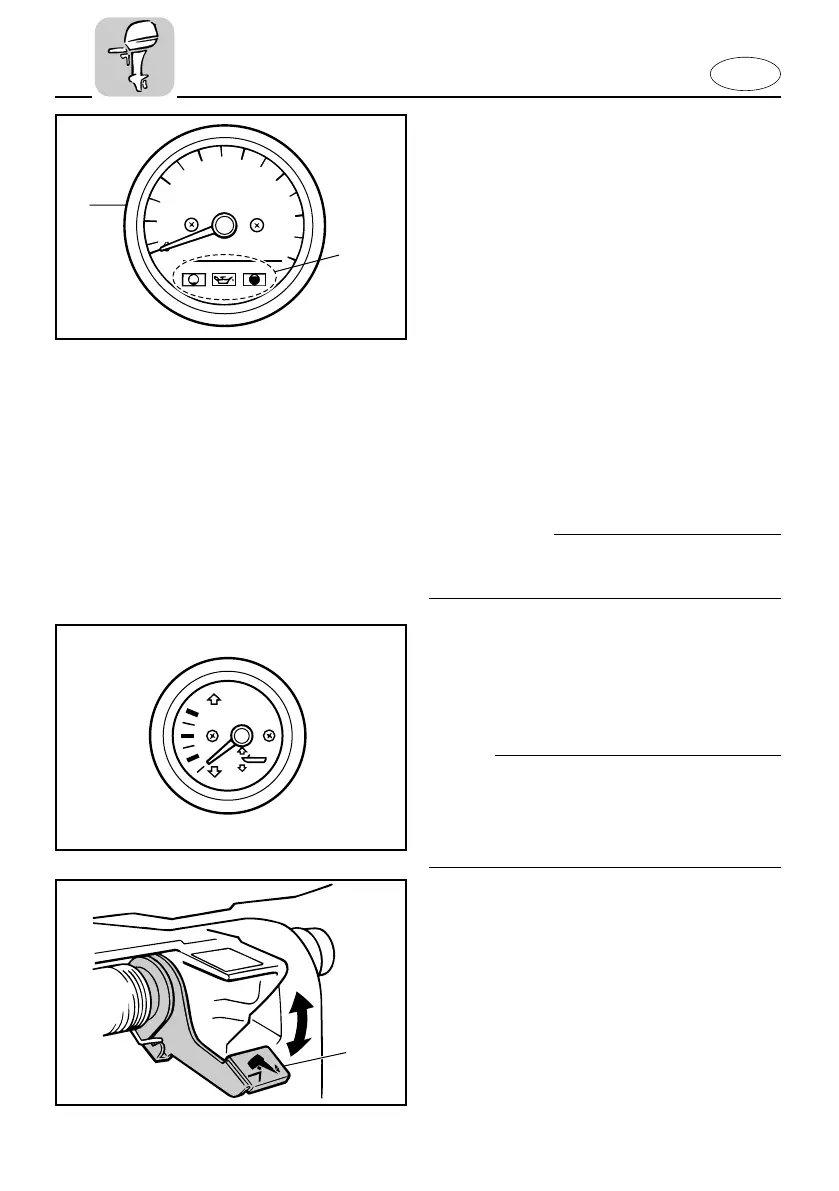

TACHOMETER
This meter contains the following func-
tions,
1 Tachometer
2 Oil level indicator lamp
EMD21010
Tachometer
This meter shows the engine speed.
EMD31110
Oil-level indicator lamp
The lamps on the meter shows the status
of the oil level, refer to “Oil level indica-
tor” in Chapter 3.
cC
Do not operate the engine without oil.
Serious engine damage will occur.
801011
YAMAHA
EMD26010
TRIM METER (for Power trim and tilt
model)
This meter shows the trim angle of your
outboard.
NOTE:
Memorize the trim angles that work best
for your boat under different conditions.
Adjust the trim angle to the desired setting
by operating the power trim and tilt switch.
EMD44010
TILT LOCK MECHANISM (for Manual
tilt model)
The tilt-lock mechanism is used to prevent
reverse thrust from the propeller lifting the
outboard motor when reversing. To lock it,
set the tilt-lock lever in the up position. To
release it, push the tilt-lock lever down.
1 Tilt-lock lever
402036
q
63B-9-78-A0-2 2/17/03 4:26 PM Page 32

Yamaha 40 Specifications

General

Full Throttle RPM Range	5000 - 6000 rpm
Fuel Induction System	EFI (Electronic Fuel Injection)
Starting System	Electric
Displacement	747cc
Prop Shaft Horsepower	40hp
Ignition System	TCI
