Yamaha 5C User Manual

GB
2-1
EMC10010

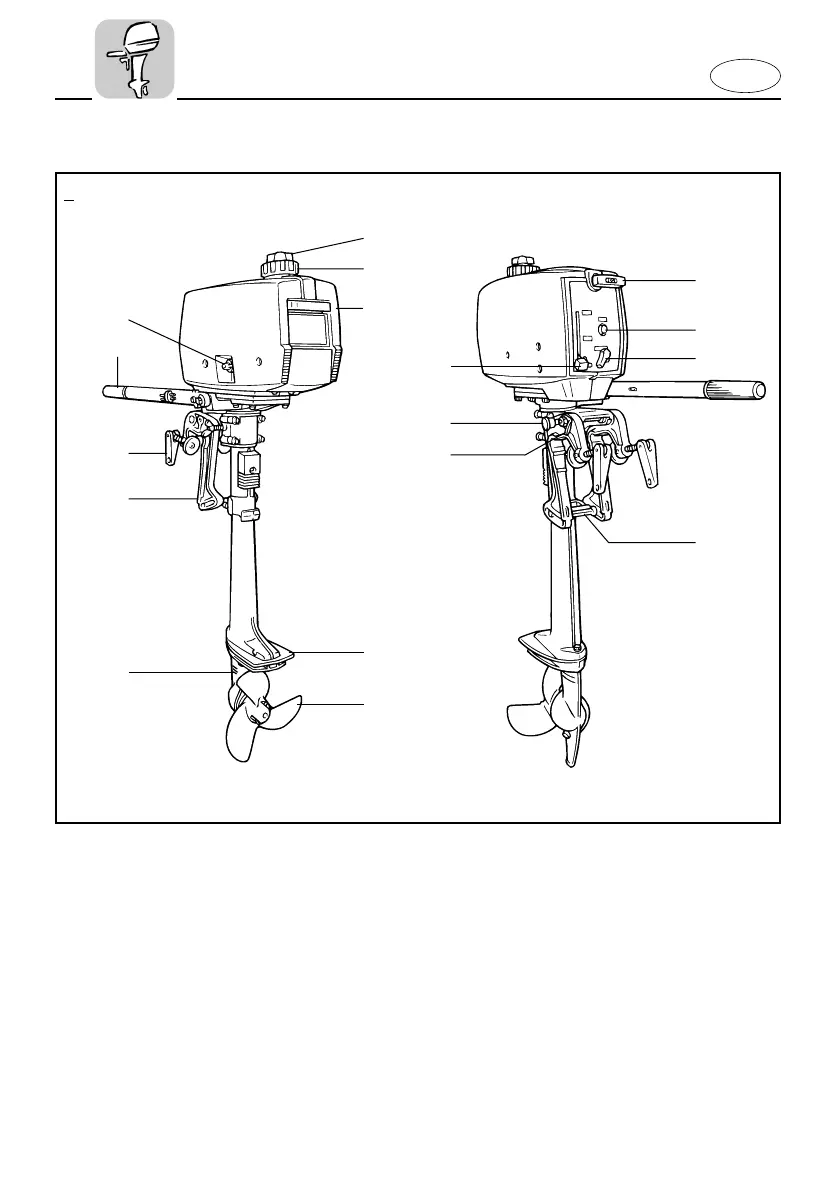

MAIN COMPONENTS
1 Air-vent screw
2 Fuel tank cap
3 Top cowling
4 Anti-cavitation plate
5 Propeller
6 Cooling water inlet
7 Clamp bracket
8 Transom clamp handle
9 Tiller handle
0 Fuel cock lever
q Recoil starter handle
w Engine stop button
e Choke knob
r Trim angle adjusting-rod
t Rope attachment
y Tilt support knob
u Throttle control lever
101221
y
r
t
!0
o
i
u
q
w
e
!7
!6
!5
!1
!2
!3
!4
101222
2
6A1-9-7LA0-2 3/7/02 12:13 PM Page 22

Yamaha 5C Specifications

General

Fuel Induction System	Carburetor
Starting System	Manual
Ignition System	CDI
Gear Ratio	2.08 : 1
Propeller Shaft Horsepower	5 hp
Full Throttle RPM Range	4500 - 5500 rpm
Gear Shift	Forward, Neutral
Cooling	Water
