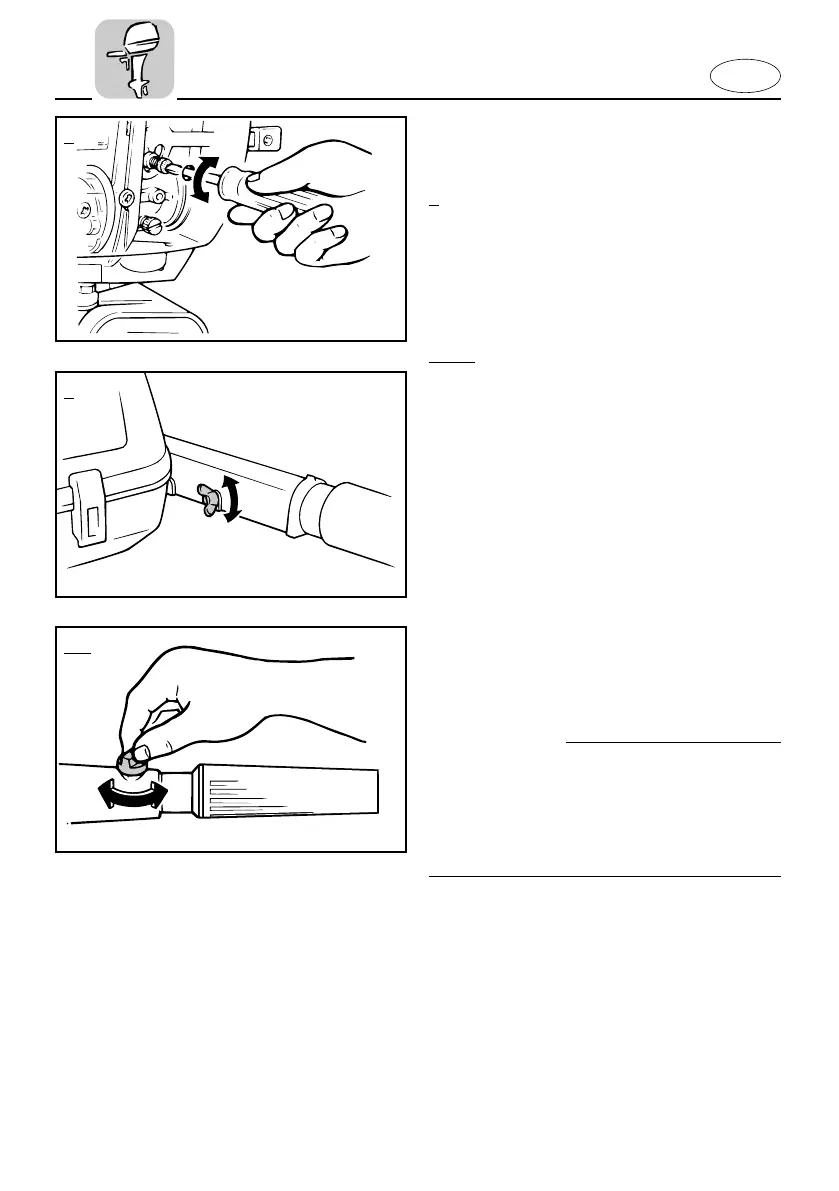

THROTTLE FRICTION ADJUSTMENT
(for Tiller control model)
2
A friction device provides resistance to
movement of the throttle lever. This is
adjustable for operator preference. An
adjusting screw is located within the
aprons.
3/4/5
A friction device in the tiller handle pro-
vides resistance to movement of the
throttle grip. This is adjustable for opera-
tor preference. An adjusting screw/knob is
located within the steering handle.
To increase the resistance:
Turn the adjusting screw/knob clockwise.
To decrease the resistance:
Turn the adjusting screw/knob counter-
clockwise.
When constant speed is desired, tighten
the adjusting screw/knob to maintain the
desired throttle setting.
w
Do not overtighten the friction adjusting
screw/knob. If there is too much resis-
tance, it may be difficult to move throttle
lever/grip, which could result in an acci-
dent.
502014
502015
2
3
4/5
