Connecting the A3000 Outputs
24
Chapter 1 Setting Up
Connecting the Digital Outputs
You can add digital I/O capacity to the A3000 by installing the optional I/O expansion
board (AIEB1 board). The board enables direct digital output of A3000 playback and
digital through-put.
For purposes of compatibility, the AIEB1 board includes two different output types:
OPTICAL OUT (optical fiber) and DIGITAL OUT (coaxial cable). Note that both of these
outputs always produce identical signals.
The digital outputs function as assignable outputs. You can set them to output selected
samples or programs, or you can set them to produce the same output as the STEREO
OUT jacks (by setting the To AsgnOut parameter to DIG&OPT; ☞299).
Important
The OPTICAL connectors are protected by plastic covers. You must remove the cover
before connecting the cable. Please remember to replace the cover when you disconnect
the cable.

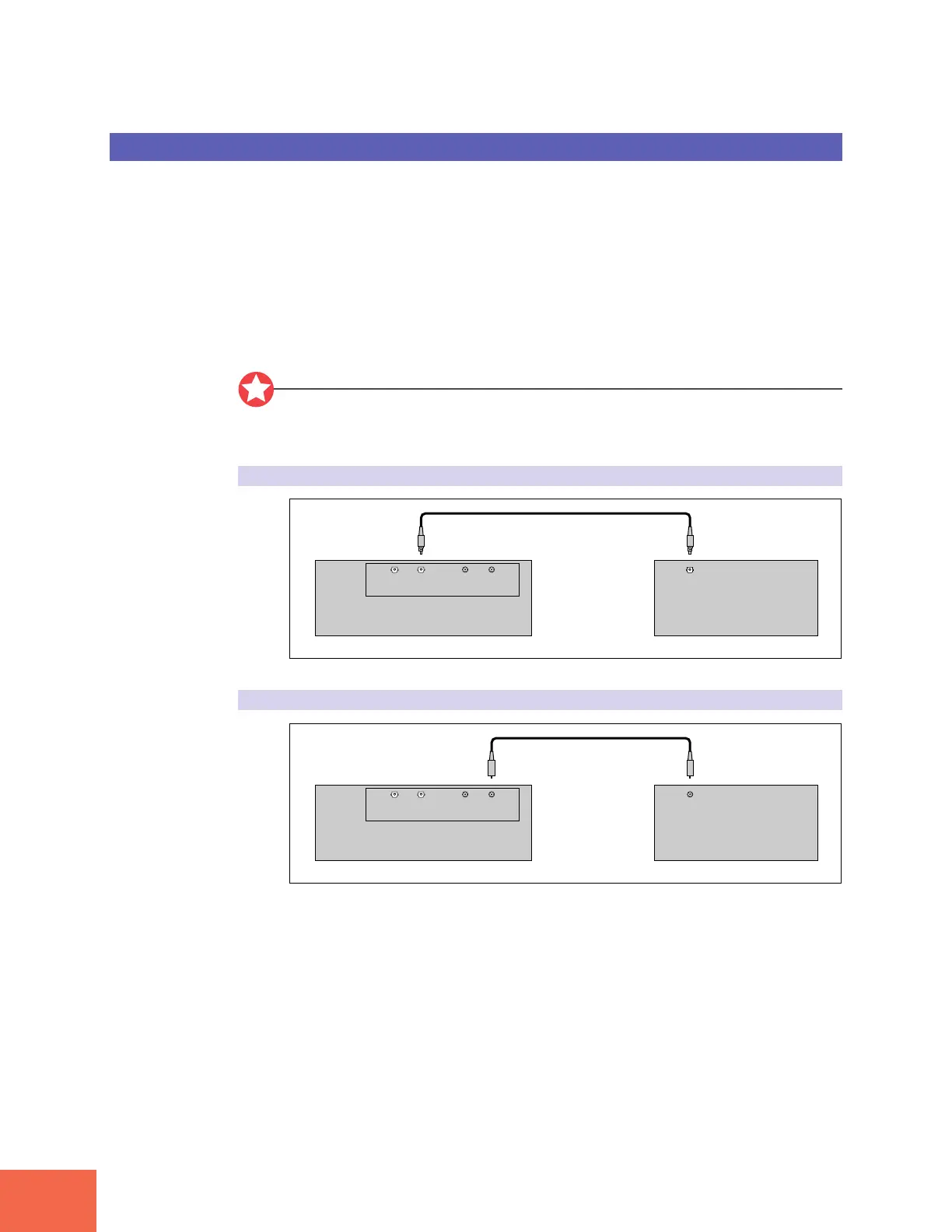

OPTICAL output connection
Digital device
OPTICAL INPUT
OUT
DIGITALOPTICAL
INOUTIN
A3000 Rear Panel
Coaxial output connection
Digital device
DIGITAL INPUT
OUT
DIGITALOPTICAL
INOUTIN
A3000 Rear Panel
To Next Page
