Yamaha A3000 User Manual

Connecting the Audio Inputs
26
Chapter 1 Setting Up

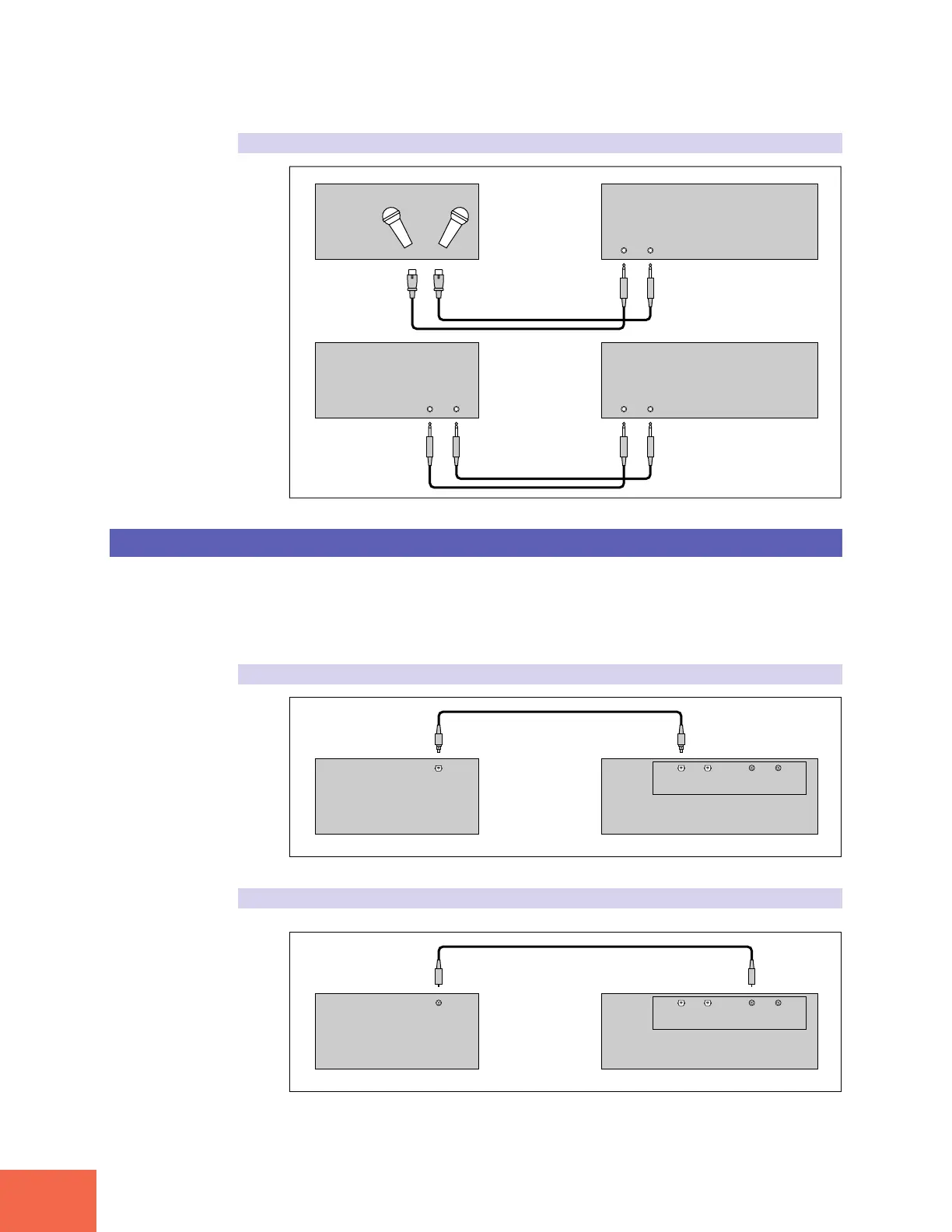

For stereo input
INPUT
LR
A3000 Front PanelTape recorder, synth, etc.
INPUT
LR
A3000 Front PanelMicrophone, etc.
OUTPUT
LR
Connecting to Digital Input
Installation of the optional I/O expansion board (AIEB1 board) lets you record digital
signals directly from a digital input source — such as a CD player or DAT recorder.
For purposes of compatibility, the AIEB1 board includes two different input types: OP-
TICAL (optical fiber) and DIGITAL (coaxial cable).
OPTICAL input connection
OUT
DIGITALOPTICAL
INOUTIN
A3000 Rear PanelDigital device
OPTICAL OUTPUT
Coaxial input connection
OUT
DIGITALOPTICAL
INOUTIN
A3000 Rear PanelDigital device
DIGITAL OUTPUT
