CP33
20
●

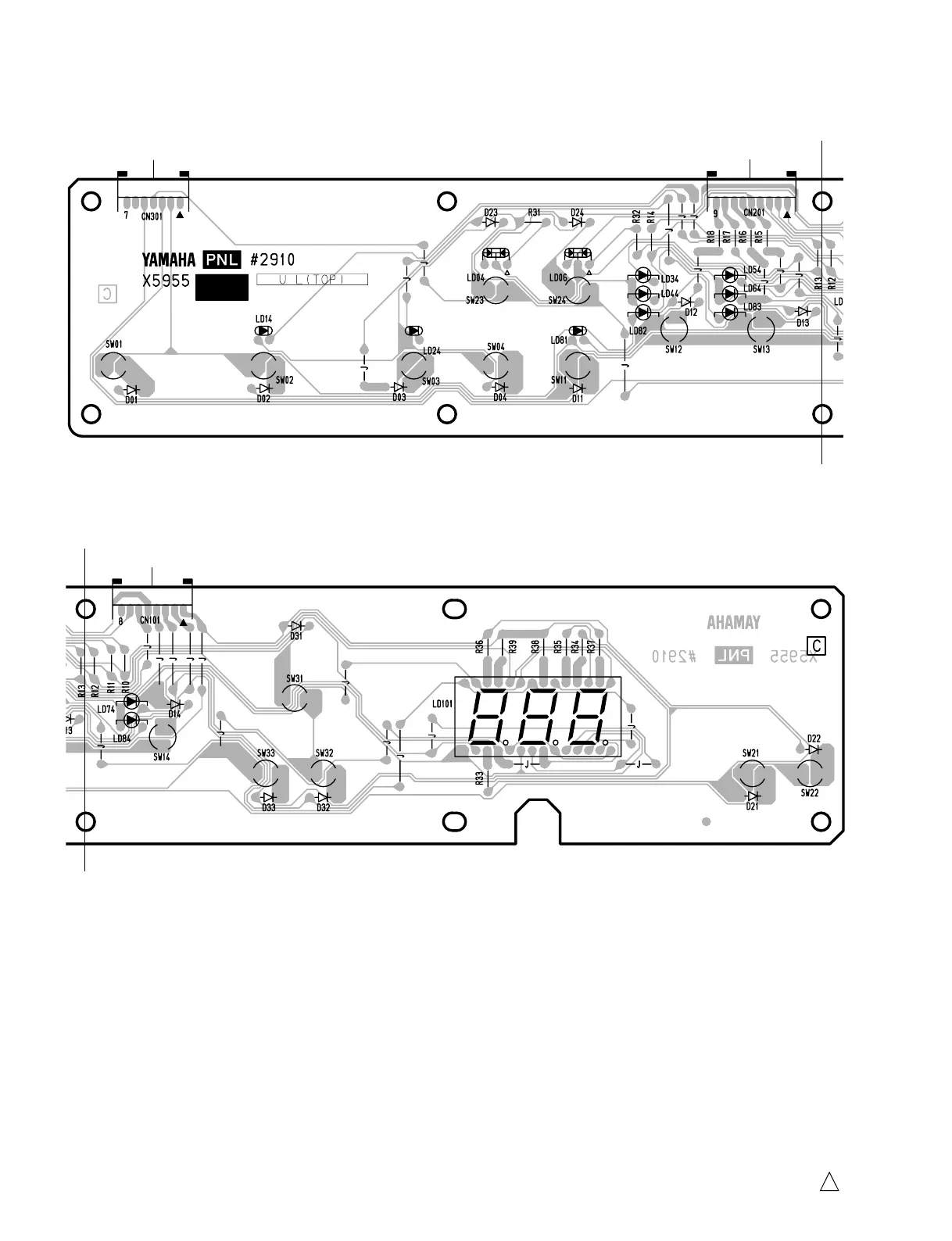

PNL Circuit Board
2NA-WE02140
5
to PNR-CN302
to DM-CN4
to PNR-CN202
to DM-CN5
TRANSPOSE
MASTER EDIT
MASTER
DEMO
A'
A
to PNR-CN102
to DM-CN6
TEMPO/
FUNCTION
TEMPO
FUNCTION
TEMPO/
FUNCTION –
TEMPO/
FUNCTION +
CLICK
ON/OFF
TEMPO/OTHER VALUE
NO/ –
YES/+
A'
A
Component side
（部品側）
