CP33
22
●

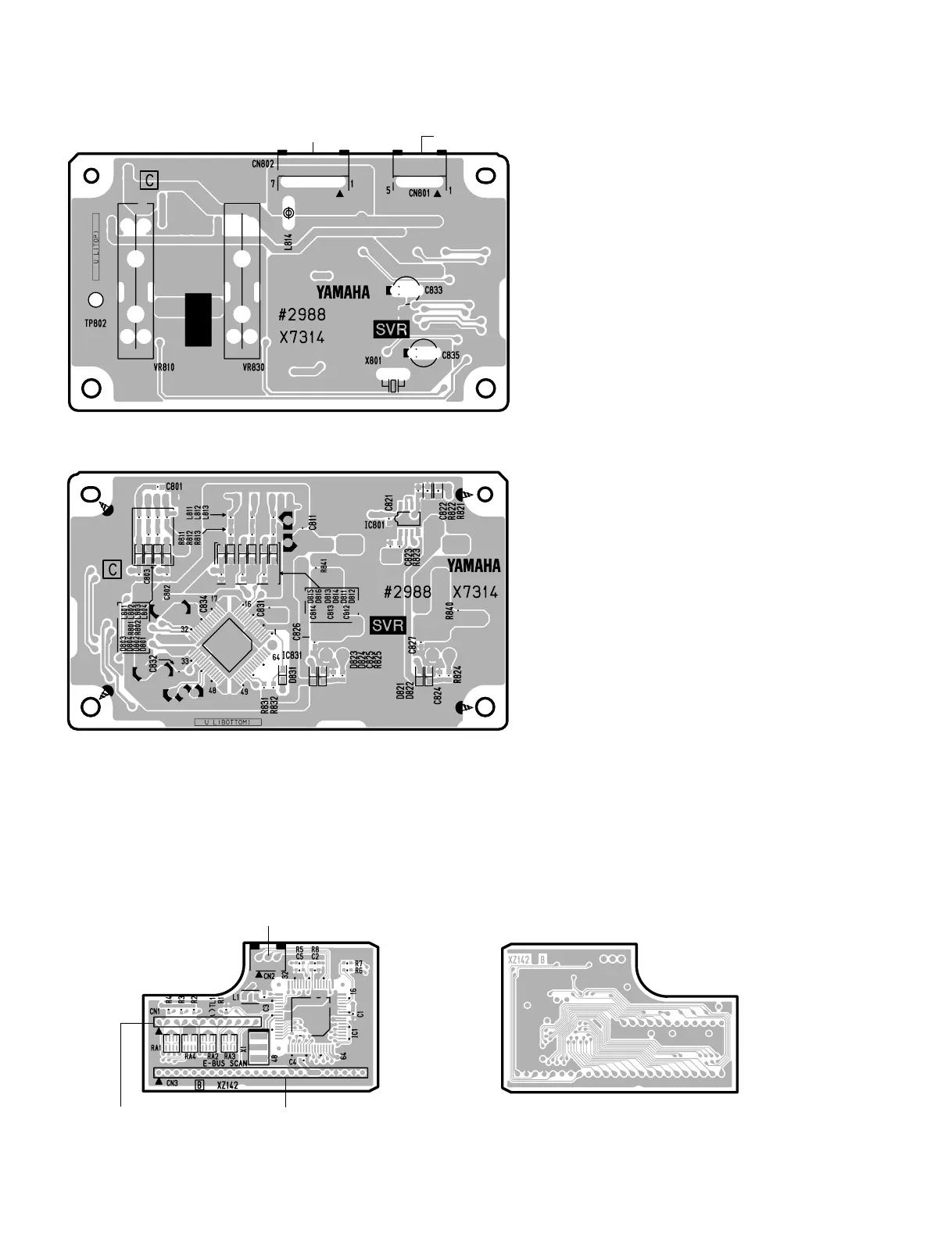

SVR Circuit Board
Pattern side
（パターン側）
Component side
（部品側）
to DM-CN10
(to GHD EBUS L-CN1)
to WHEEL Assembly
ZONE 2ZONE 1
ZONE CONTROL
to GHD EBUS L-CN4to GHD EBUS L-CN5
not installed
●
MK SUB Circuit Board
Pattern side
（パターン側）
Component side
（部品側）
SVR: 2NA-WG40060
MK SUB: 2NA-V658810
