Yamaha CP33 Service Manual

CP33
8

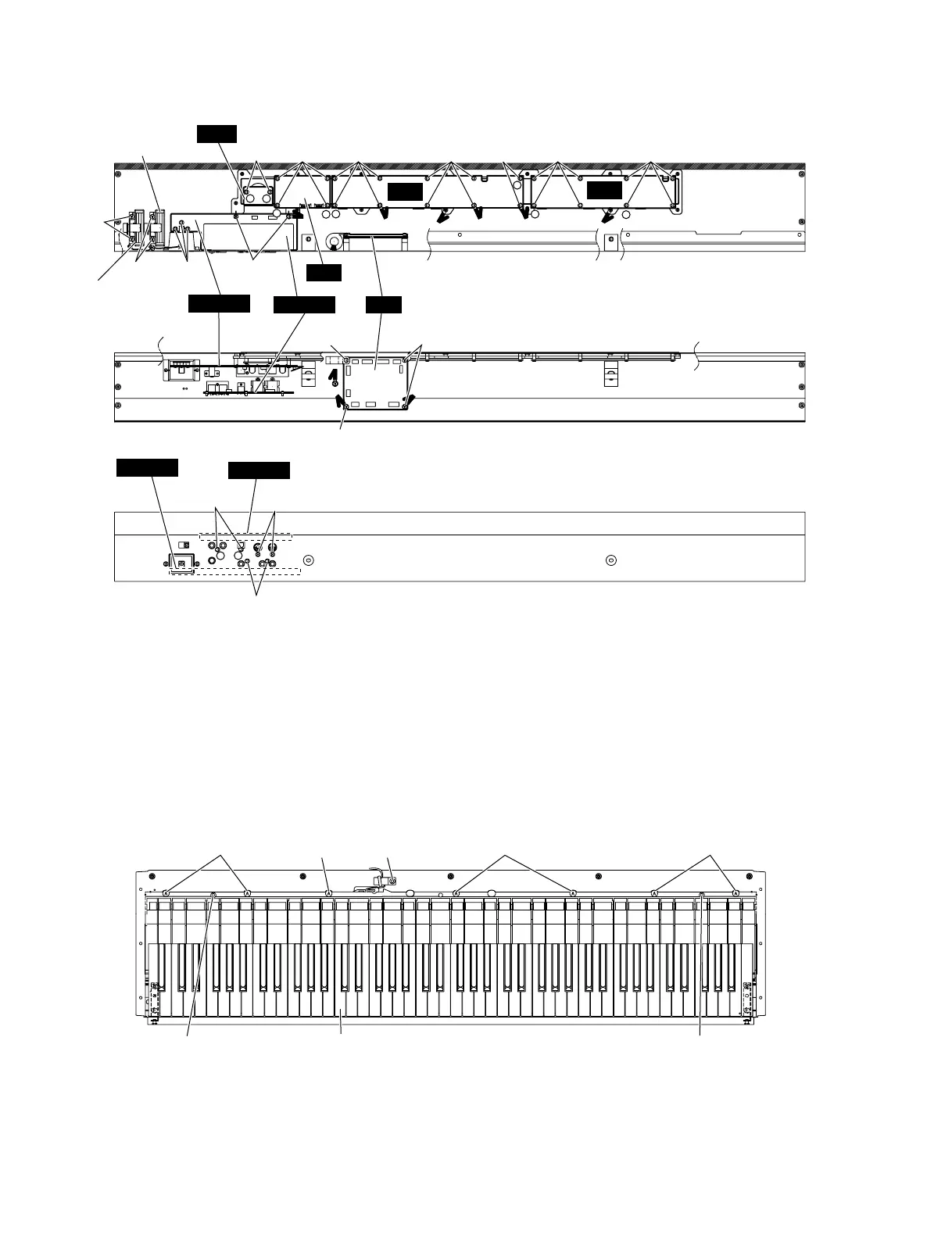

Fig. 3（図3）
● Upper Case Assembly （上ケースAssy）
Fig. 2（図2）
3. Keyboard Assembly
(Time required: About 5 minutes)
3-1 Remove the upper case assembly. (See procedure 1)
3-2 Remove the seven (7) screws marked [40] and the three
(3) screws marked [80]. The keyboard assembly can
then be removed. (Fig. 3)
3. GHDEBUS鍵盤 （所要時間：約 5 分 ）
3-1 上ケースAssyを外します。（1項参照）
3-2 [40]のネジ7本と[80]のネジ3本を外し、GHDEBUS
鍵盤を外します。（図3）
[40]: PanHeadScrew（小ネジ+PAN）5.0X25MFZN2W3SW(WF001500)
[80]: BindHeadTappingScrew-1（TP#1+BIND）4.0X14MFZN2W3(WE971900)
PNL
PNR
Wheel assembly
(PITCH BEND)
[270B]
Wheel assembly
(MODULATION)
[270C]
[410E] [410D] [410B] [410B] [410B] [410C] [410C]
[270A]
[420]
[410A][410A]
[330B]
[320]
[330A]
DJACK
AJACK
SVR
AJACK
DJACK
DM
MVR
1
2
1
2
1
2
1
2
2
1
[270A]
[40]
Keyboard assembly
（GHDEBUS鍵盤）
[40] [40]
[80] [80]
[40]
[80]

Yamaha CP33 Specifications

General

Type	Stage Piano
Number of Keys	88
Polyphony	64
Voices	14
Effects	Reverb, Chorus
Key Action	Graded Hammer
Sound Engine	AWM (Advanced Wave Memory)
EQ	3-band
Connectivity	MIDI In/Out, Sustain Pedal
