Yamaha CP33 - DM Circuit Board

CP33
17
●

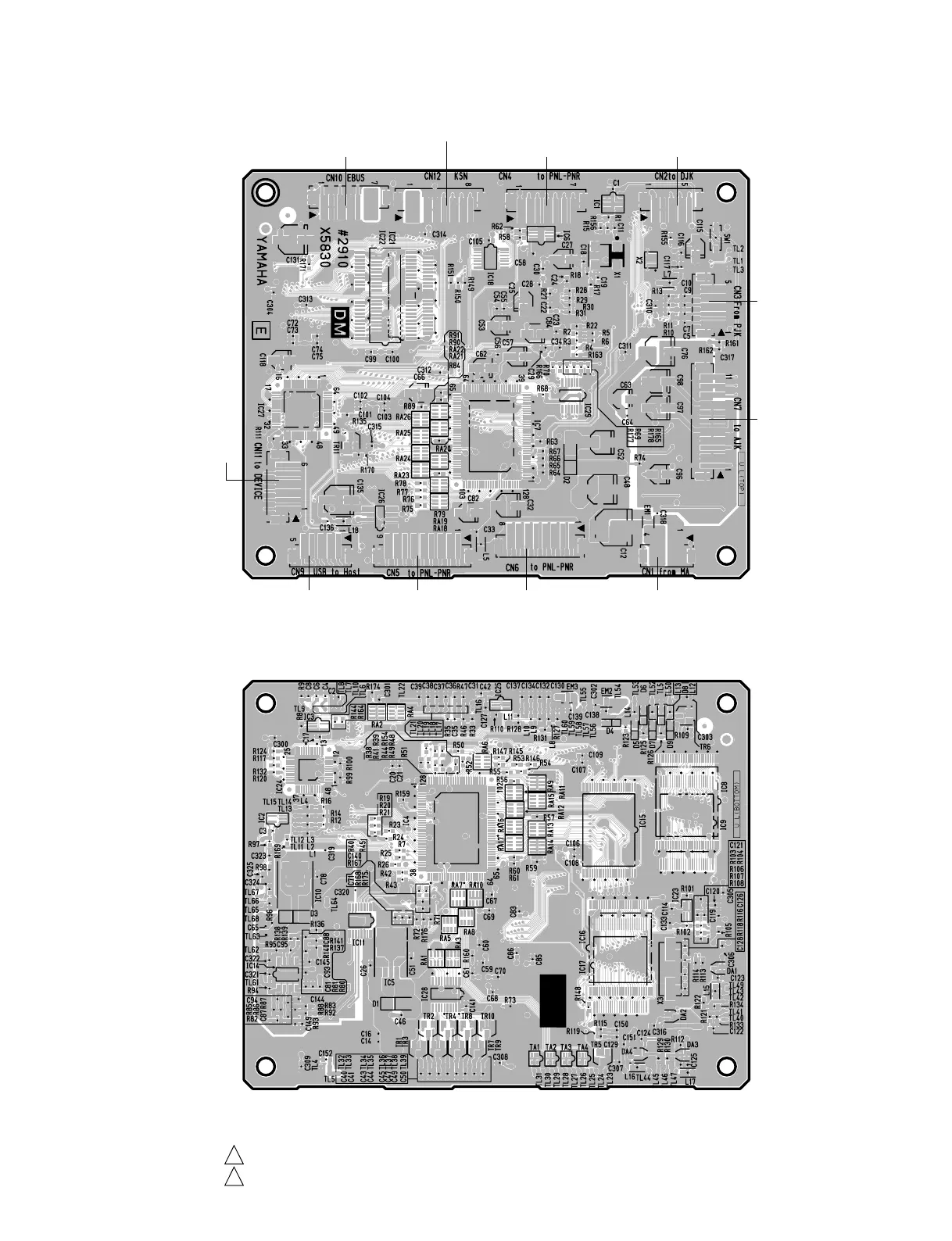

DM Circuit Board
Component side
（部品側）
Pattern side
（パターン側）
2NA-WD97020-1
2NA-WD97020-2
to GHD EBUS L-CN1
to SVR-CN802
to PNL-CN301
(to PNR-CN302)
not installed
to DJACK-CN601
to PNL-CN201
(to PNR-CN202)
to PNL-CN101
(to PNR-CN102)
to DJACK-CN701 to AJACK-CN101
to DJACK-CN501to AJACK-CN301
not installed
3
7
