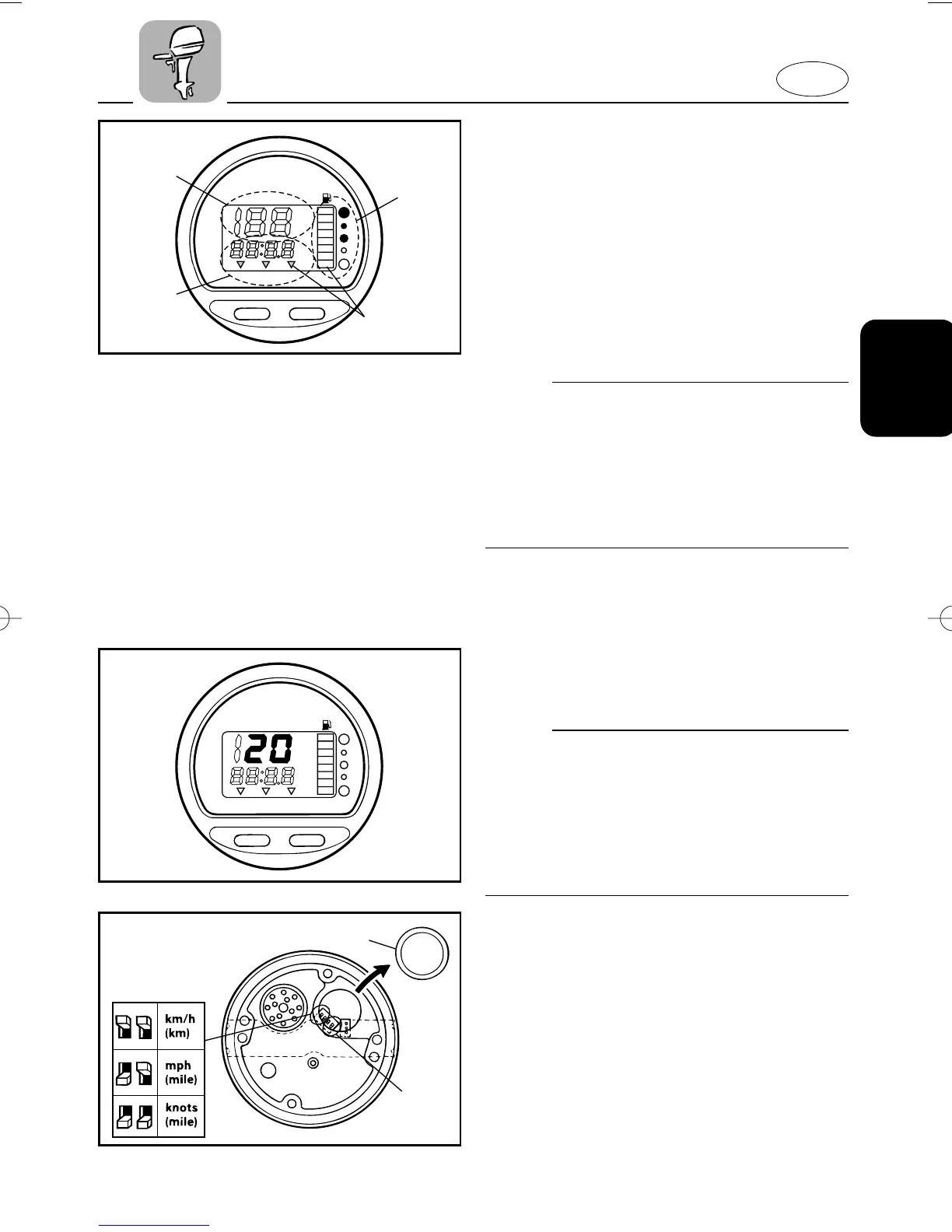

DIGITAL SPEEDOMETER
This meter contains the speedometer, fuel
meter with warning, trip meter, clock and
voltmeter with warning.
1 Speedometer
2 Fuel meter
3 Trip meter/clock/voltmeter
4 Warning indicator
NOTE:
After the main switch is first turned on, all
portions of the meter come on as a check.
After a few seconds, the meters will
change to normal operation. Watch the
meter when turning on the main switch to
make sure all segments come on.
EMU00141
Speedometer
This meter shows the boat speed.
NOTE:
The speedometer displays km/h, mph, or
knots, depending upon operator prefer-
ence. Select the desired unit of measure-
ment by setting the selector switch on the
back of the meter. See the illustration for
settings.
1 Cap
2 Selector switch (for speed unit)
3 Selector switch (for fuel sender)
