Instruments and indicators
45
malfunctions while cruising. Press the “ ”
(set) button to change to normal display, and
the engine trouble-alert indicator will start to
blink.
Return to port and consult a Yamaha dealer
immediately.
EMU31654
6Y8 Multifunction meters
Multifunction meters have 6 kinds of meter
units; tachometer unit (square or round
types), speedometer unit (square type),
speed & fuel meter unit (square or round
types), and fuel management meter (square
type). The indicator system is slightly differ-
ent between the round and square types.
Check the model and type of your unit care-
fully. This manual describes mainly the alert
indicators. For more details on setting me-
ters or changing indicator systems, see the
attached operation manual.
EMU36185
6Y8 Multifunction tachometers
The tachometer shows the engine revolu-
tions per minute. It has functions of trim me-
ter, adjusting trolling speed, cooling
water/engine temperature display, battery
voltage display, total hour/trip hour display,
oil pressure display, water detection alert,
engine trouble alert, and periodic mainte-
nance notification. If the cooling water pres-
sure sensor is installed, the unit can also
show the cooling water pressure display.
However, even if the cooling water pressure
sensor is not installed, the cooling water
pressure display can be shown by connect-
ing an optional sensor to the unit. For the op-
tional sensor, consult your Yamaha dealer.
The tachometer unit is available in round or
square types. Check your tachometer unit
type.

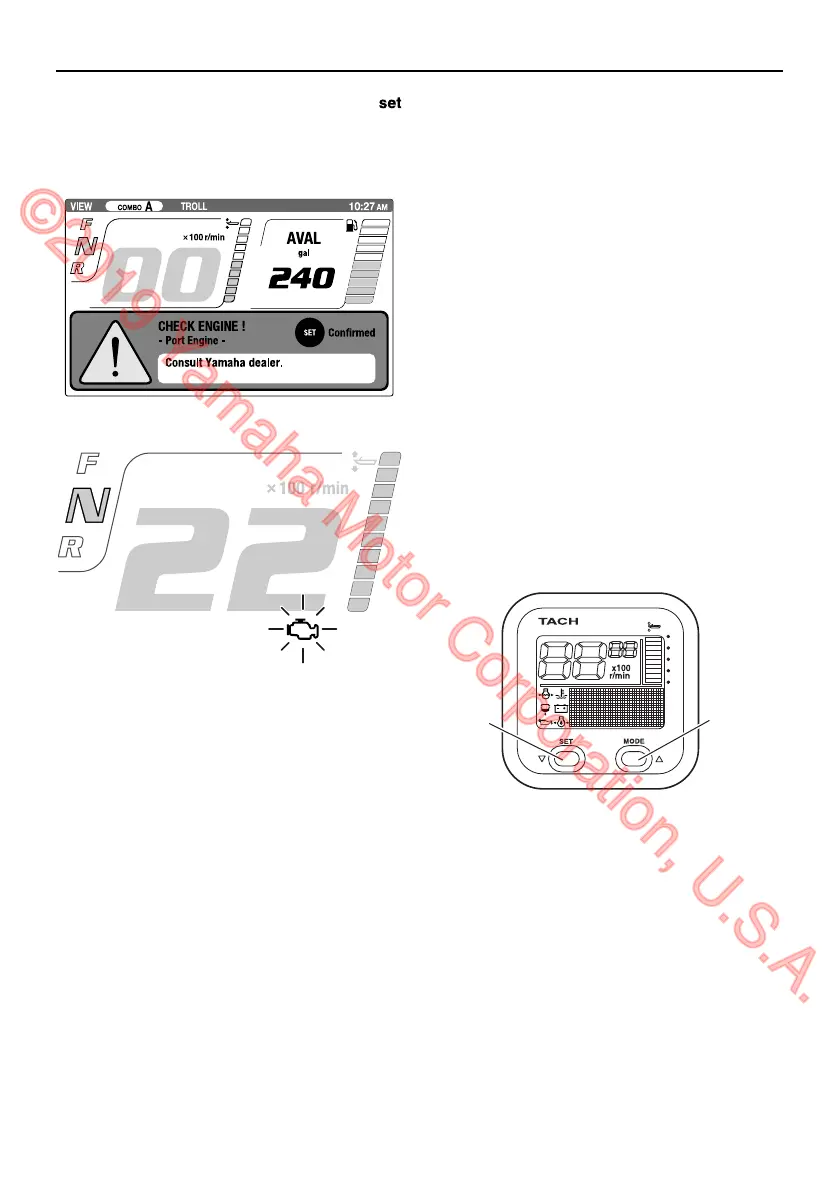

1. Set button
2. Mode button
