Basic components
13
EMU25797

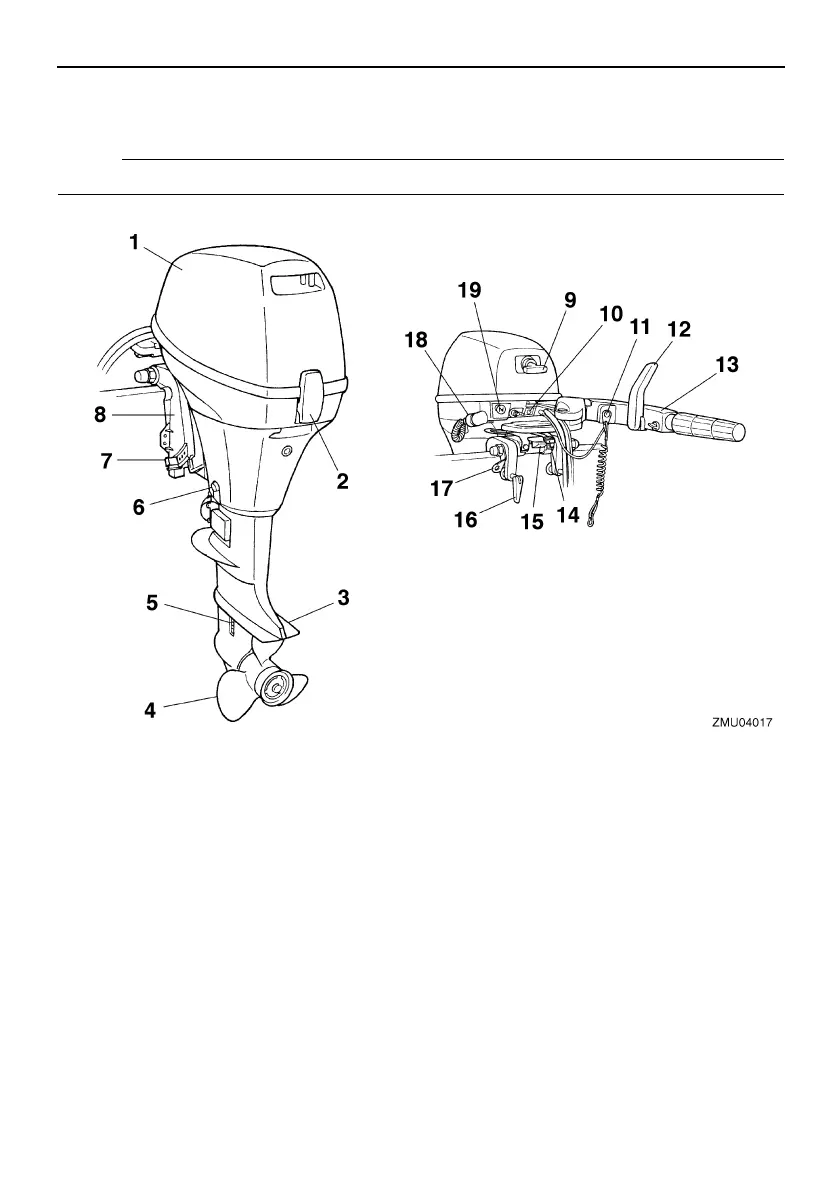

Main components
NOTE:
* May not be exactly as shown; also may not be included as standard equipment on all models.
F6, F8
1. Top cowling
2. Top cowling lock lever
3. Anti-cavitation plate
4. Propeller*
5. Cooling water inlet
6. Drain screw
7. Trim rod
8. Clamp bracket
9. Manual starter handle
10.Warning indicator
11.Engine stop button/Engine stop lanyard
switch
12.Gear shift lever
13.Tiller handle
14.Steering friction lever
15.Tilt lock lever
16.Clamp screw
17.Rope attachment
18.Flushing device
19.Choke knob
U60R13E0.book Page 13 Thursday, April 6, 2006 10:29 AM

Yamaha F8 Specifications

General

Cylinders	2
Fuel Induction System	Carburetor
Ignition System	CDI
Gear Ratio	2.08:1
Engine Type	4-Stroke
Starting System	Manual
Shaft Length	15 in
Fuel Tank Capacity	External
