Basic components
22
EMU26360

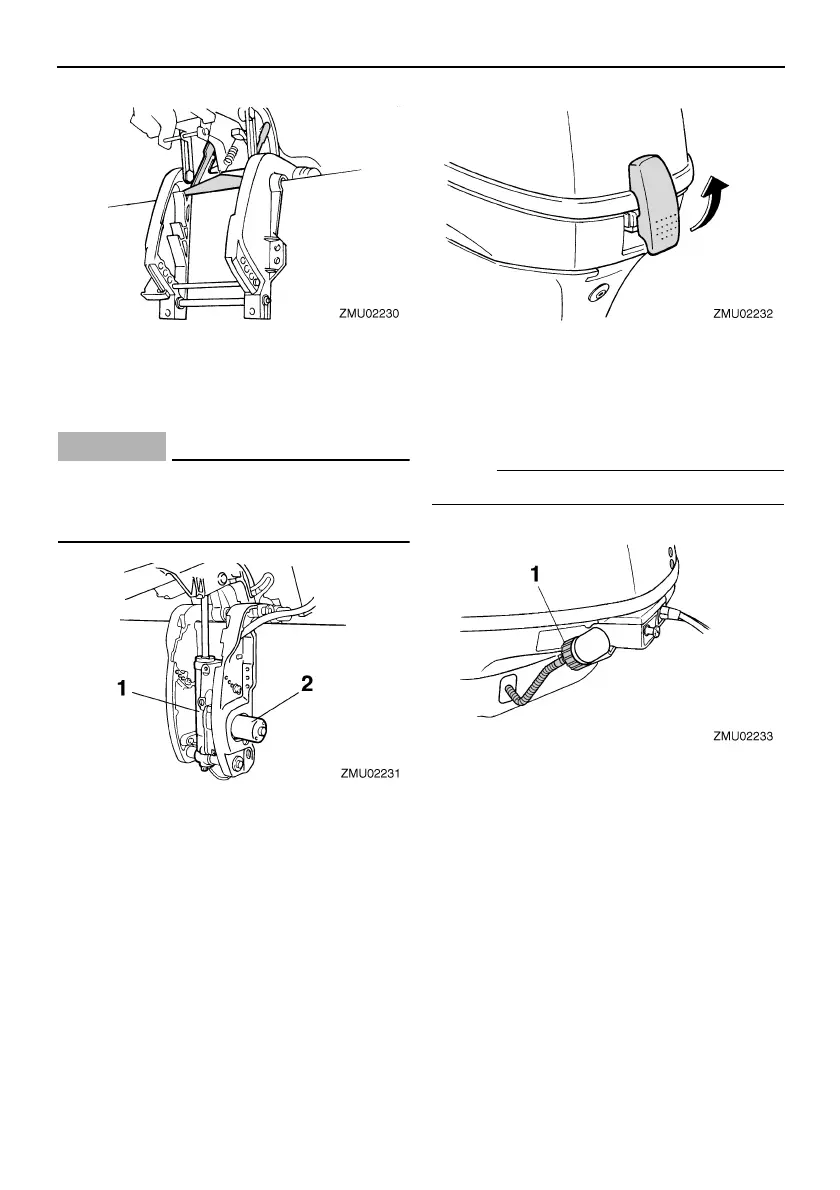

Power tilt unit
This unit tilts the outboard motor up and down
and is controlled with the power tilt switch.
CAUTION:
ECM00630
Do not step on or exert pressure on the
power tilt motor. The power tilt unit could
be damaged as a result.
EMU26382
Top cowling lock lever (pull up type)
To remove the engine top cowling, pull up the
lock lever(s) and lift off the cowling. When in-
stalling the cowling, check to be sure it fits
properly in the rubber seal. Then lock the
cowling by moving the lever(s) downward.
EMU26460
Flushing device
This device is used to clean the cooling water
passages of the motor using a garden hose
and tap water.
NOTE:
For details on usage, see page 52.
EMU26301
Warning indicator
If the engine develops a condition which is
cause for warning, the indicator lights up. For
details on how to read the warning indicator,
see page 23.
1. Power tilt unit
2. Power tilt motor
1. Flushing device
U60R13E0.book Page 22 Thursday, April 6, 2006 10:29 AM
