Basic components
19

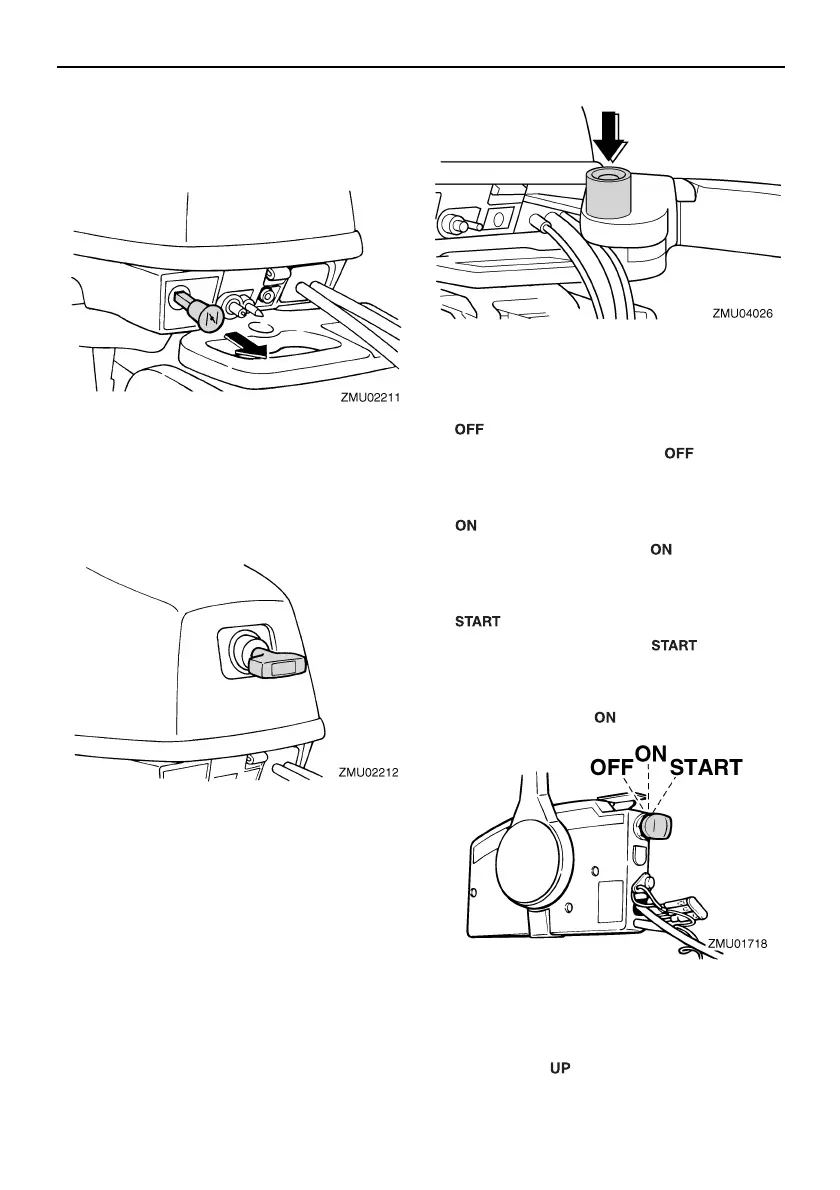

EMU26011
Choke knob for pull type
To supply the engine with the rich fuel mixture
required to start, pull out this knob.
EMU26070
Manual starter handle
To start the engine, first gently pull the handle
out until resistance is felt. From that position,
then pull the handle straight out quickly to
crank the engine.
EMU26080
Starter button
To start the engine with the electric starter,
push the starter button.
EMU26090
Main switch
The main switch controls the ignition system;
its operation is described below.
● “” (off)
With the main switch in the “” (off) posi-
tion, the electrical circuits are off, and the key
can be removed.
● “” (on)
With the main switch in the “” (on) position,
the electrical circuits are on, and the key can-
not be removed.
● “” (start)
With the main switch in the “” (start) po-
sition, the starter motor turns to start the en-
gine. When the key is released, it returns
automatically to the “” (on) position.
EMU26102
Power tilt switch
The power tilt system adjusts the outboard
motor angle in relation to the transom. Push-
ing the switch “” (up) tilts the outboard mo-
