Basic components
21
NOTE:
● Check the tiller handle for smooth move-
ment when the lever is turned to the star-
board side “B”.
● Do not apply lubricants such as grease to
the friction areas of the steering friction ad-
juster.
EMU26261

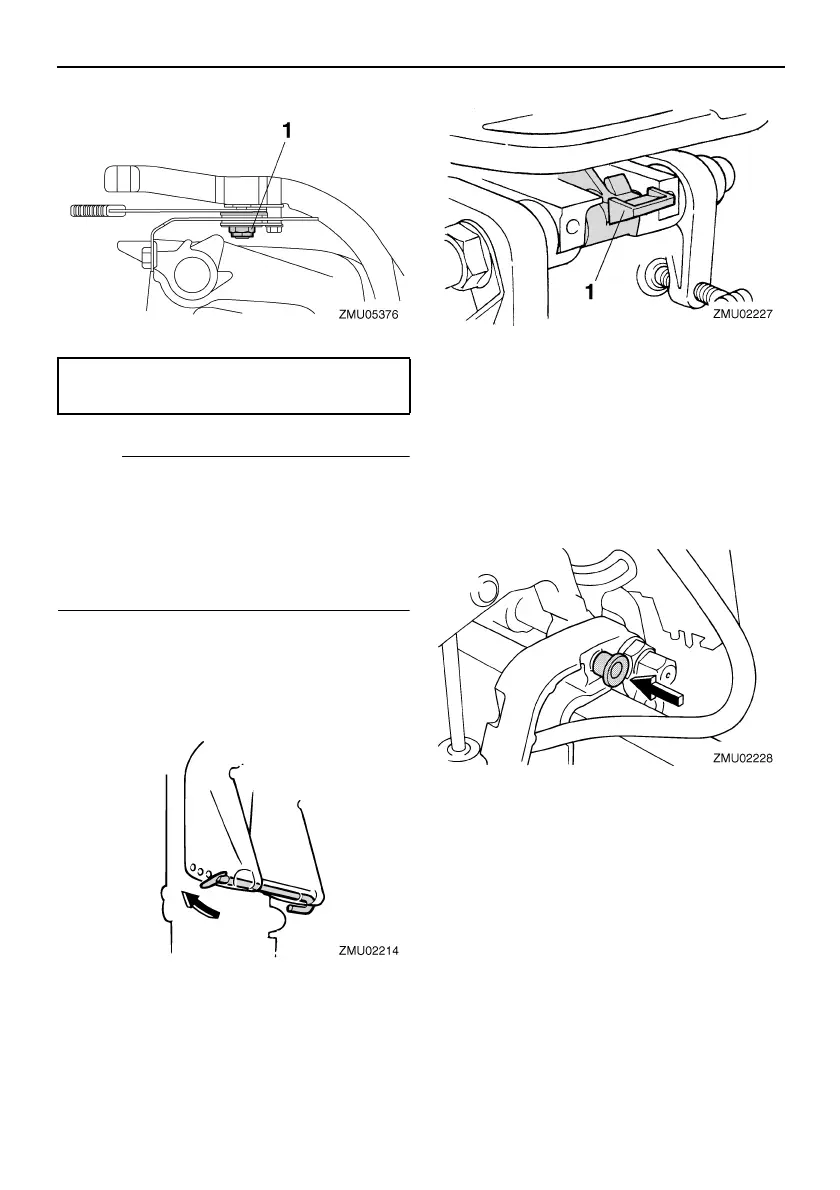

Trim rod (tilt pin)
The position of the trim rod determines the
minimum trim angle of the outboard motor in
relation to the transom.
EMU30530
Tilt lock mechanism
The tilt lock mechanism is used to prevent the
outboard motor from lifting out of the water
when in reverse gear.
To lock it, set the tilt lock lever in the lock po-
sition. To release, push the tilt lock lever in the
release position.
EMU26320
Tilt support knob
To keep the outboard motor in the tilted up po-
sition, push the tilt support knob under the
swivel bracket.
EMU26330
Tilt support bar
The tilt support bar keeps the outboard motor
in the tilted up position.
1. Nut
Nut tightening torque:
6.0 Nm (4.4 ft-lb) (0.61 kgf-m)
1. Tilt lock lever
U60R13E0.book Page 21 Thursday, April 6, 2006 10:29 AM
