Yamaha MT-09 SP User Manual

Periodic maintenance and adjustment
9-18
9
EAU55645
Adjusting the clutch lever free
play

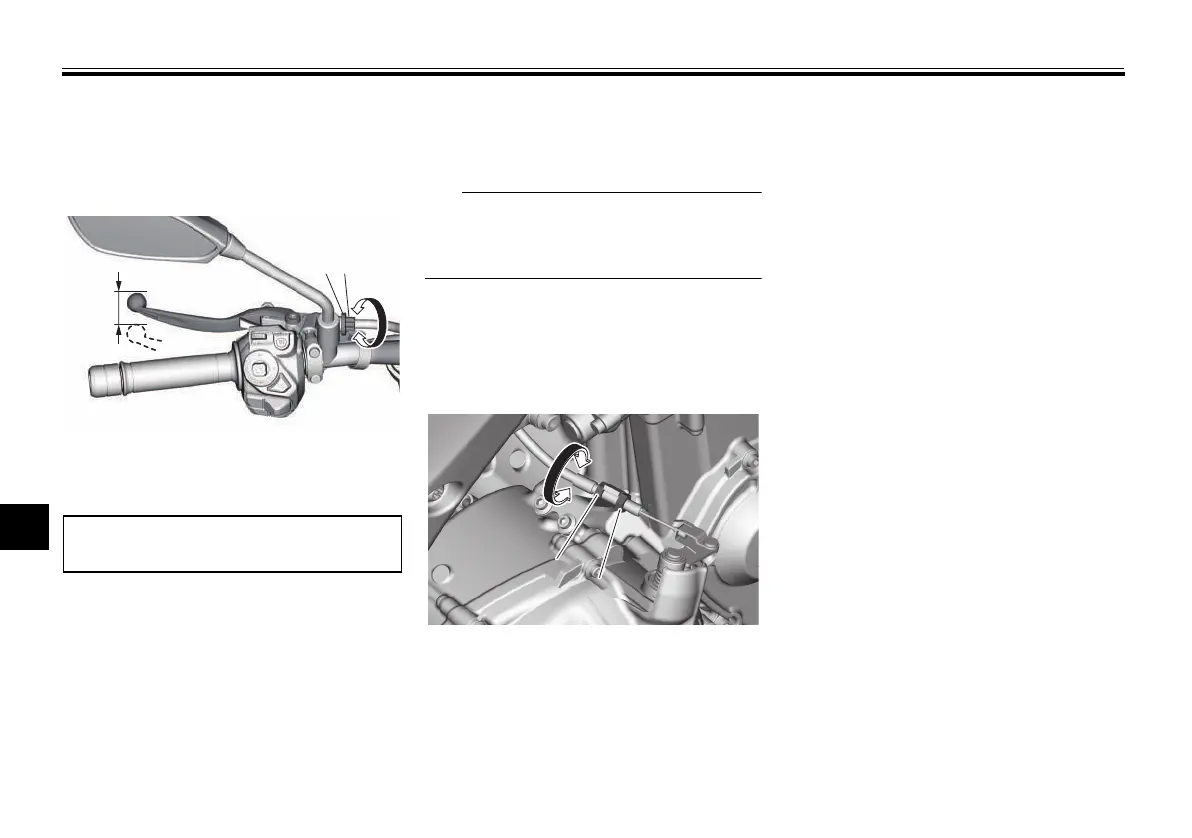

Measure the clutch lever free play as
shown.
Periodically check the clutch lever free
play and, if necessary, adjust it as fol-
lows.
1. Loosen the locknut at the clutch
lever.
2. To increase the clutch lever free
play, turn the clutch lever free play
adjusting bolt in direction (a). To
decrease the clutch lever free
play, turn the adjusting bolt in di-
rection (b).
TIP
If the specified clutch lever free play
could be obtained as described above,
skip steps 3–6.
3. Fully turn the adjusting bolt at the
clutch lever in direction (a) to loos-
en the clutch cable.
4. Loosen the locknut at the crank-
case.
5. To increase the clutch lever free
play, turn the clutch lever free play
adjusting nut in direction (a). To
decrease the clutch lever free
play, turn the adjusting nut in di-
rection (b).
6. Tighten the locknut at the crank-
case.
7. Tighten the locknut at the clutch
lever.
1. Clutch lever free play adjusting bolt
2. Locknut (clutch lever)
3. Clutch lever free play
Clutch lever free play:
5.0–10.0 mm (0.20–0.39 in)
3
2 1
(a)(a)
(b)(b)
(a)
(b)
1. Locknut (crankcase)
2. Clutch lever free play adjusting nut
11
22
(b)(b)(b)
(a)(a)(a)
UBMME0E0.book Page 18 Tuesday, March 12, 2024 2:37 PM

Yamaha MT-09 SP Specifications

General

Displacement	889cc
Bore x Stroke	78.0 mm x 62.1 mm
Compression Ratio	11.5:1
Maximum Torque	93.0 Nm (9.5 kg-m) @ 7, 000 rpm
Fuel System	Fuel Injection
Starter System	Electric
Transmission	6-speed
Final Drive	Chain
Length	2, 090 mm
Height	1, 190 mm
Seat Height	825 mm
Wheelbase	1, 430 mm
Ground Clearance	140 mm
Wet Weight	193 kg
Fuel Tank Capacity	14 L
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Power	119 PS (87.5 kW) @ 10, 000 rpm
Front Brakes	Hydraulic dual disc, 298 mm
Rear Brakes	Hydraulic single disc, 245 mm
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
