Instrument and control functions
6-48
6
TIP
 When turning the adjuster in direc-
tion (a), the 0 click position and the
1 click position may be the same.
 When turning the adjuster in direc-
tion (b), it may click beyond the
stated specifications, however
such adjustments are ineffective
and may damage the suspension.
EAU83552

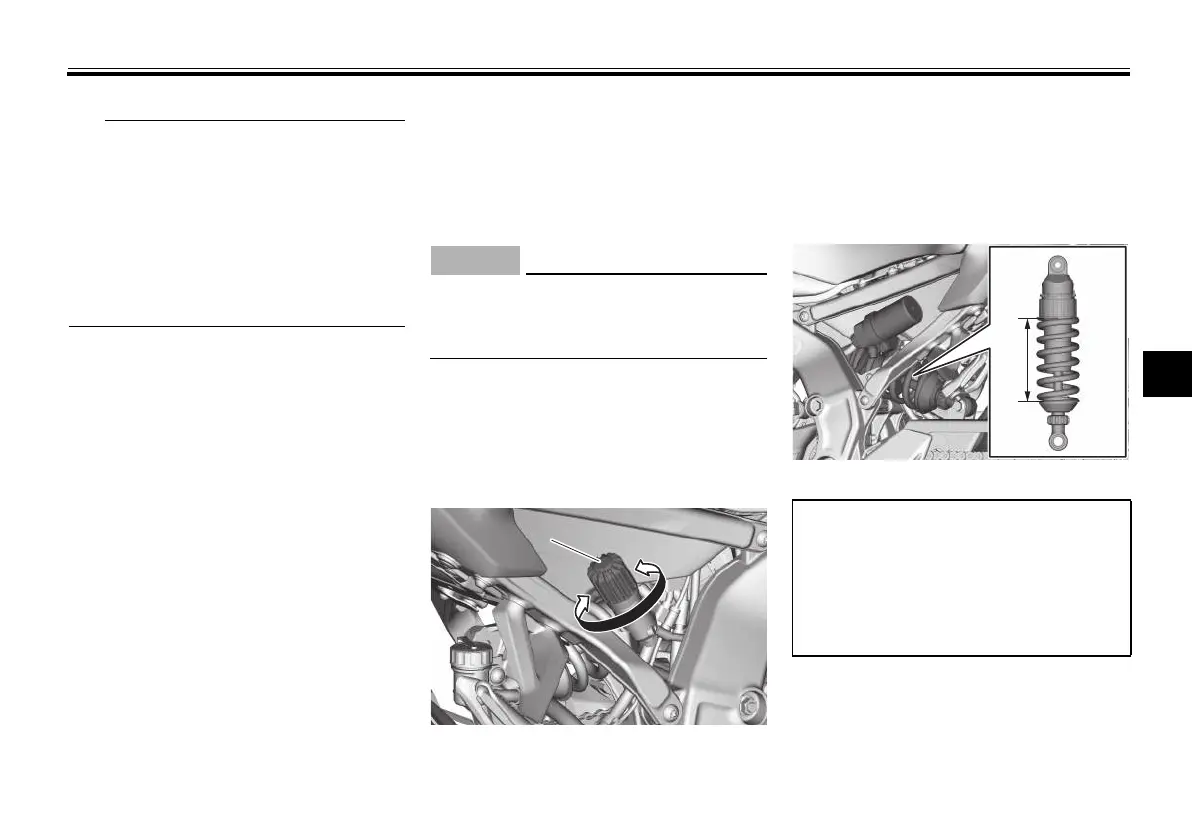

Adjusting the shock absorber
assembly
The shock absorber assembly has ad-
justers for spring preload, rebound
damping, and compression damping.
NOTICE
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Spring preload
Turn the adjuster in direction (a) to in-
crease the spring preload.
Turn the adjuster in direction (b) to de-
crease the spring preload.
The spring preload setting is deter-
mined by measuring distance A,
shown in the illustration. The shorter
the distance A is, the higher the spring
preload; the longer distance A is, the
lower the spring preload.
Rebound damping force
Turn the adjuster in direction (a) to in-
crease the rebound damping force.
1. Spring preload adjuster
(a)(a)
(b)(b)
(a)
(b)
11
1. Distance A
Spring preload setting:
Minimum (soft):
Distance A = 154.5 mm (6.08 in)
Standard:
Distance A = 150.0 mm (5.91 in)
Maximum (hard):
Distance A = 146.5 mm (5.77 in)
1
UBMME0E0.book Page 48 Tuesday, March 12, 2024 2:37 PM

Yamaha MT-09 SP Specifications

General

Displacement	889cc
Bore x Stroke	78.0 mm x 62.1 mm
Compression Ratio	11.5:1
Maximum Torque	93.0 Nm (9.5 kg-m) @ 7, 000 rpm
Fuel System	Fuel Injection
Starter System	Electric
Transmission	6-speed
Final Drive	Chain
Length	2, 090 mm
Height	1, 190 mm
Seat Height	825 mm
Wheelbase	1, 430 mm
Ground Clearance	140 mm
Wet Weight	193 kg
Fuel Tank Capacity	14 L
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Power	119 PS (87.5 kW) @ 10, 000 rpm
Front Brakes	Hydraulic dual disc, 298 mm
Rear Brakes	Hydraulic single disc, 245 mm
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
