INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU11482
Engine trouble warning light “”
This warning light comes on if a prob-
lem is detected in the electrical circuit
monitoring the engine. If this occurs,
have a Yamaha dealer check the self-
diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key
to “”. If the warning light does not
come on for a few seconds, then go off,
have a Yamaha dealer check the elec-
trical circuit.
EAU11591
Speedometer
UK ONLY
The speedometer shows the riding
speed.
EAUM1471
Fuel gauge
The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the remaining fuel in
the tank reaches approximately 2.7 L
(0.72 US gal, 0.60 Imp.gal), the fuel
level warning light will come on and the
multi-function display will automatically
change to the “Trip/fuel” mode. (See
page 3-4.) If this occurs, refuel as soon
as possible.
TIP
Do not allow the fuel tank to empty itself
completely.

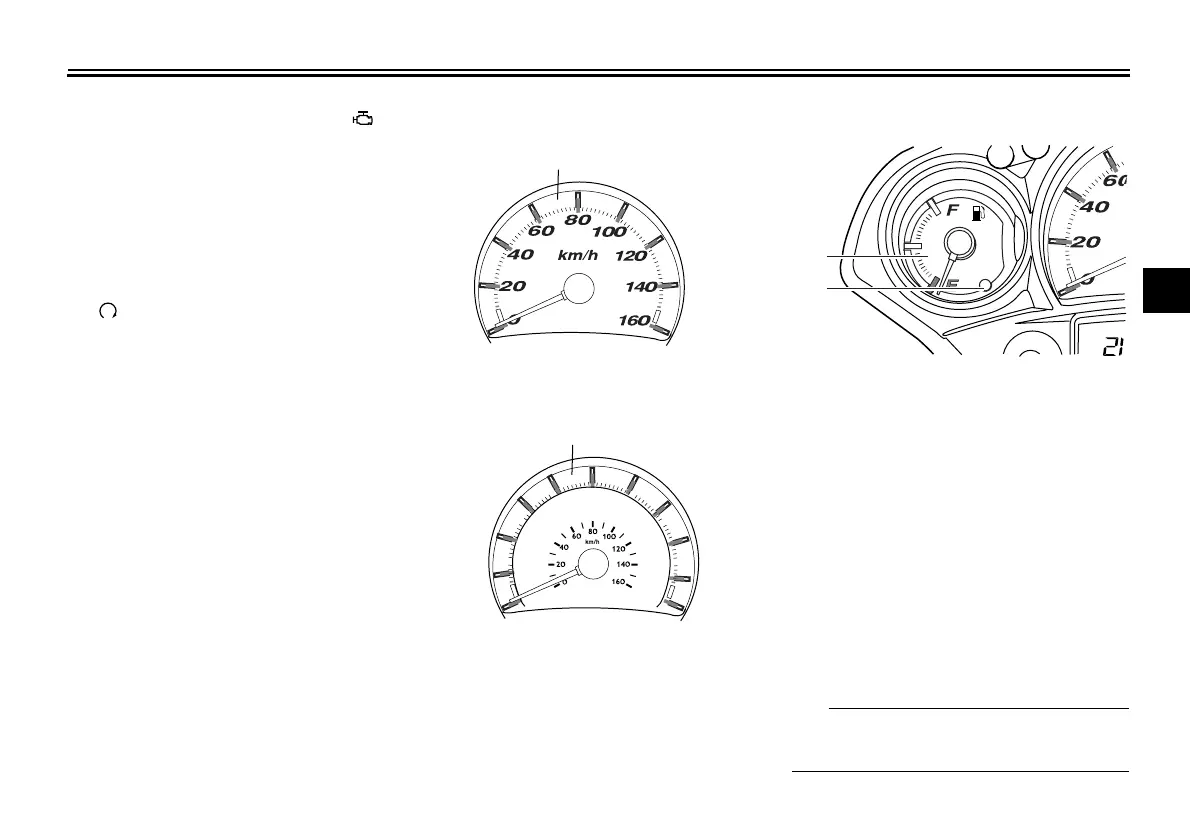

1. Speedometer
1. Speedometer
1
ZAUM0636
1
mph
0
10
20
30
40
50
60
70
80
90
100
ZAUM0637
1. Fuel gauge
2. Fuel level warning light
1
2
ZAUM0638
