INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
EAU14881

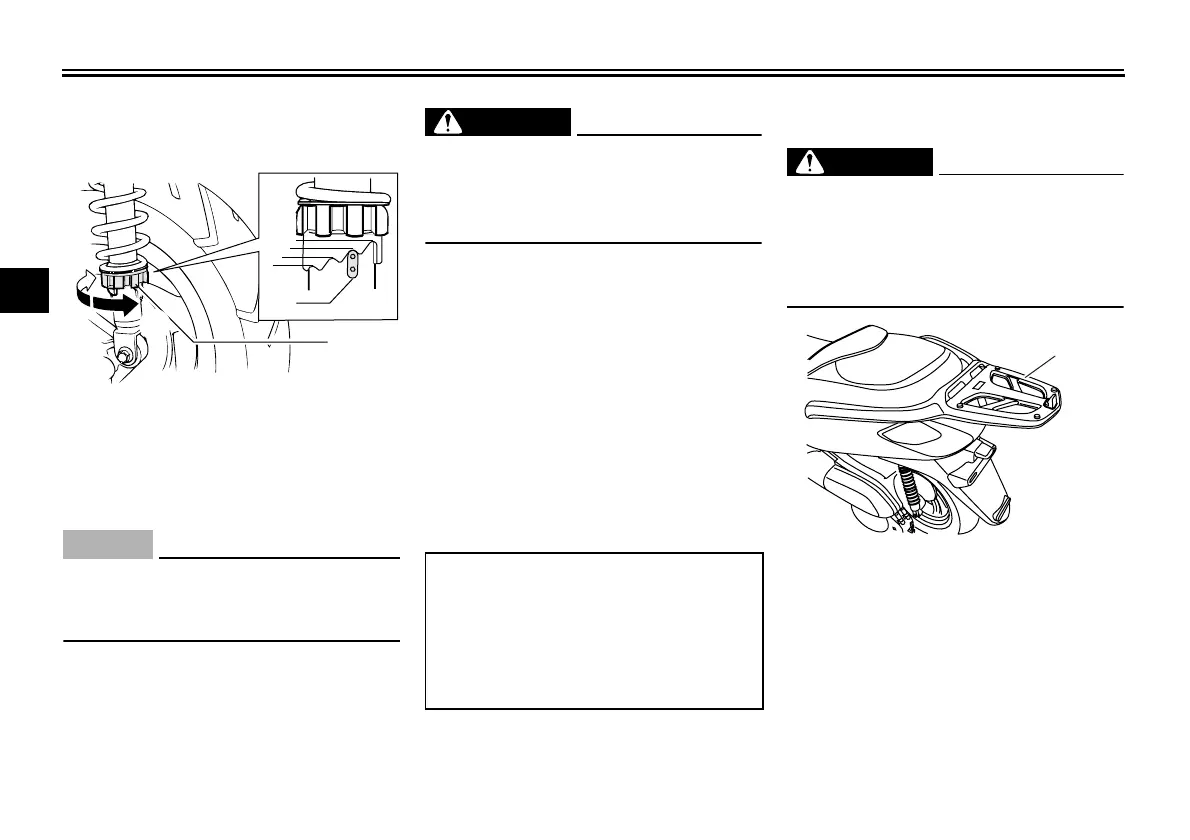

Adjusting the shock absorber
assemblies
Each shock absorber assembly is
equipped with a spring preload adjust-
ing ring.
NOTICE
ECA10101
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
WARNING
EWA10210
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock ab-
sorber assembly in direction (a). To de-
crease the spring preload and thereby
soften the suspension, turn the adjust-
ing ring on each shock absorber as-
sembly in direction (b).
Align the appropriate notch in the ad-
justing ring with the position indicator
on the shock absorber.
EAU15112
Carrier (if applicable)
WARNING
EWA10171
● Do not exceed the load limit of 5
kg (11 lb) for the carrier.
● Do not exceed the maximum
load of 185 kg (408 lb) for the ve-
hicle.
1. Spring preload adjusting ring
2. Position indicator
1
2
3
4
1
2
(b)
(a)
ZAUM0414
Spring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
4
1. Carrier
ZAUM0798
1
U5B2E1E0.book Page 13 Tuesday, July 22, 2008 2:49 PM
