INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU12172

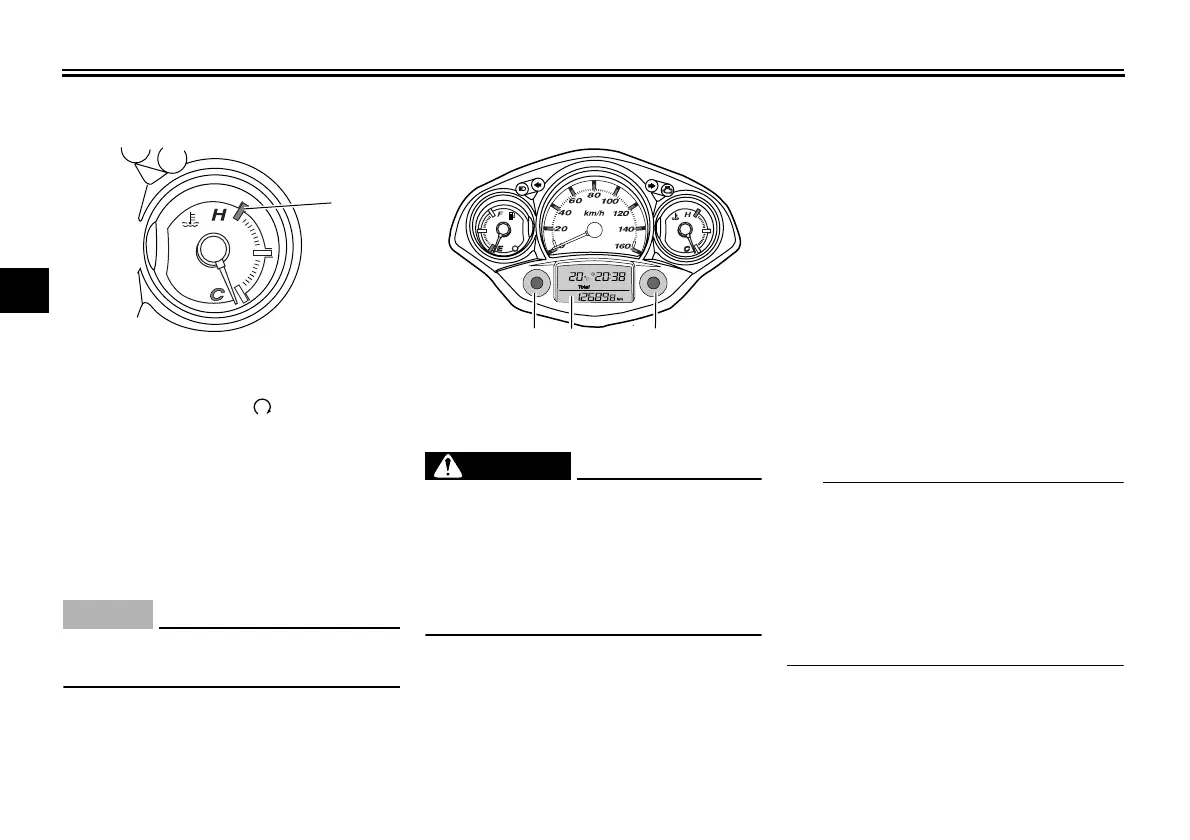

Coolant temperature gauge
With the key in the “” position, the
coolant temperature gauge indicates
the temperature of the coolant. The
coolant temperature varies with chang-
es in the weather and engine load. If
the needle reaches or enters the red
zone, stop the vehicle and let the en-
gine cool. (See page 6-29.)
NOTICE
ECA10021
Do not continue to operate the en-
gine if it is overheating.
EAUM2480
Multi-function display
WARNING
EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
The multi-function display is equipped
with the following:
● an odometer (which shows the to-
tal distance traveled)
● two tripmeters (which show the
distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to ze-
ro, and the average speed traveled
during this time)
● a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)
● a clock
● an ambient temperature display
● an oil change indicator (which
comes on when the engine oil
should be changed)
TIP
● For the UK, the distance traveled
is displayed in miles and the tem-
perature reading is displayed in °F.
● For other countries, the distance
traveled is displayed in kilometers
and the temperature reading is dis-
played in °C.
1. Red zone
1
ZAUM0639
1. “MODE” button
2. Multi-function display
3. “SET” button
1
2
3
ZAUM0640
U5B2E1E0.book Page 3 Tuesday, July 22, 2008 2:49 PM
