INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
● Do not keep anything valuable
or breakable in the storage com-
partment.
To store a helmet in the storage com-
partment, place the helmet with the
front facing backward.
TIP
● Some helmets cannot be stored in
the storage compartment because
of their size or shape.
● Do not leave your scooter unat-
tended with the seat open.
EAUM2490

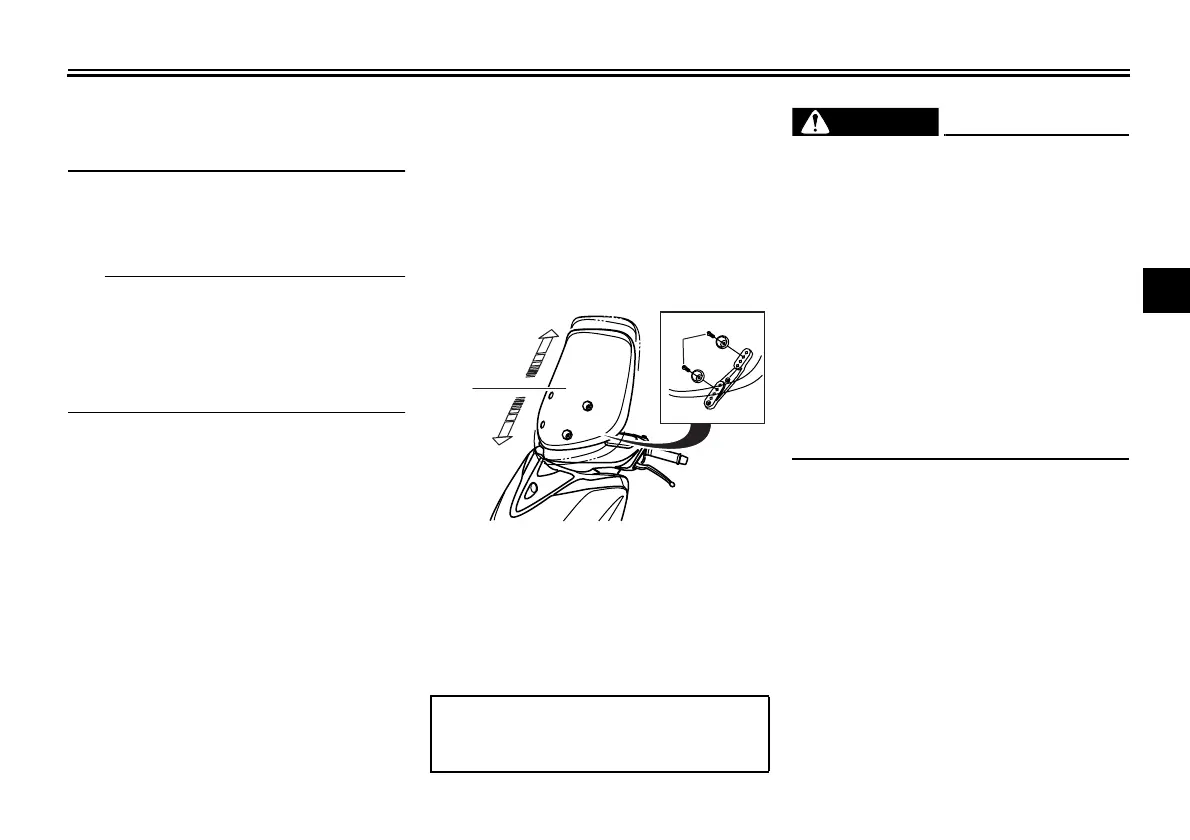

Windshield
To suit the rider’s preference, the wind-
shield height can be changed to one of
four positions.
To adjust the windshield height
1. Remove the bolts on each side of
the windshield.
2. Move the windshield to the desired
position.
3. Install the bolts and tighten them to
the specified torque.
WARNING
EWA10920
After adjusting the windshield:
● Securely tighten the windshield
bolts.
● Turn the handlebar to the left
and right to make sure that the
handlebar is not obstructed and
that the windshield does not
contact any other parts.
● Open the throttle and make sure
that the throttle grip returns
properly when released, other-
wise an accident or injury could
result.
1. Windshield
2. Bolt
Tightening torque:
Windshield bolt:
4 Nm (0.4 m·kgf, 2.9 ft·lbf)
ZAUM0797
1
2
U5B2E1E0.book Page 12 Tuesday, July 22, 2008 2:49 PM
