PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
EAU18712
Removing and installing cowl-
ings and panels
The cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time
a cowling or panel needs to be re-
moved and installed.
EAUM2221

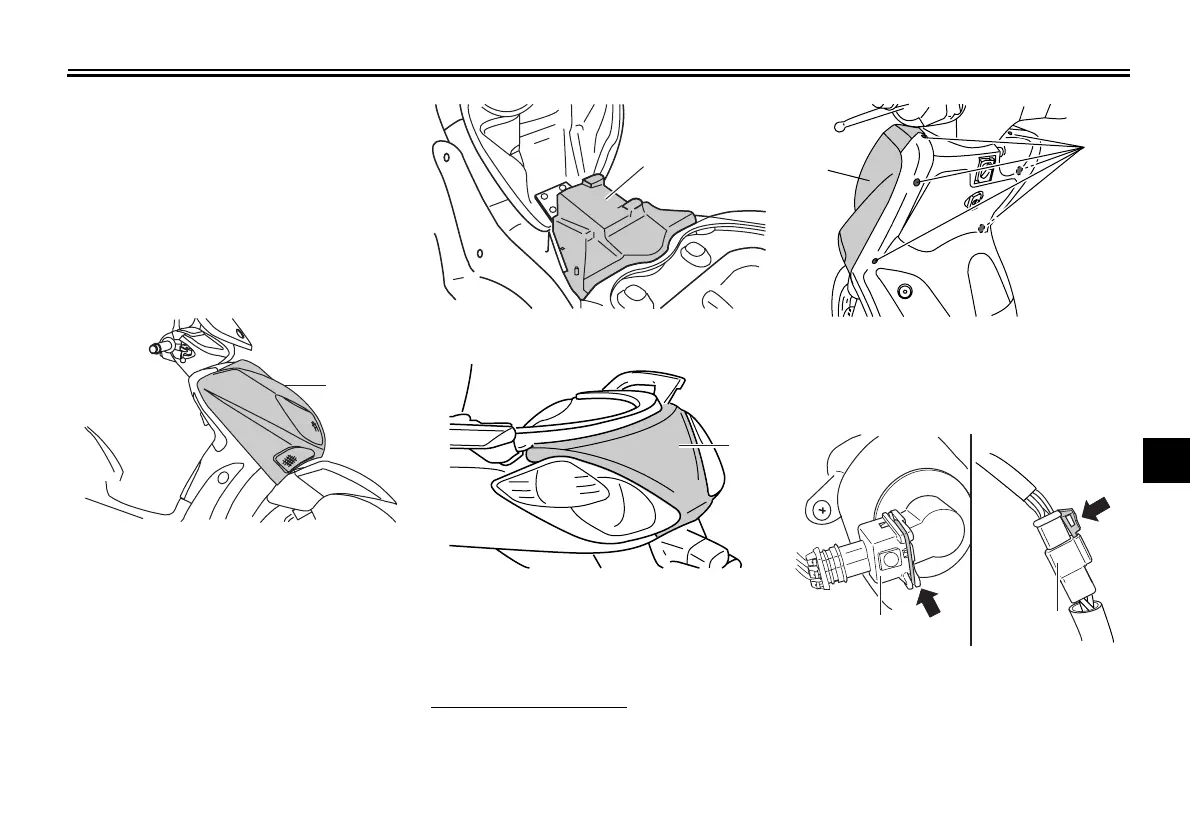

Cowling A
To remove the cowling
1. Remove the cowling screws.
2. Disconnect the headlight coupler
and the turn signal couplers.
3. Pull the cowling off.
1. Cowling A
ZAUM0652
1
1. Panel A
1. Panel B
ZAUM0653
1
ZAUM0654
1
1. Cowling A
2. Screw
1. Turn signal light lead coupler
2. Headlight coupler
ZAUM0655
2
1
1
2
ZAUM0428
U5B2E1E0.book Page 6 Tuesday, July 22, 2008 2:49 PM
