PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
6
EAU22390
Checking the front and rear
brake pads
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22420
Front brake pads
Each front brake pad is provided with a
wear indicator groove, which allows
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator groove. If a brake
pad has worn to the point that the wear
indicator groove has almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU22500
Rear brake pads
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 0.8 mm (0.03 in),
have a Yamaha dealer replace the
brake pads as a set.
EAU22580
Checking the brake fluid level
Front brake
Rear brake
Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.

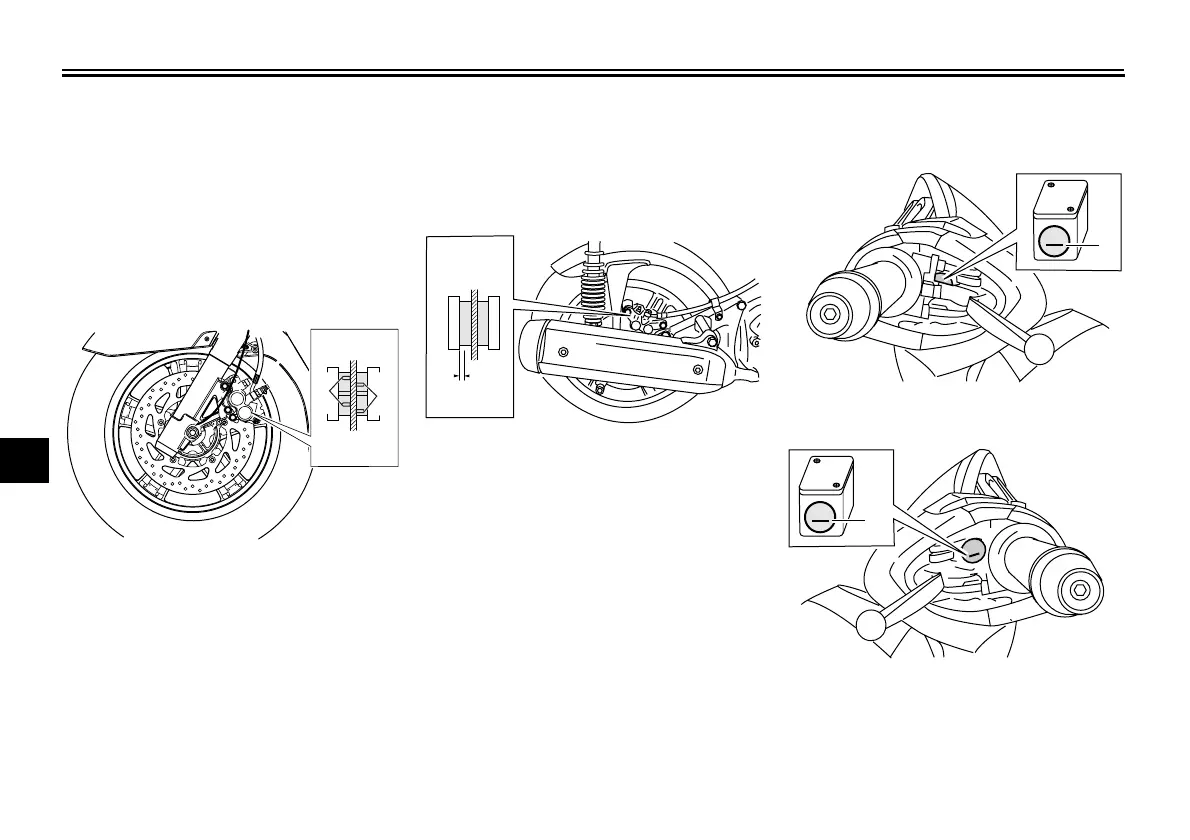

1. Brake pad wear indicator groove
ZAUM0663
1
1
1. Lining thickness
ZAUM0664
1
1. Minimum level mark
1. Minimum level mark
ZAUM0665
MIN
1
ZAUM0666
MIN
1
MIN
U5B2E1E0.book Page 17 Tuesday, July 22, 2008 2:49 PM
