PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
6
EAUT1261
Replacing a front turn signal
light bulb
NOTICE
ECA10670
It is advisable to have a Yamaha
dealer perform this job.
1. Place the scooter on the center-
stand.
2. Remove cowling A. (See page
6-6.)
3. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
4. Remove the burnt out bulb by
pushing it in and turning it counter-
clockwise.
5. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
6. Install the socket (together with the
bulb) by turning it clockwise.
7. Install the cowling.
EAUM2191
Replacing a tail/brake light
bulb or a rear turn signal light
bulb
1. Place the vehicle on the center-
stand.
2. Remove panel B. (See page 6-6.)
3. Remove the tail/brake light unit by
removing the screws.
4. Remove the socket (together with
the bulb) by turning it counter-
clockwise.

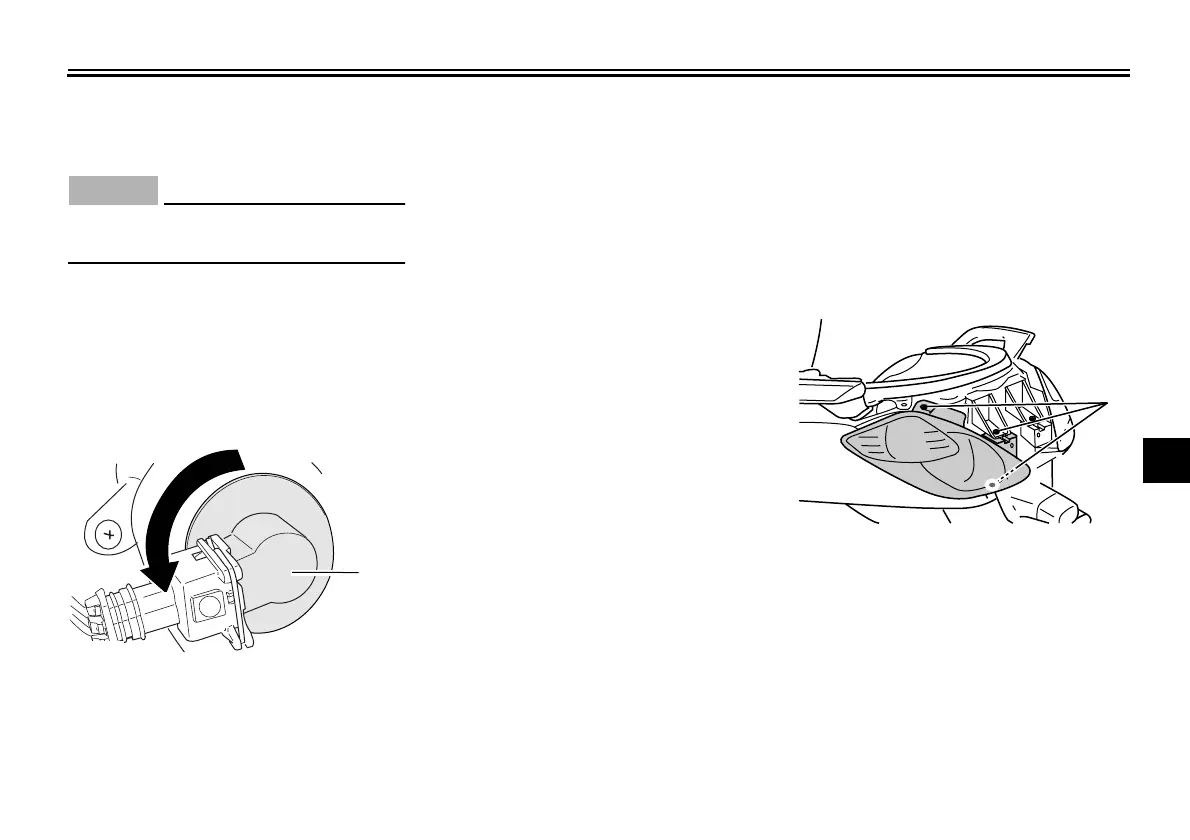

1. Turn signal light bulb socket
1
ZAUM0465
1. Screw
ZAUM0679
1
