CLUTCH
5-37

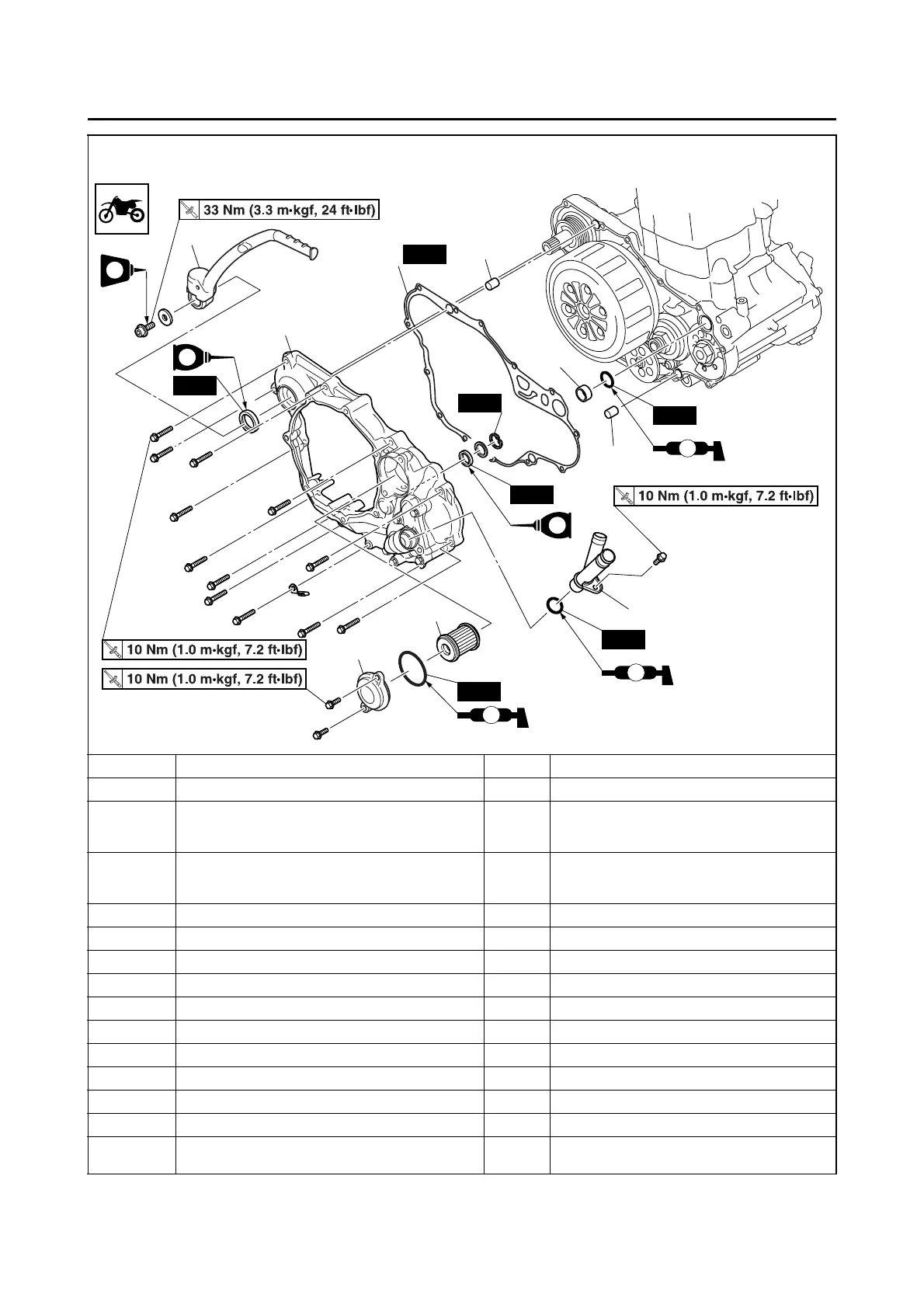

Removing the right crankcase cover
Order Part name Q’ty Remarks
Right engine guard Refer to “ENGINE REMOVAL” on page 5-1.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-15.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-8.
Brake pedal Refer to “ENGINE REMOVAL” on page 5-1.
Clutch cover Refer to “CLUTCH” on page 5-35.
1 Oil filter element cover 1
2 Oil filter element 1
3 Radiator pipe 2 1
4 Kickstarter lever 1
5 Right crankcase cover 1
6 Gaskets 1
7 Dowel pin 2
8Collar 1
For installation, reverse the removal proce-
dure.
T
.R
.
E
E
LS
New
New
6
7
2
5
4
1
7
8
New
3
LS
New
New
LS
New
New
LT
