KICKSTATER
5-44
EAS1SM1248
KICKSTATER

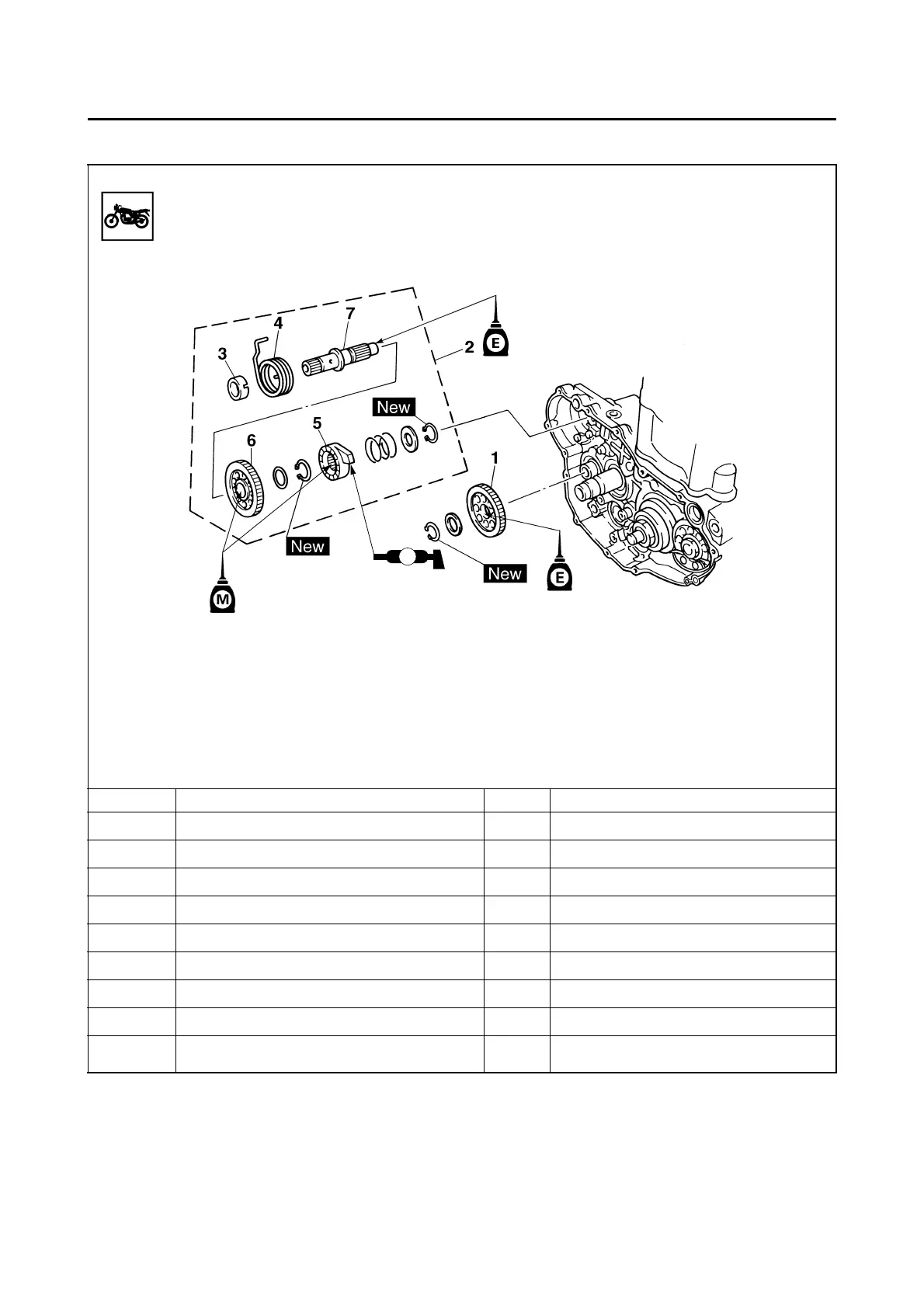

Removing the kick shaft
Order
Part name
Q’ty
Remarks
Primary driven gear
Refer to “CLUTCH” on page 5-35.
1
Kick i
dle gear
1
2
Kick shaft
assembly
1
3
Spring guide
1
4
Torsi
on spring
1
5
Ratchet wheel
1
6
Kick gear
1
7
Kick shaft
1
For installation, reverse th
e
removal proce-
dure.
M
236
238
