Outboard Rigging Guide - 2001 Morse Universal Dual Cable
Steering Bracket Kit Installation
MORSE UNIVERSAL DUAL CABLE
STEERING BRACKET KIT INSTALLATION
(ABA-42110-00-00)
Please completely read and understand these
installation instructions (prior to installation) to
avoid damage to the outboard motor, boat or
accessory.
Kit Includes:
1 Steering Cable Mounting Bracket
1 Steering Cable Support Tube
2 Adjustment Nut
2 Locking Tab Washer
1 Bushing
1 Seal
1 Cable Connector
2 Self-locking Nut, 3/8"
3 Flat Washer, 3/8"
4 Mounting Bolt

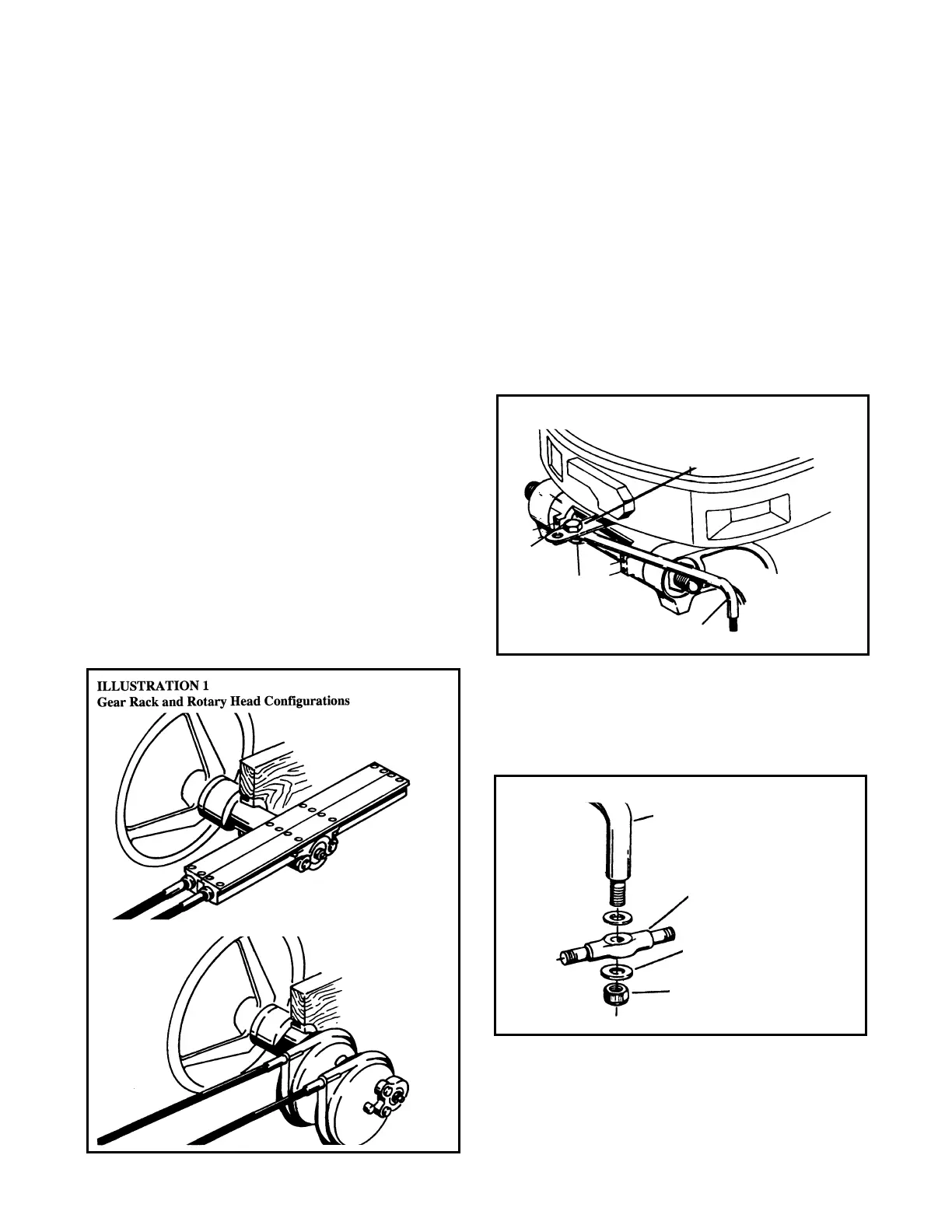

NOTE: Both gear racks or rotary steering heads
must be installed so both steering cables will be
routed together on the same side of the boat and
will push-pull together. (See Illus. 1)
Steering Arm Installation
1. Install the steering arm to the motor tiller arm
using the inner (rearmost) bolt hole, and
torque to specification. Be sure to use the
lock nut, as shown in the rigging specifica-
tions. (See Illus. 2)
2. Assemble the cable connector onto the steer-
ing arm, as shown in Illustration 3.
NOTE: DO NOT tighten installation together at
this time.
*Flat washers and lock nut come with steering
arm.
LOCK
NUT
BOLT
HEAD
FLAT WASHERS *
LOCK NUT*
STEERING ARM
ILLUSTRATION 2
ILLUSTRATION 3
STEERING ARM
CABLE CONNECTOR
PIVOT BOLT AND
BALL JOINT CONNECTION
To Next Page
