Outboard Rigging Guide - 2001

RIGGING KITS

For model year 2001, the rigging kits have not changed. 40hp~250hp 4-Stroke and 2-Stroke still use the

same rigging kits. 2-Stroke 115hp and up have the option of a 2.8-gallon or 5.0-gallon remote oil tank.

You need to specify which oil tank when ordering. These kits may be ordered at anytime from the sales

staff. The rigging kits are as follows:

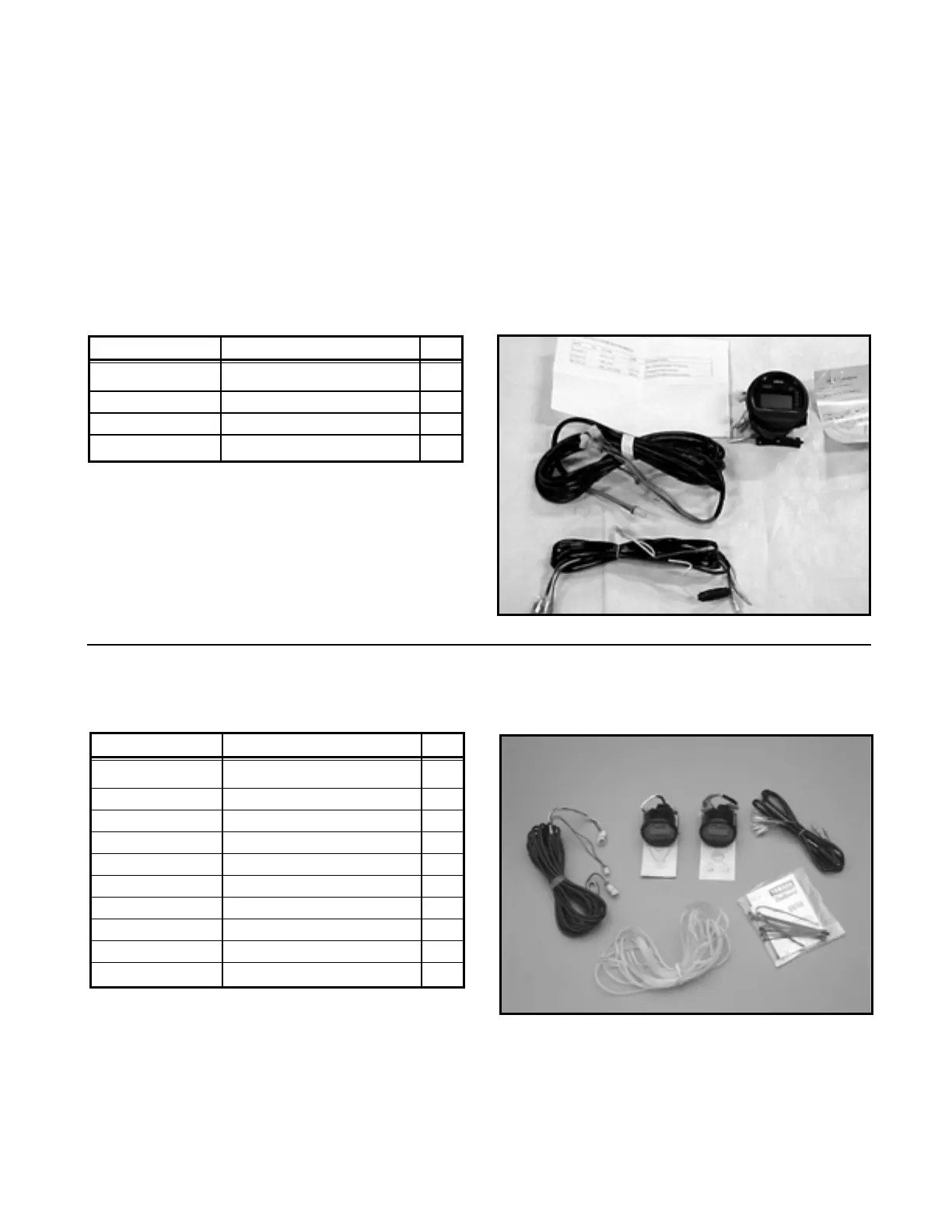

Multi-Function LCD Tachometer Kit or Single Gauge Kit (6YR-W0035-15-00)

For use on 2-Stroke and 4-Stroke Engines

Multi-Function LCD Tachometer/Speedometer Kit or 2 Gauge Kit (6YR-W0035-47-00)

For use on 2-Stroke and 4-Stroke Engines

Part Number Part Name Qty.

6R3-83621-00-00 Mark, 1 1

64D-82553-70-00 Trim/Oil, Harness 23 ft. 1

6Y5-83500-T2-00 Meter, Ass’y1

6Y5-83553-00-00 Gauge, Harness 1 Fuse 1

Part Number Part Name Qty.

6Y5-83553-M0-00 Gauge, Harness 2 Fuse 1

6Y5-82117-00-00 Wire, Lead 1

6R3-83621-00-00 Mark, 1 1

64D-82553-80-00 Trim/Oil, Harness 26.2 ft. 1

6Y5-83500-T2-00 Meter, Ass’y1

6Y5-83570-S5-00 Speedometer Ass’y1

6Y5-83557-10-00 Tube 1

90465-11M10-00 Clamp 2

90465-13M18-00 Clamp 10

61A-28107-14-00 Rigging Manual l
