Outboard Rigging Guide - 2001 F25 Tiller Handle Kit

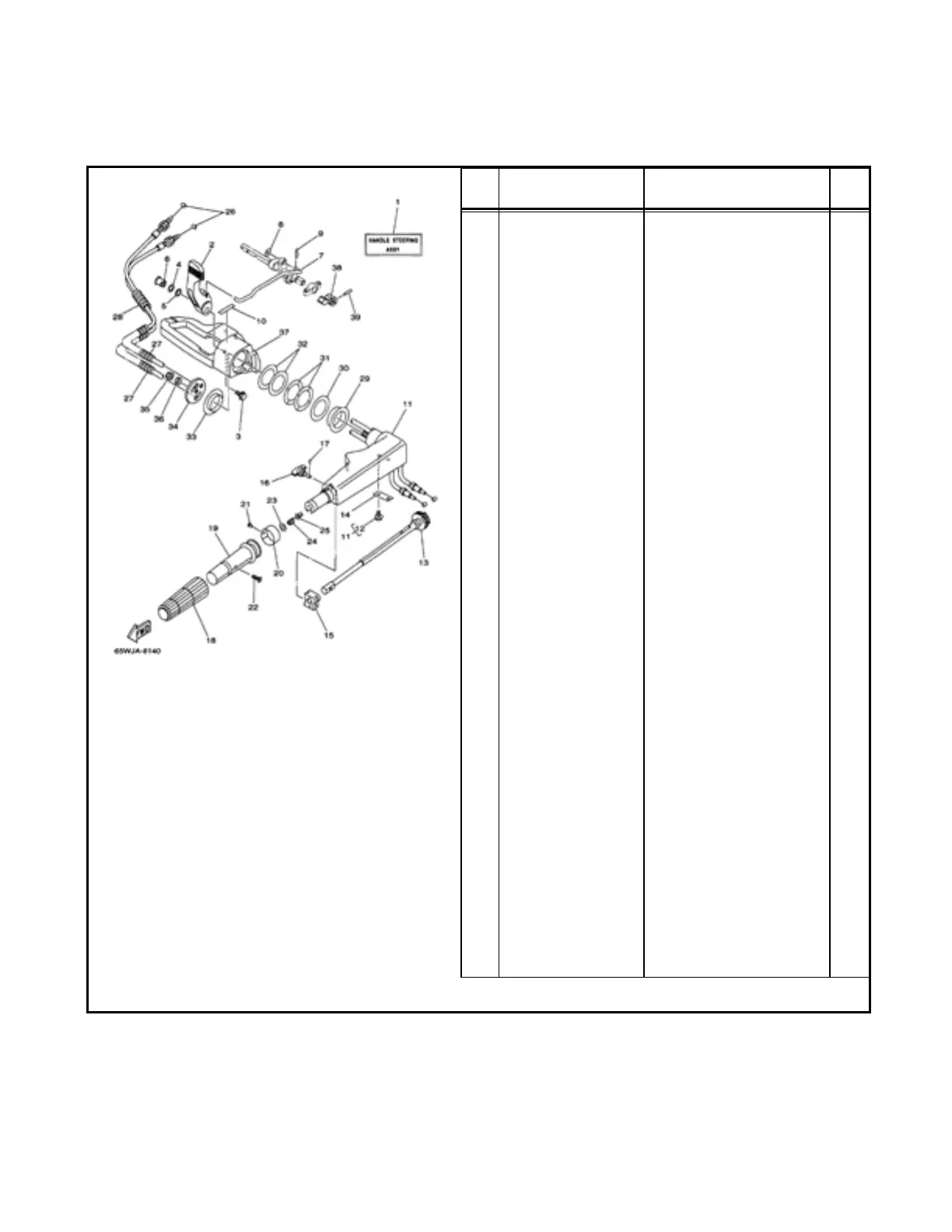

F25 TILLER HANDLE KIT (65W-W0084-01-4D)
REF
NO PART NUMBER DESCRIPTION QTY.
1 65W-W0084-01-4D Handle Steering Ass’y1
2 65W-44111-00-00 Handle, Gear Shift 1
3 95895-06016-00 Bolt, Flane 1
4 90206-f12M00-00 Washer, Wave 1
5 90201-12M34-00 Washer, Plate 1
6 65W-42123-00-00 Bolt, Handle Joint 1
7 65W-44124-00-00 Link, Shift Rod 1
8 92990-06200-00 Washer 1
9 90468-18008-00 Clip 1
10 6E0-44191-11-00 Indicator, Shift 1
11 65W-42101-00-4D Handle, Steering 1
12 90109-06M86-00 • Bolt 2
13 65W-42138-00-00 Lever, Throttle 1
14 65W-42159-00-00 Stay 1
15 6G1-42126-00-00 Friction, Steering Handle
Grip 1
16 65W-42125-00-00 Bolt, Friction Adjusting 1
17 91490-16010-00 Pin, Cotter 1
18 6F6-42177-A0-00 Rubber, Handle 1
19 664-42119-00-00 Grip, Steering Handle 1
20 6H2-42137-00-00 Indicator, Throttle 1
6J0-42137-00-00 Indicator, Throttle 1
21 90269-02M09-00 Rivet 1
22 90149-05M13-00 Screw 1
23 92903-10600-00 Washer, Plate 1
24 90501-23215-00 Spring, Compression 1
25 90386-08032-00 Bush 1
26 65W-26311-00-00 Cable, Throttle 1 2
27 90446-10M86-00 Hose 1
28 90446-14M88-00 Hose 1
29 90386-40MA0-00 Bush 1
30 90201-43M00-00 Washer, Plate 1
31 90206-43M22-00 Washer, Wave 2
32 90202-43M57-00 Washer, Plate 2
33 90386-40M99-00 Bush 1
34 65W-42131-00-00 Cover, Handle Steering 1
35 90185-08057-00 Nut, Self-locking 1
36 95380-08600-00 Nut 1
37 65W-42121-00-4D Bracket 1
38 65W-44173-00-00 Lever, Shift Control 1
39 91690-30320-00 Pin, Spring 1
• Component parts
