5-1
Outboard Rigging Guide - 2001

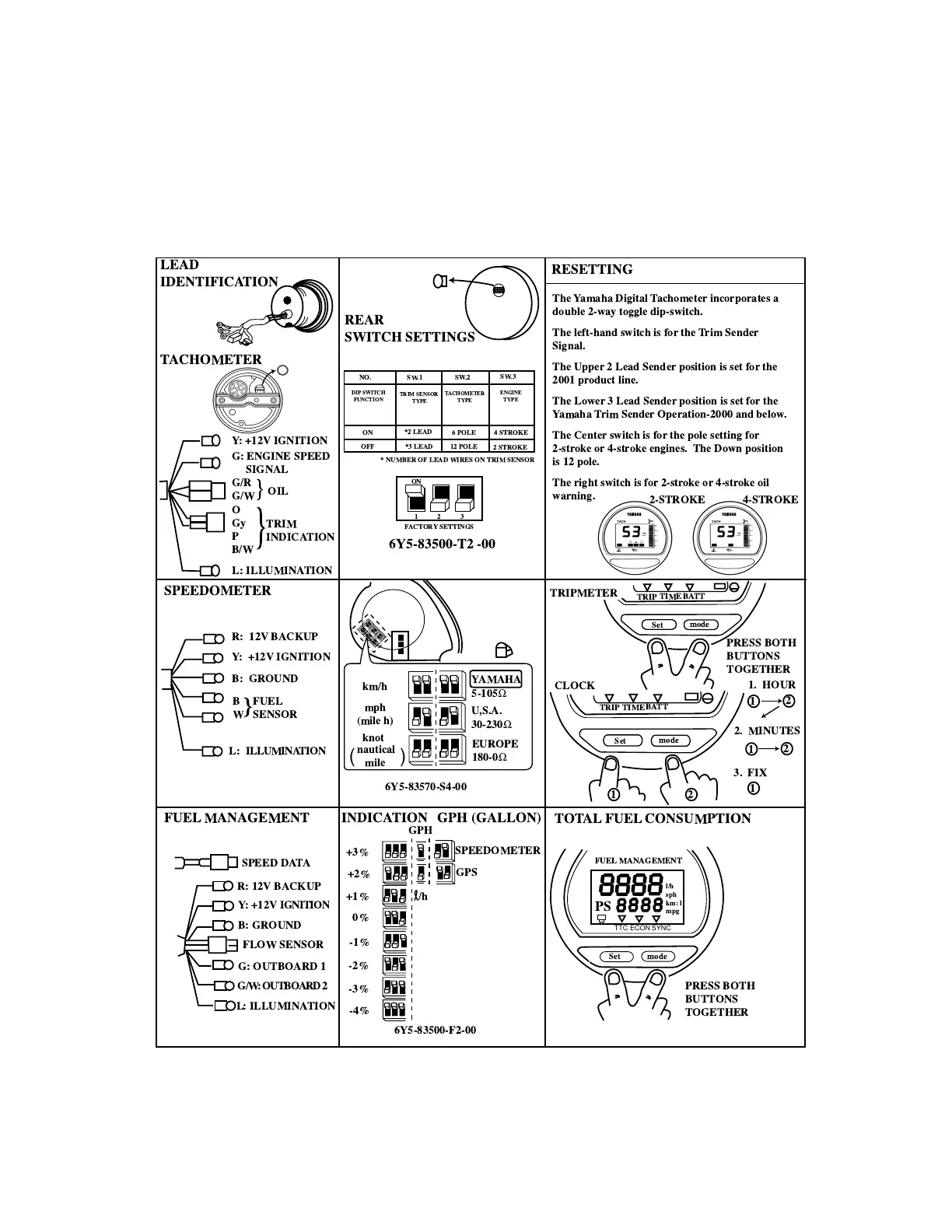

DIGITAL INSTRUMENTS
Self-check Function: When the main switch is turned on, all indicating segments are displayed and the
warning indicator blinks for a few seconds. Only dual engines with a dual key switch panel have the
alarm self-check with three beeps
NOTE: When testing the 2000 tachometer light, the power must be supplied to the Yellow (ignition ON)
and Blue light at the same time.
LEAD
IDENTIFICATION
REAR
SWITCH SETTINGS
RESETTING
TACHOMETER
SPEEDOMETER
R: 12V BACKUP
Y: +12V IGNITION
B: GROUND
B
W
}
FUEL
SENSOR
L: ILLUMINATION
FUEL MANAGEMENT
SPEED DATA
R: 12V BACKUP
Y: +12V IGNITION
B: GROUND
FLOW SENSOR
G: OUTBOARD 1
G/W : OUTBOARD 2
L: ILLUMINATION
6Y5-83500-T2 -00
NO.
SW.1
SW.2
SW.3
DIP SWITCH
FUNCTION
TRIM SENSOR
TYPE
TACHOMETER
TYPE
ENGINE
TYPE
ON
*2 LEAD
*3 LEAD
6 POLE
12 POLE
4 STROKE
2 STROKE
OFF
* NUMBER OF LEAD WIRES ON TRIM SENSOR
1
2
3
FACTORYSETTINGS
ON
km/h
mph
(mile h)
knot
nautical
mile
(
)
5-105
Ω
U,S.A.
30-230
Ω
EUROPE
180-0
Ω
6Y5-83570-S4-00
YAMAHA
INDICATION
GPH (GALLON)
SPEEDOMETER
GPS
GPH
+3%
+2%
+1%
0%
-1%
-2%
-3%
-4%
/h
6Y5-83500-F2-00
PRESS BOTH
BUTTONS
TOGETHER
Set
mode
TOTAL FUEL CONSUMPTION
FUEL MANAGEMENT
TTC
ECON
SYNC
l/h
sph
km: l
mpg
TRIPMETER
CLOCK
PRESS BOTH
BUTTONS
TOGETHER
2. MINUTES
3. FIX
1. HOUR
1
1
2
2
1
1
2
Set
mode
Set
mode
TRIP
TIME
BATT
TRIP
TIME
BATT
PS
Y: +12V IGNITION
G: ENGINE SPEED
SIGNAL
G/R
G/W
OIL
}
}
O
Gy
P
B/W
TRIM
INDICATION
L: ILLUMINATION
2-STROKE
4-STROKE
The Yamaha Digital Tachometer incorporates a
double 2-way toggle dip-switch.
The left-hand switch is for the Trim Sender
Signal.
The Upper 2 Lead Sender position is set for the
2001 product line.
The Lower 3 Lead Sender position is set for the
Yamaha Trim Sender Operation-2000 and below.
The Center switch is for the pole setting for
2-stroke or 4-stroke engines. The Down position
is 12 pole.
The right switch is for 2-stroke or 4-stroke oil
warning.
