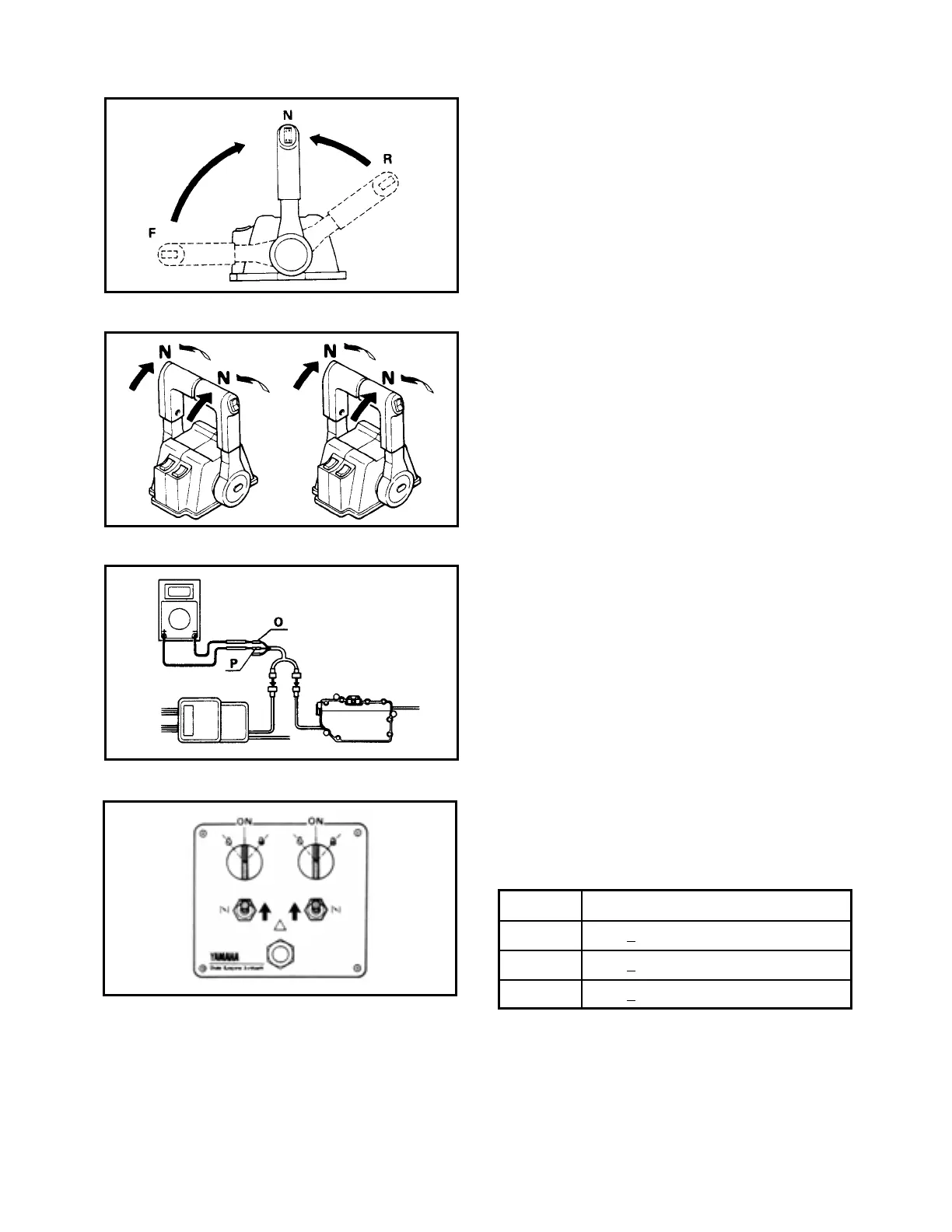

3) Place the remote control lever in neutral
and turn the main switch to start to
check that the engine is started.
In case the engine is not started, refer
to the SHIFT VOLTAGE ADJUST-
MENT. Page 21.
SHIFT VOLTAGE ADJUSTMENT
In case the engine is started at either forward
or reverse shift through the cable lengths are
within the specifications, check the shift volt-
age by using the following procedure.
1) Connect the throttle sensor adjusting
lead, special tool No. YB-06443 in
between the two sensors on the junc-
tion unit and the actuator.
2) Turn the main switch to ON and check
the voltage between the sensors
according to the following specifications
with the remote control lever at neutral,
forward and reverse positions.
If any of the voltage is out of specifications,
adjust the location of the shift rack in the junc-
tion unit.
Shift Specifications in V
Neutral 2.45 + 0.25
Forward 3.95 + 0.25
Reverse 0.95 +
0.25
10A-26
